BNC Tee-Type Adaptor (M-M-F), DC to 4 GHz

Description

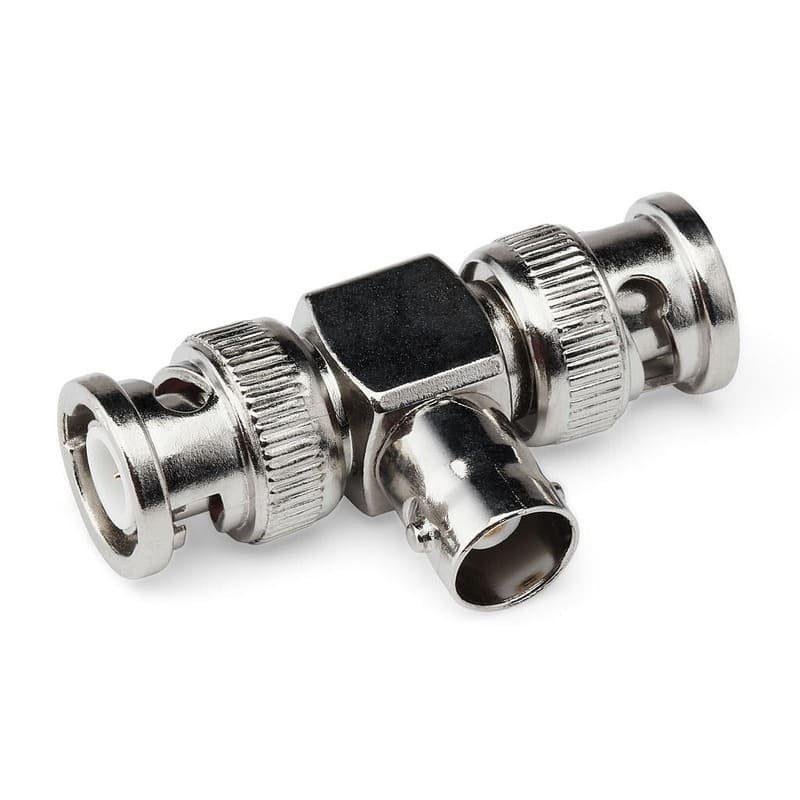

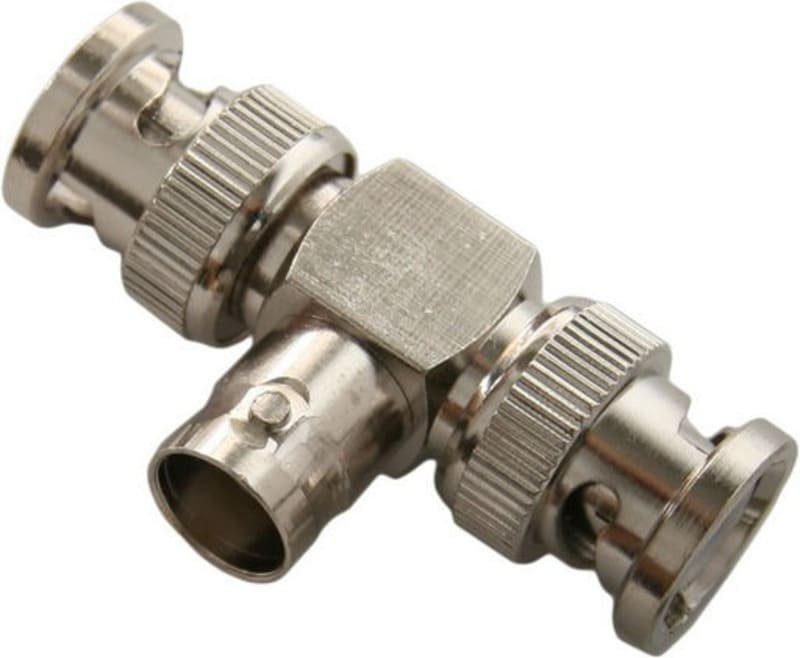

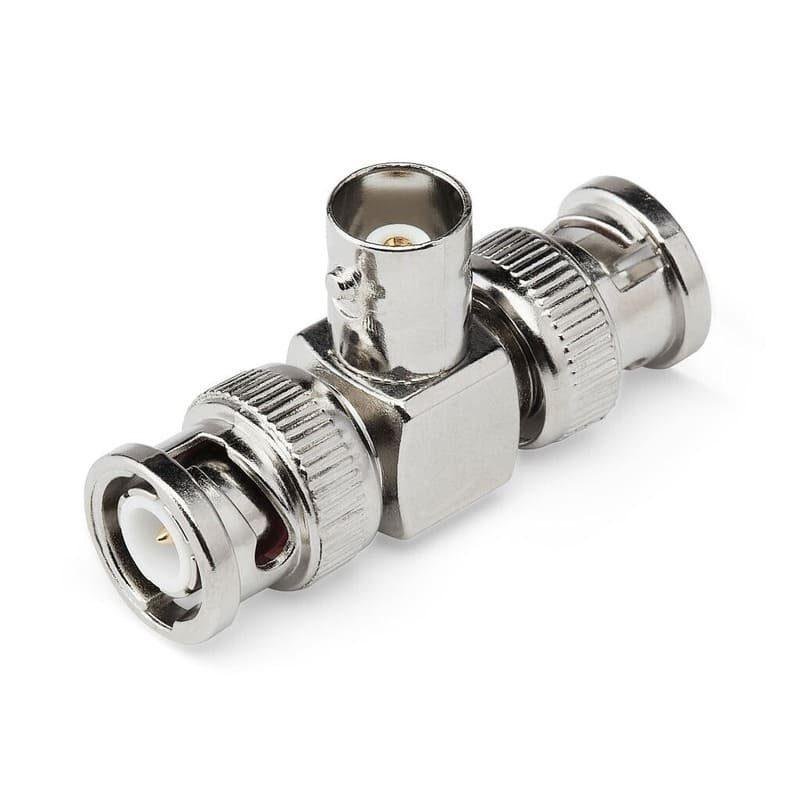

The BNC Tee-Type Adapter (Male-Male-Female) is a precision RF component designed to branch a signal or create a series connection between two male-terminated components and one female-terminated component. Precision-machined to maintain signal integrity up to 4 GHz, this adapter is ideal for high-performance applications such as digital clock distribution, RF signal monitoring, and high-frequency data acquisition.

The adapter features a Nickel-Plated Brass body for superior durability and shielding, with Gold-Plated center contacts on all ports to ensure maximum signal conductivity and minimal contact resistance. The configuration includes two BNC Male plugs with classic bayonet “quick-lock” coupling and one BNC Female jack. This specific M-M-F layout is frequently used to interconnect two female-mounted instruments while providing a monitoring port for a standard BNC male-terminated cable, or to bridge two separate cable segments onto a single instrument input.

Key Technical Advantages

• High-Frequency Stability: Rated for operation from DC to 4 GHz, providing superior VSWR performance and lower insertion loss compared to standard commercial-grade BNC adapters.

• Specialized M-M-F Layout: Eliminates the need for multiple gender changers when bridging two female ports to a male cable, streamlining high-density test manifolds.

• Low Signal Distortion: Utilizes high-grade PTFE (Teflon) insulators to maintain a consistent 50 Ohm impedance, critical for preventing signal reflections in high-speed digital systems.

• Rugged Construction: The nickel-plated brass exterior offers excellent corrosion resistance and mechanical resilience for heavy-duty lab and field use.

• Gold-Plated Signal Path: Precision gold plating on all center pins and sockets ensures reliable, oxidation-free electrical contact through at least 500 mating cycles.

Key Features

• Adapter Type: Tee-Type (T-Shape).

• Interface: 2x BNC Male (Plug) and 1x BNC Female (Jack).

• Impedance: 50 Ohm.

• Body Material: Brass (Nickel Plated).

• Contact Material: Phosphor Bronze or Brass (Gold Plated).

• Insulator: PTFE (Teflon).

• Common Applications: Multi-instrument synchronization, RF signal splitting, oscilloscope “bridge” measurements, and high-frequency telecommunications testing.

🔹 Applications:

• RF signal splitting and distribution
• CCTV and video signal branching
• Lab and instrumentation setups
• RF test and measurement systems
• Broadcast signal routing
• Communication equipment testing
