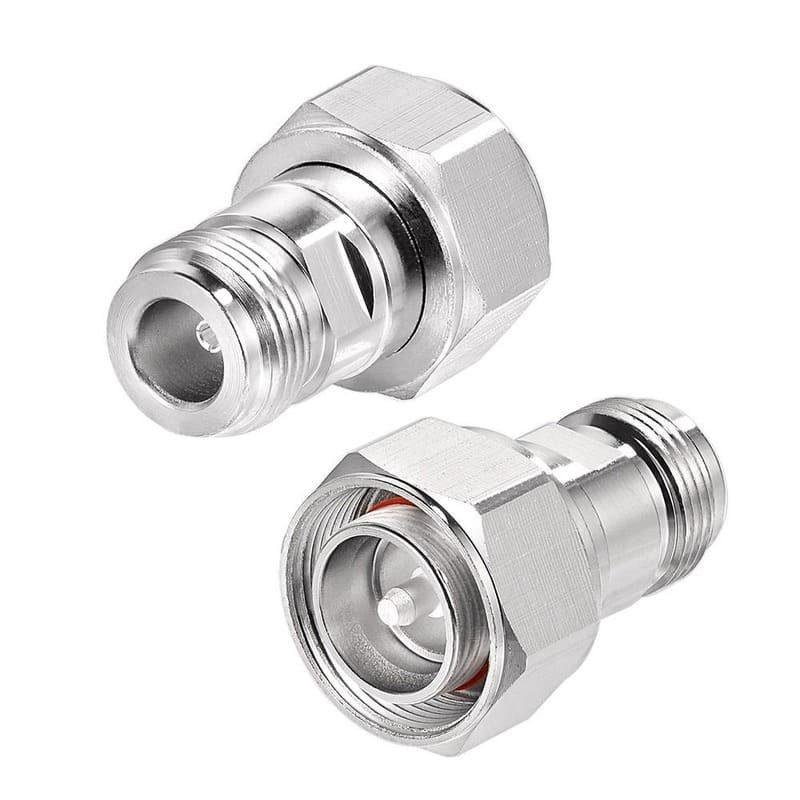

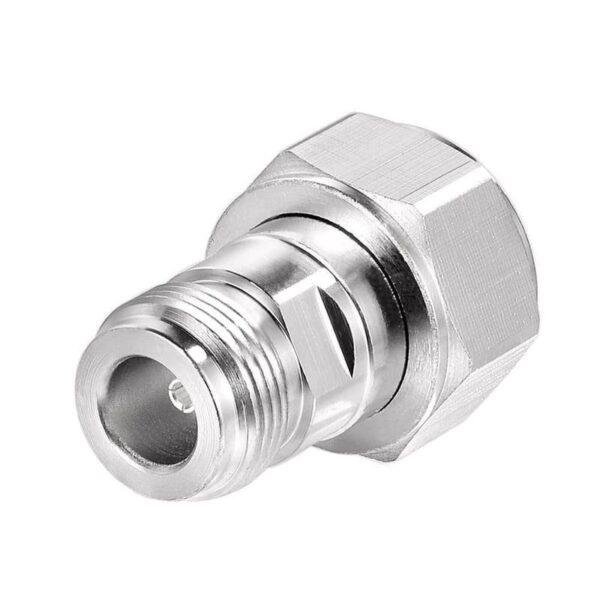

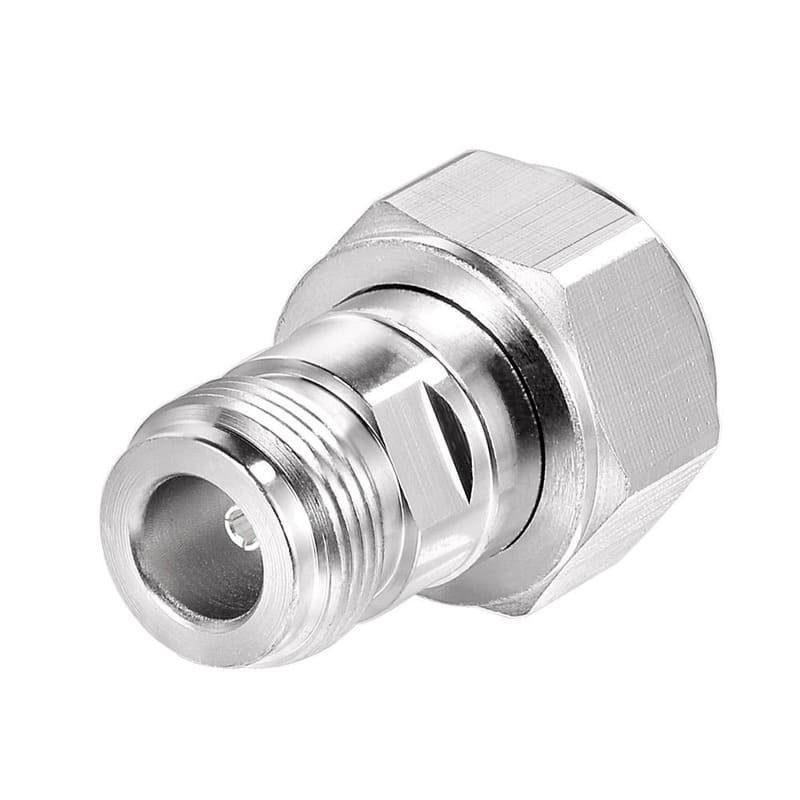

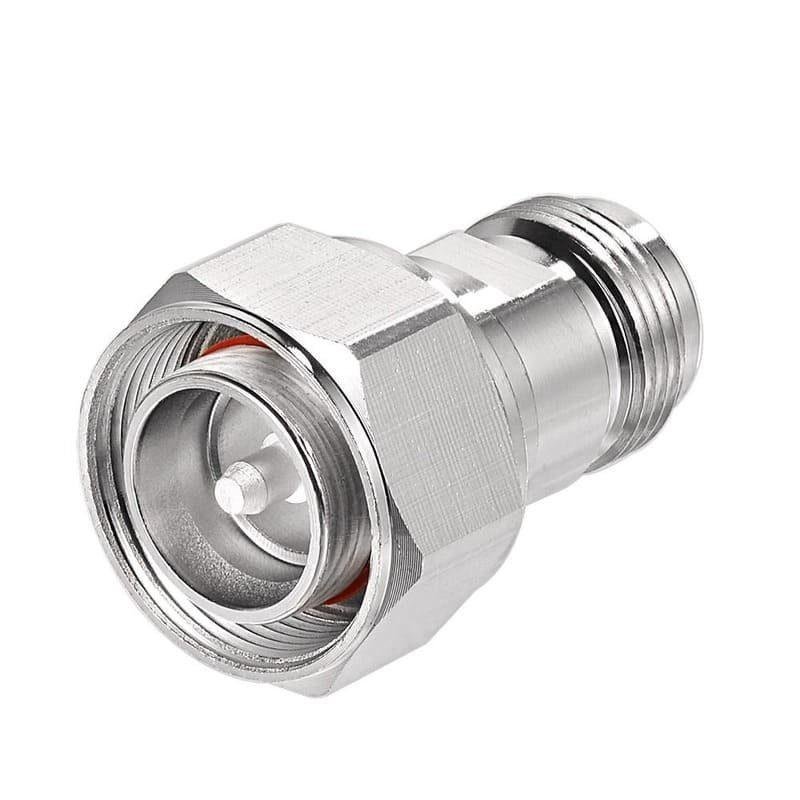

Mini DIN Male to N Female Adapter

Description

The Mini DIN (4.3-10) Male to N Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between two prominent connector standards. It features a 4.3-10 Plug (Male) on one side, representing the modernized, space-saving “Mini DIN” standard utilized in 5G and DAS deployments, and an N-Type Jack (Female) on the other, featuring the standard threaded interface used widely in professional wireless infrastructure and laboratory environments.

This adapter is indispensable for telecommunications engineers who need to connect N-Type male cable assemblies or test instruments to 4.3-10 female equipment ports found on the latest Remote Radio Heads (RRH) and signal boosters. The precision-machined design ensures a constant 50 Ohm impedance and is specifically optimized to maintain low Passive Intermodulation (PIM) levels, essential for signal purity in multi-carrier networks. Constructed with a heavy-duty tri-metal (white bronze) plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Low-PIM Optimization: Specifically engineered to minimize passive intermodulation, ensuring clean signal transmission in high-speed 4G LTE and 5G environments.

• Modern Interface Integration: Enables seamless interoperability between the latest 4.3-10 (Mini DIN) hardware and standard N-Type professional equipment.

• Vibration-Proof Threaded Mating: Both interfaces utilize secure threaded coupling, ensuring a stable connection that resists loosening under physical shock or extreme environmental conditions.

• Superior RF Shielding: The solid brass construction and tri-metal plating provide an exceptional ground path, protecting against EMI and RFI interference across high-frequency bands.

• Maximum Conductivity: High-purity silver plating on the internal center contact pin and socket ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• 4.3-10 Male to N Female Interface: Consists of a 4.3-10 Plug (with pin and hex nut) and an N-Type Jack (with socket and external threads).

• Tri-Metal / White Bronze Plating: Offers superior electrical conductivity and a non-magnetic finish that significantly reduces PIM compared to standard nickel plating.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in professional cellular and test environments.

• Precision 50 Ohm Match: Specifically engineered to match standard communication and microwave test instrumentation.

Technical Summary
