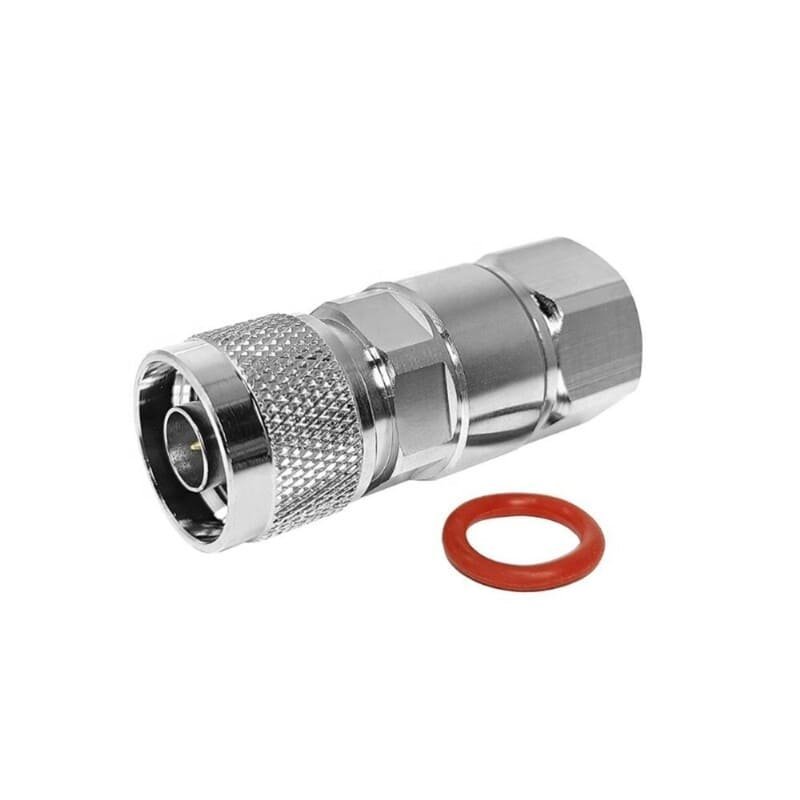

N M CLAMP for 1/2″ Super Flexible Cable

Description

The N-Type connector is the premier choice for infrastructure-grade RF applications, valued for its high power handling and environmental durability. This male (plug) variant is specialized for the 1/2″ Super Flexible (Superflex) Cable class. Unlike standard 1/2″ feeder cables that use annular corrugation, superflex utilizes a deep helical corrugation, allowing for an incredibly tight bend radius. This connector is specifically designed to accommodate that helical geometry, ensuring a secure, high-integrity transition even in cramped equipment racks and cabinet interiors.

This connector utilizes a professional mechanical clamp termination system. The compression mechanism is calibrated to grip the helical outer conductor, providing a high-strength, airtight electrical bond that maintains superior Passive Intermodulation (PIM) performance. Manufactured with a heavy-duty tri-metal or nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 18 GHz. The integrated O-ring gaskets provide an IP68-rated moisture barrier, ensuring long-term reliability in both indoor and outdoor tactical environments.

Key Technical Advantages

• Helical Corrugation Match: Specifically engineered to grip the deep helical threads of 1/2″ superflex cables, providing superior pull-off strength and electrical stability during cable movement.

• Low-PIM Design: The precision-machined clamp interface minimizes non-linearities, reducing passive intermodulation—a critical requirement for modern 5G, LTE, and multi-carrier wireless systems.

• Field-Installable Design: The mechanical compression system allows for high-integrity assembly using standard wrenches, facilitating efficient on-site jumper fabrication without specialized hydraulic tools.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded coupling ensures a secure mechanical lock, maintaining signal stability in high-wind and high-vibration outdoor environments.

• Weather-Resistant Sealing: Features multiple integrated gaskets and O-rings to provide a complete environmental seal, protecting the cable dielectric from moisture ingress and corrosion in exposed installations.

Key Features

• Interface Type: N-Type Male (Plug) with standard 5/8-24 threaded coupling.

• Termination Method: Compression Clamp (Outer Conductor) / Solder or Captive (Center Pin).

• Cable Compatibility: Optimized for 1/2″ Super Flexible Cables (FSJ4-50B, SCF12-50J, etc.).

• Premium Construction: Features a tri-metal plated brass body and high-performance PTFE dielectric.

• Common Application: Tight-access jumper assemblies, Distributed Antenna Systems (DAS), small cell networks, and tactical mobile units.

Technical Summary
