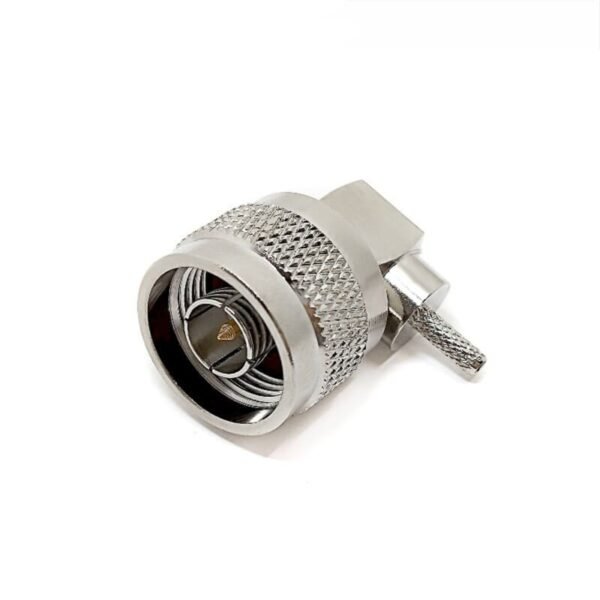

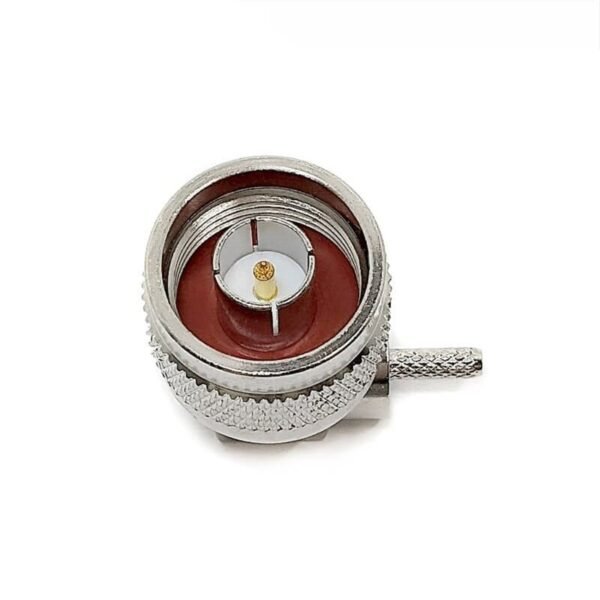

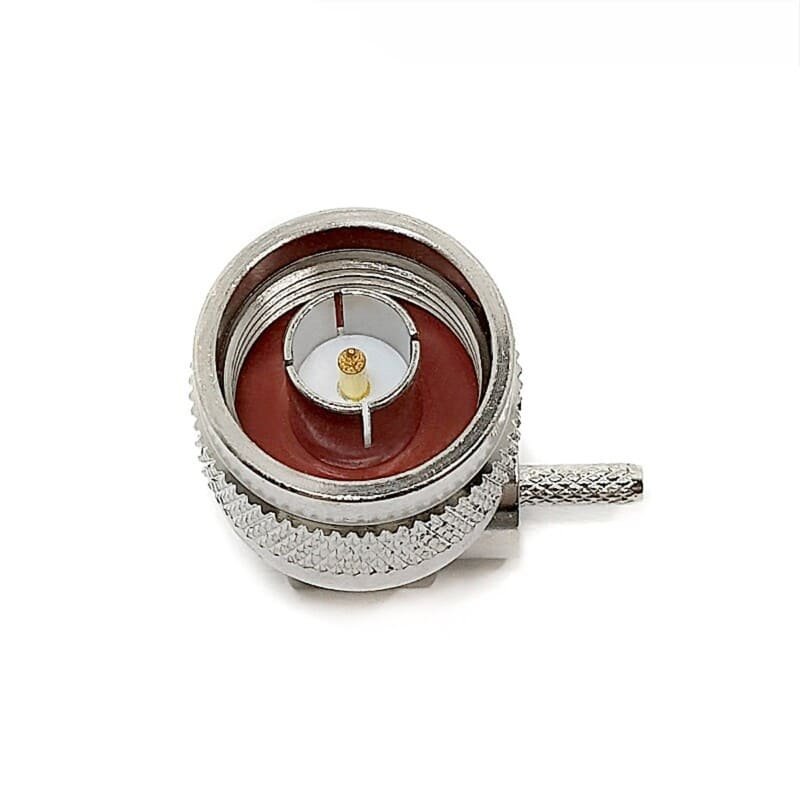

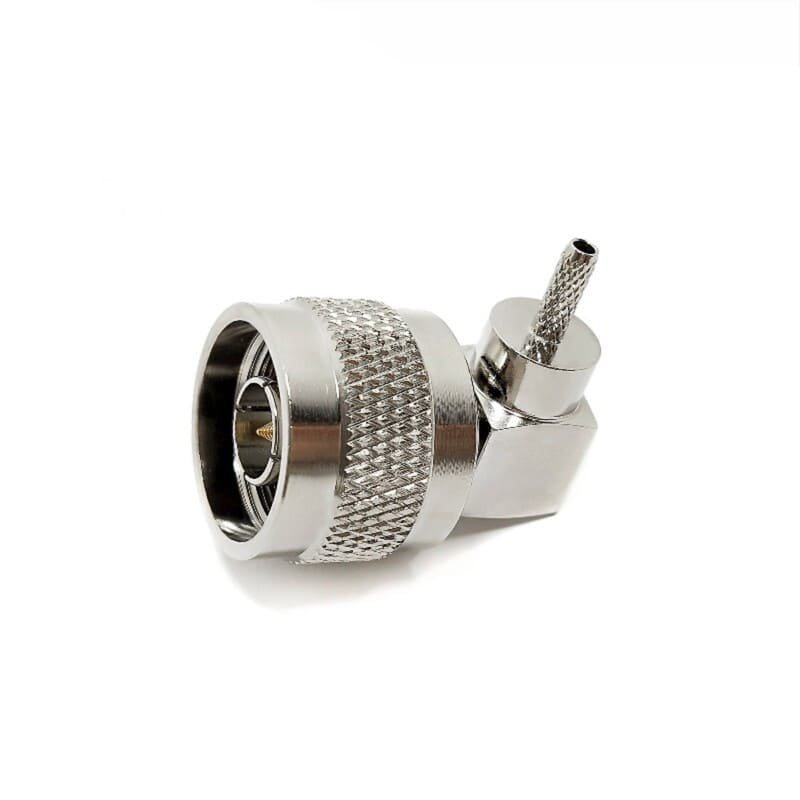

N M RA CRIMP for LMR100/RG174/RG316 Cable

Description

The N-Type connector is favored for its rugged construction and stable electrical characteristics. This Right Angle (RA) variant is specialized for the 2.5mm to 3.0mm (0.100″ – 0.120″) sub-miniature cable class, optimized for high-performance RG316 and LMR100. The 90-degree elbow configuration is essential for tight-clearance applications, allowing for clean cable management without exceeding the minimum bend radius of these thin-gauge cables, which could otherwise lead to signal degradation.

This connector utilizes a standard hex-crimp termination system for the outer conductor. This provides a fast, repeatable, and high-strength mechanical bond that is resistant to pull-off and vibration. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 6 GHz. The center contact is designed for soldering to ensure the highest electrical integrity for the small-diameter center conductor of the cable.

Key Technical Advantages

• Compact 90° Routing: The right-angle design significantly reduces the depth required for connections, making it perfect for small enclosures and high-density interface panels.

• Secure Crimp Termination: The hex-crimp sleeve ensures a robust, 360-degree mechanical grip on the cable braid, providing excellent strain relief and electrical shielding.

• Sub-Miniature Cable Precision: Specifically calibrated for the OD of RG174, RG316, and LMR100, ensuring an optimized transition from the connector interface to the transmission line.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded coupling provides a locked, stable connection that maintains signal continuity even in mobile or high-vibration environments.

• High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and stable signal clarity.

Key Features

• Interface Type: N-Type Male (Plug) Right Angle (90°) with standard 5/8-24 threaded coupling.

• Termination Method: Crimp (Outer Braid) / Solder (Center Pin).

• Cable Compatibility: Optimized for LMR100, RG174, RG316, and equivalent sub-miniature 50-Ohm cables.

• Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.

• Common Application: Wireless IoT modules, GPS receiver units, internal RF jumpers, and tactical radio equipment.

🔹 Applications:

• Compact RF cable routing
• IoT and embedded systems
• Antenna connections
• Wireless communication devices
• Signal routing
• RF assemblies
