N M RA Solder for Semi-rigid .141/RG402 Cable

Description

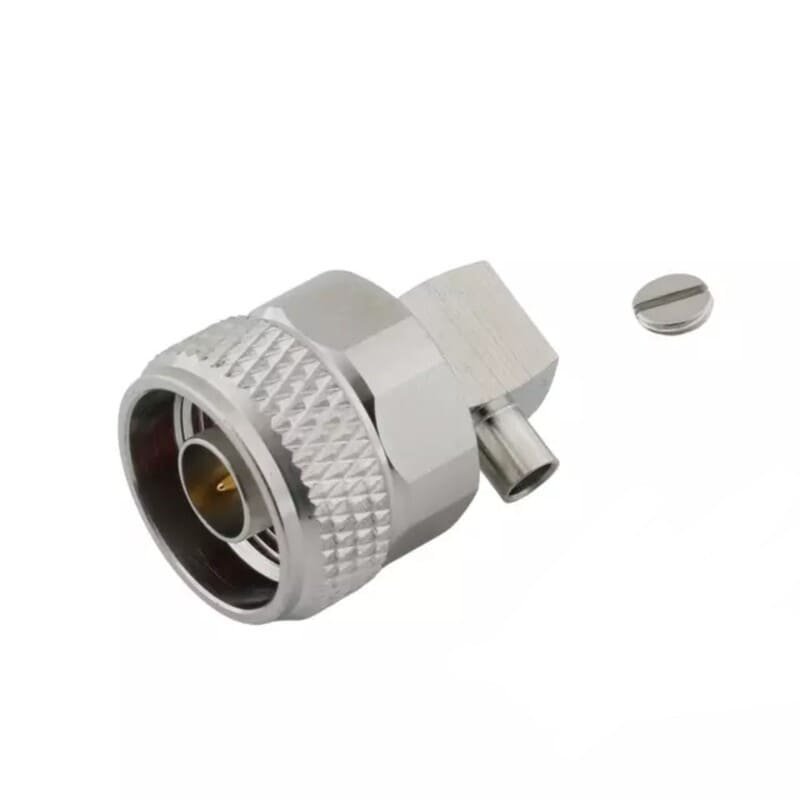

The N-Type connector is prized for its exceptional mechanical strength and microwave-range performance. This Right Angle (RA) variant is specialized for the 3.58mm (0.141″) cable class, specifically optimized for RG402 semi-rigid and conformable cables. The 90-degree configuration is essential for tight-access microwave modules and backplane routing where a standard straight connector would exceed space constraints or compromise the cable’s critical bend radius.

This connector utilizes a direct-solder termination system. The cable’s solid copper outer jacket is soldered directly into the connector’s rear housing, creating a seamless, 360-degree electrical bond. This method eliminates the signal leakage and mechanical instability often associated with crimp or clamp designs on semi-rigid lines. Manufactured with a heavy-duty gold or tri-metal plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and exceptionally low VSWR up to 18 GHz. The solid solder interface ensures maximum shielding effectiveness and phase stability, making it indispensable for precision microwave engineering.

Key Technical Advantages

• Space-Saving 90° Profile: Facilitates clean, high-density cable routing in microwave sub-assemblies and equipment chassis while protecting the integrity of the semi-rigid cable.

• Direct-Solder Body Interface: Provides a permanent 360-degree mechanical and electrical bond, ensuring the lowest possible insertion loss and maximum EMI/RFI shielding.

• RG402 / .141″ Precision Match: Specifically calibrated for the solid copper jacket of .141″ semi-rigid lines, facilitating a high-strength termination that resists torque and vibration.

• Superior Microwave Performance: Engineered to maintain high-grade signal integrity up to 18 GHz, suitable for broadband data links and precision RF testing.

• High-Conductivity Build: Features a high-quality plated brass body and a gold-plated center contact to ensure stable signal clarity and corrosion resistance over long-term deployments.

Key Features

• Interface Type: N-Type Male (Plug) Right Angle (90°) with standard 5/8-24 threaded coupling.

• Termination Method: Solder (Outer Jacket) / Solder (Center Pin).

• Cable Compatibility: Optimized for .141″ Semi-Rigid, RG402, and .141″ Conformable cables.

• Premium Construction: Features a plated brass body and high-performance PTFE dielectric.

• Common Application: Microwave subsystems, radar equipment, phase-matched jumpers, and RF test sets.

Technical Summary
