Protective cap for BNC Male Connector

Description

The protective cap for BNC male connectors is an essential maintenance component used to shield the critical interface areas of BNC plugs when they are not in use. This cap is specifically designed to cover the male (plug) interface, protecting the center pin from bending or contamination and keeping the outer bayonet coupling mechanism free from debris. Whether used on spare cable assemblies or equipment patch cables, these caps ensure that the RF path remains clean and ready for immediate deployment.

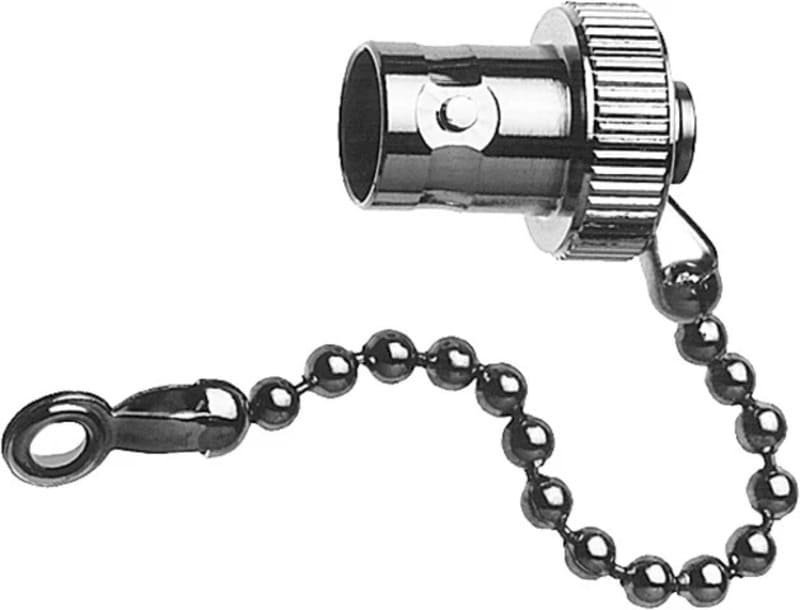

Available in various materials—ranging from high-visibility polyethylene (PE) for general dust protection to nickel-plated brass with integrated chains for industrial applications—these caps prevent moisture, salt spray, and atmospheric oxidation from degrading the connector’s contact surfaces. By maintaining a clean dielectric and center pin, these caps help prevent increased VSWR (Voltage Standing Wave Ratio) and signal loss that can occur when dirty or damaged connectors are eventually mated to high-precision equipment.

Key Technical Advantages

• Contamination Prevention: Effectively seals the connector face against dust, lint, and moisture, which can compromise signal integrity and cause electrical shorts.

• Physical Pin Protection: Provides a rigid or semi-rigid barrier that prevents the delicate male center pin from being bent or broken during transport or storage.

• Mechanical Shielding: Protects the bayonet locking studs and the outer interface from impact damage, ensuring smooth mating cycles throughout the connector’s lifespan.

• Oxidation Control: Reduces exposure to air and humidity, helping to maintain the low contact resistance of gold-plated pins and nickel-plated bodies.

• Available Retention Options: Often equipped with a small lanyard or metal bead chain to keep the cap tethered to the cable or chassis, preventing loss during active use.

Key Features

• Compatibility: Specifically designed for all standard BNC Male (Plug) interfaces.

• Material Options: Available in soft PVC/PE (Dust Caps) or Ruggedized Metal (Weatherproof Caps).

• Interface Style: Friction-fit or internal bayonet locking mechanism.

• Integrated Tether: Optional chain or loop for secure attachment to equipment or cables.

• Common Application: Lab test equipment, field-deployed surveillance systems, broadcast trucks, and telecommunications maintenance.

🔹 Applications:

• Dust protection for connectors
• RF connector safety
• Storage and transport protection
• Outdoor RF systems
• Maintenance applications
• Connector longevity
