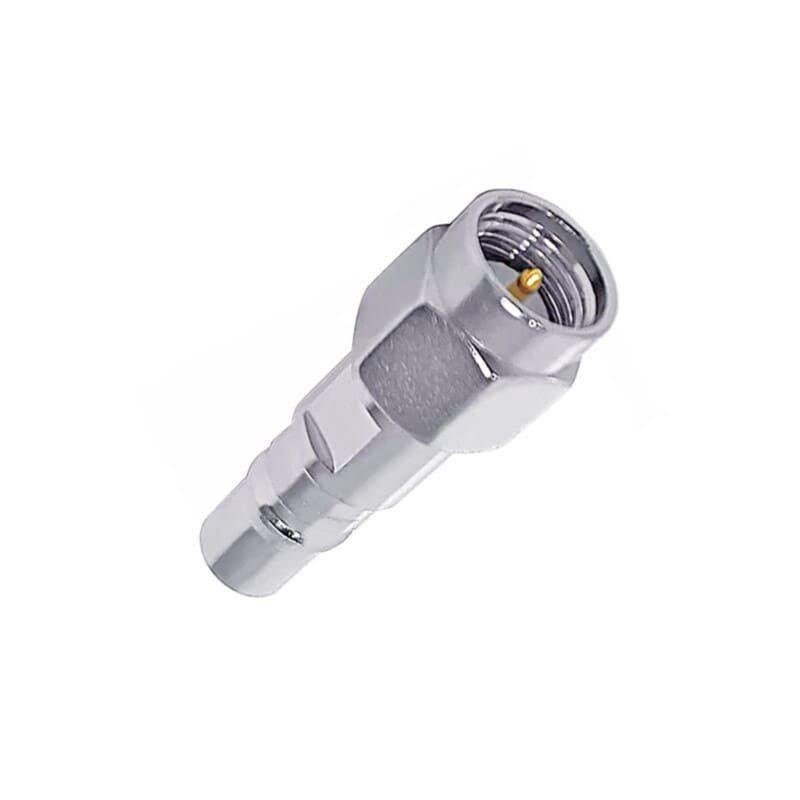

SMA Male to QMA Female Adapter

Description

The SMA Male to QMA Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the ubiquitous threaded SMA standard and the modern snap-on QMA interface. It features an SMA Plug (Male) on one side, utilizing a standard fine-threaded coupling nut and center pin, and a QMA Jack (Female) on the other, featuring the specialized external housing designed for quick-lock mating.

This adapter is indispensable for engineers and technicians who need to interface standard SMA-terminated hardware-such as spectrum analyzers, signal generators, or cable assemblies-with QMA-terminated systems. The QMA interface is a snap-on version of the SMA, offering identical high-frequency performance but replacing the threaded coupling with a fast, secure locking mechanism. This is particularly valuable in high-density rack-mounted environments where there is insufficient space for torque wrenches. Constructed with a heavy-duty tri-metal or nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 18 GHz.

Key Technical Advantages

• Quick-Lock Compatibility: Enables high-speed, tool-less connection to QMA male cables, significantly reducing maintenance and installation time.

• Space-Efficient Transition: Ideal for test setups where QMA-equipped devices must be integrated into standard SMA test benches without the bulk of cable jumpers.

• Superior RF Shielding: The precision-machined housing ensures a continuous ground path, providing excellent EMI and RFI protection up to microwave frequencies.

• Rugged Mechanical Design: Built to handle the mechanical load of the QMA snap-on mechanism while maintaining the precision alignment required for SMA interfaces.

• Maximum Conductivity: High-purity gold plating on the internal center contact pin and socket ensures ultra-low contact resistance and long-term protection against oxidation.

Key Features

• SMA Male to QMA Female Interface: Consists of an SMA Plug (with center pin and hex coupling nut) and a QMA Jack (female socket with snap-on external interface).

• Tri-Metal or Nickel-Plated Construction: Offers superior electrical conductivity and professional-grade durability for laboratory and industrial environments.

• Premium PTFE Dielectric: Provides high thermal stability and maintains a constant dielectric constant across a wide frequency range.

• Industrial Durability: Rated for at least 500 mating cycles on the SMA side and 100 cycles on the QMA side, ensuring reliable performance in high-traffic test systems.

• Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave instrumentation.

🔹 Applications:

• Quick-lock RF connections
• Wireless communication
• Antenna systems
• Signal routing
• RF testing
• Telecom equipment
