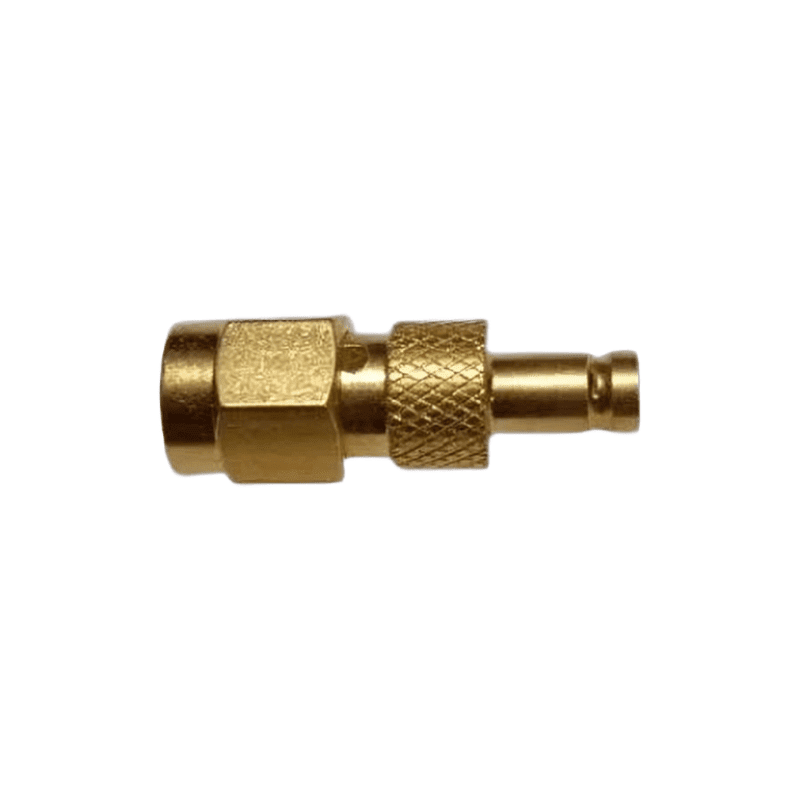

SMA Male to SAA Female Adapter

Description

The SMA Male to SAA Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the ubiquitous SMA standard and the SAA interface. It features an SMA Plug (Male) on one side, utilizing a standard fine-threaded coupling nut and center pin, and an SAA Jack (Female) on the other, featuring the precision internal socket characteristic of the SAA series.

This adapter is indispensable for engineers and technicians who need to interface standard SMA-terminated hardware?such as spectrum analyzers, signal generators, or cable assemblies?with SAA-terminated systems often found in compact telecommunications and military-spec equipment. The SAA interface is designed for high-density applications where a smaller footprint than the standard SMA is required without sacrificing frequency performance. Constructed with a heavy-duty gold-plated or nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 18 GHz, ensuring optimal performance for high-frequency microwave applications.

Key Technical Advantages

• Miniature Interface Integration: Enables the direct connection of standard SMA cables to compact SAA equipment, bridging the gap between bench-top testing and specialized internal hardware.

• Precision RF Performance: Engineered to maintain high-frequency signal characteristics, supporting low-loss transmission well into the microwave spectrum.

• Superior RF Shielding: The precision-machined housing provides a continuous ground path, ensuring excellent protection against EMI and RFI interference in sensitive systems.

• Rugged Mechanical Stability: The durable housing is designed to handle the mechanical load and alignment requirements of frequent mating cycles in laboratory environments.

• Maximum Conductivity: High-purity gold plating on the internal center contact pin and socket ensures ultra-low contact resistance and superior protection against oxidation.

Key Features

• SMA Male to SAA Female Interface: Consists of an SMA Plug (with center pin and hex coupling nut) and an SAA Jack (female socket with specialized external housing).

• Gold or Nickel-Plated Brass Construction: Offers superior electrical conductivity and professional-grade durability for industrial and telecommunications environments.

• Premium PTFE Dielectric: Provides high thermal stability and maintains a constant dielectric constant across a wide frequency range.

• Compact Form Factor: Designed for space-constrained applications while providing the mechanical strength required for secure connections.

• Precision 50 Ohm Match: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.

Technical Summary
