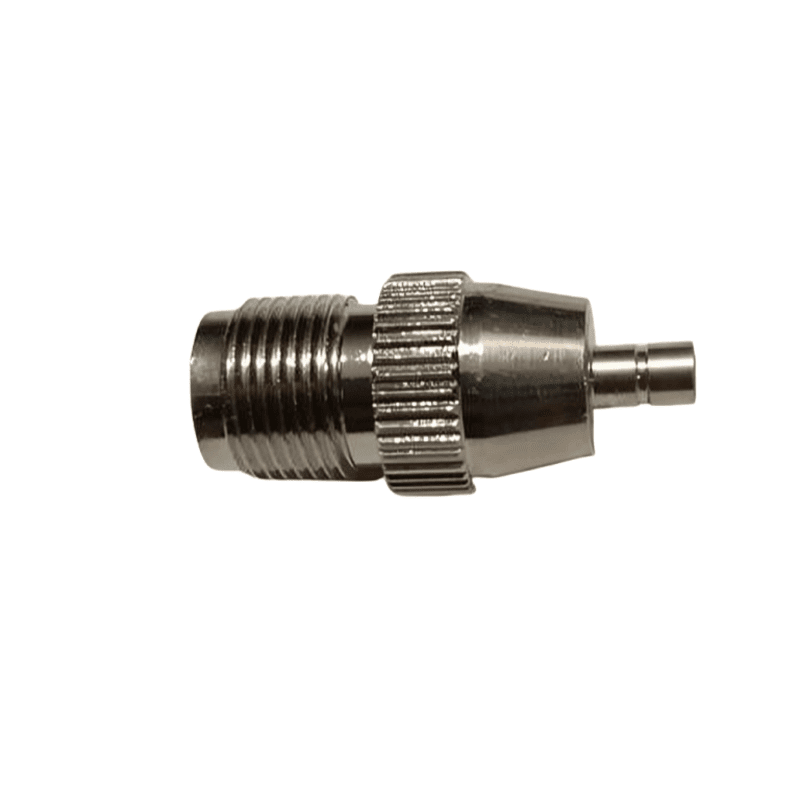

SMB Male to TNC Female Adapter

Description

The SMB Male to TNC Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the sub-miniature SMB standard and the larger TNC interface. It features an SMB Plug (Male) on one side, utilizing a specialized snap-on coupling mechanism and center pin, and a TNC Jack (Female) on the other, featuring a standard threaded external housing and internal socket.

This adapter is indispensable for engineers and technicians who need to interface compact, internal SMB-terminated hardware-often found on GPS modules, automotive telematics, and high-density PCB assemblies-with ruggedized TNC male cable assemblies. The SMB side offers a convenient “push-on” connection for quick installation in tight spaces, while the TNC side provides a secure, threaded interface that excels in high-vibration environments. Precision-machined to maintain a constant 50 Ohm impedance, it is constructed with a durable nickel-plated or gold-plated brass body and PTFE (Teflon) insulation, ensuring exceptional signal integrity and low VSWR up to 4 GHz.

Key Technical Advantages

• Miniature-to-Rugged Bridge: Enables the direct connection of compact, internal wireless modules to heavy-duty external antennas and cabling systems.

• Quick-Connect SMB Interface: The snap-on male connector allows for rapid, tool-less mating, making it ideal for high-density testing and assembly environments.

• Vibration-Resistant TNC Port: The threaded TNC female interface ensures a stable, locked connection that resists loosening due to mechanical shock or movement.

• Superior RF Shielding: The precision brass construction provides a continuous ground path, ensuring excellent protection against EMI and RFI interference.

• Maximum Conductivity: High-purity gold or silver plating on the internal center contact pin and socket ensures ultra-low contact resistance and long-term protection against oxidation.

Key Features

• SMB Male to TNC Female Interface: Consists of an SMB Plug (snap-on male pin) and a TNC Jack (threaded female socket).

• Nickel or Gold-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for industrial and telecommunications applications.

• Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical performance across its frequency range.

• Standard 50 Ohm Impedance: Specifically engineered to match standard wireless communication, automotive, and microwave test instrumentation.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory, automotive, and field environments.

🔹 Applications:

• RF connector conversion
• Wireless communication systems
• Antenna setups
• Signal routing
• RF testing
• Communication equipment
