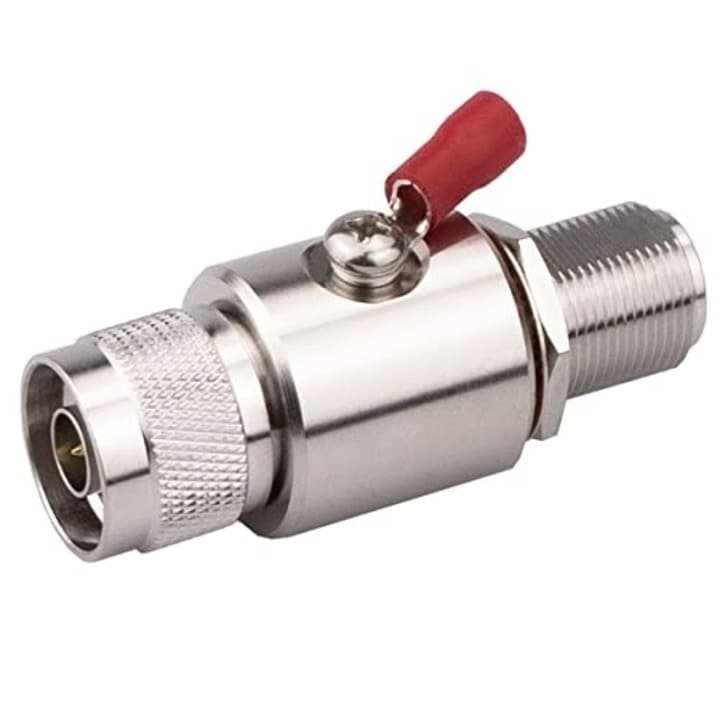

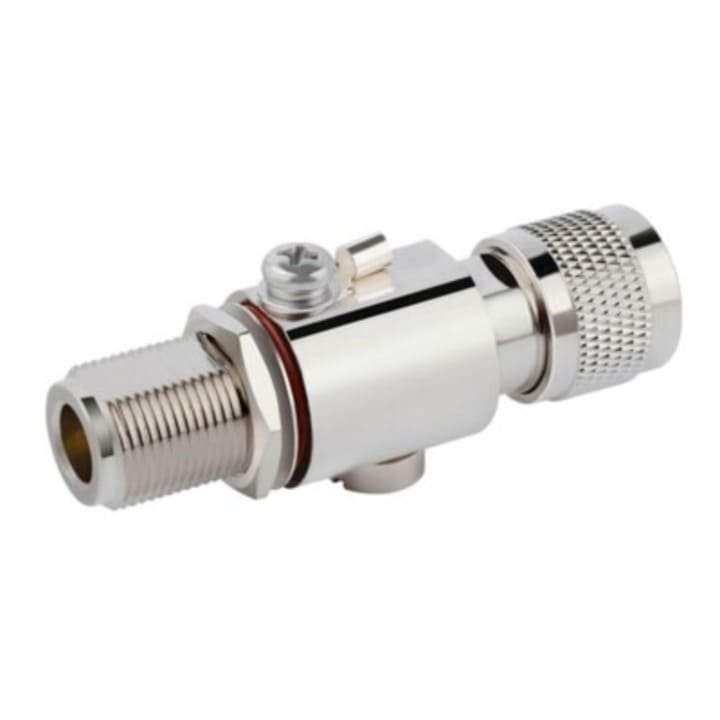

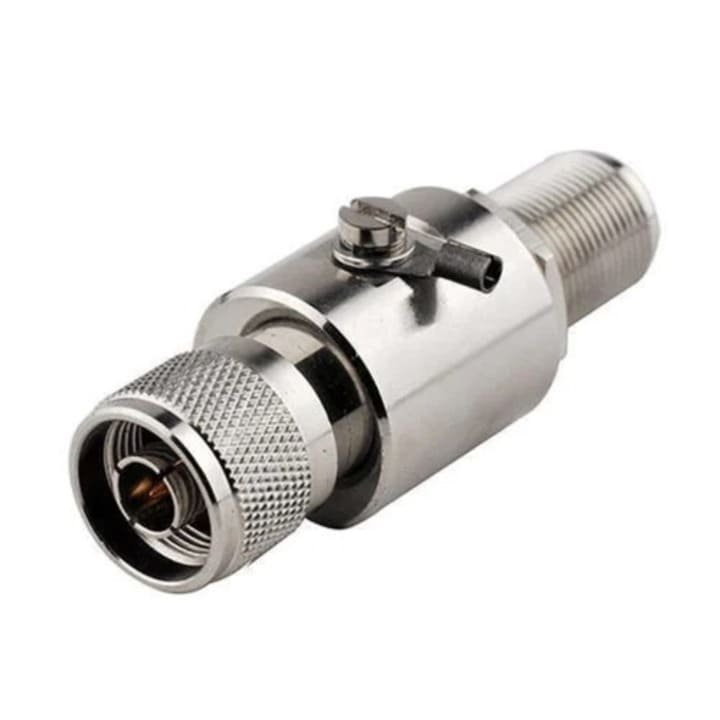

SURGE PROTECTOR DEVICE N M/F BH 6GHz

Description

The 6GHz N-Type Surge Protector is a heavy-duty RF safety component designed for high-power and high-frequency communication lines. This variant features a specialized N-Type Male to N-Type Female Bulkhead interface, allowing it to serve as a protected entry point for equipment enclosures. The bulkhead design enables the protector to be mounted through a chassis wall, providing a secure mechanical connection while ensuring that any surge energy from an external antenna cable is shunted to the chassis ground before entering the sensitive internal electronics.

Optimized for frequencies up to 6GHz, this device is fully compatible with 5G sub-6GHz applications, Wi-Fi 6, and advanced satellite links. It utilizes a high-performance Gas Discharge Tube (GDT) that reacts in nanoseconds to divert dangerous transients to ground. Its robust construction ensures exceptionally low insertion loss and a superior Voltage Standing Wave Ratio (VSWR), which is vital for maintaining signal power and clarity in high-bandwidth systems. Manufactured with a ruggedized nickel-plated brass body and premium PTFE insulation, it is built to withstand the harshest outdoor environments.

Key Technical Advantages

• Extended 6GHz Bandwidth: Specifically designed for modern high-frequency applications where standard 3GHz protectors would cause unacceptable signal degradation.

• Bulkhead Mounting Utility: Enables secure through-wall installation, acting as both a mechanical feed-through and a high-performance electrical safeguard.

• Ultra-Fast Transient Response: The integrated GDT provides near-instantaneous protection against lightning-induced surges and localized electrical spikes.

• Weatherproof Construction: The N-Type interface is inherently rugged and often includes integrated O-rings or gaskets for reliable outdoor performance.

• Low Signal Distortion: Precision internals ensure minimal insertion loss and excellent return loss, preserving the integrity of high-power RF signals.

Key Features

• Interface Type: N-Type Male (Plug) to N-Type Female (Jack) Bulkhead configuration.

• Technology: Replaceable or Fixed Gas Discharge Tube (GDT).

• Frequency Range: DC – 6.0 GHz.

• Impedance: 50 Ohm (Standard).

• Body Material: Nickel-Plated Brass for maximum durability and shielding.

• Common Application: 5G NR base stations, outdoor Wi-Fi 6 access points, GPS/GNSS receivers, and maritime communication systems.
