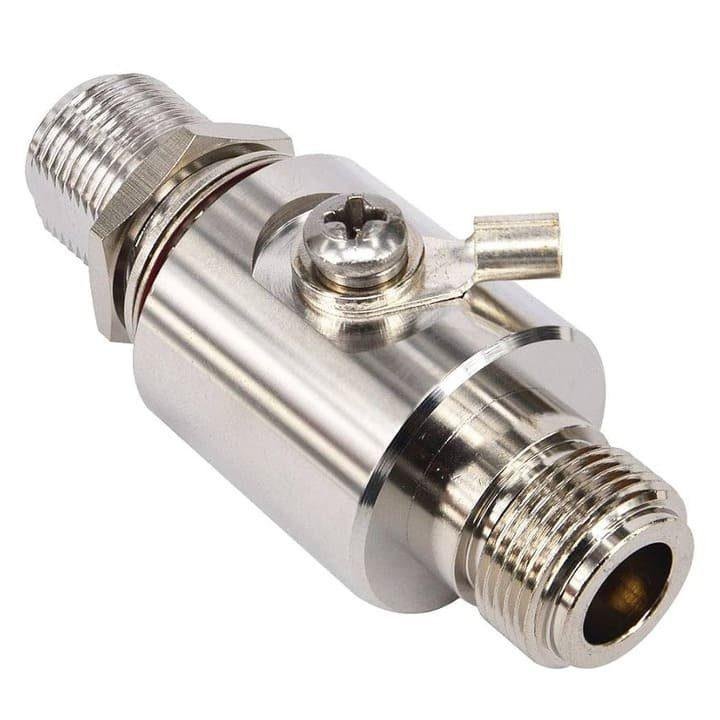

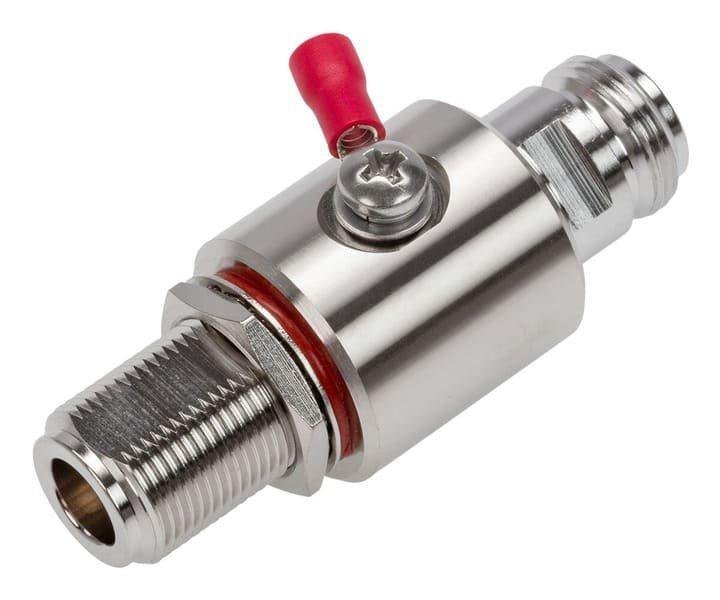

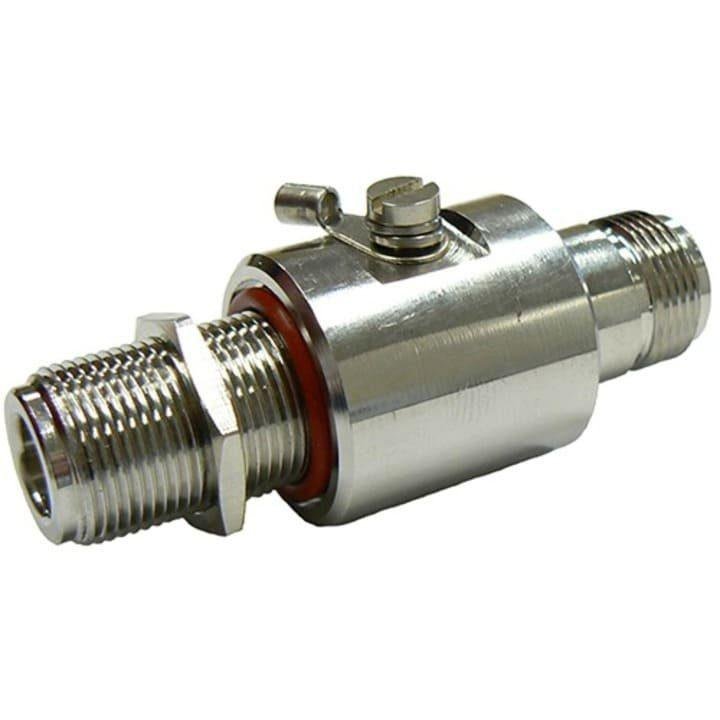

SURGE PROTECTOR DEVICE N F/F BH 6GHz

Description

The 6GHz N-Type female-to-female surge protector is a heavy-duty RF safety component designed for high-power and high-bandwidth communication lines. This variant features a specialized N-Type Female to N-Type Female (Jack to Jack) bulkhead configuration, making it the industry standard for installation at the point of entry for equipment enclosures or shelter wall panels. The bulkhead design allows the protector to be securely mounted through a chassis hole, serving as a mechanical feed-through while ensuring that any surge energy from an external antenna cable is diverted to the chassis ground before reaching sensitive internal electronics.

Optimized for frequencies up to 6GHz, this device is fully compatible with sub-6GHz 5G NR applications, Wi-Fi 6 (5.8GHz), and advanced satellite L-band links. It utilizes a high-performance Gas Discharge Tube (GDT) that reacts in nanoseconds to shunt dangerous transients to ground. Its robust construction ensures exceptionally low insertion loss and a superior Voltage Standing Wave Ratio (VSWR), which is vital for maintaining signal integrity in high-power systems. Manufactured with a ruggedized nickel-plated brass body and premium PTFE insulation, it is built to withstand the harshest outdoor and industrial environments.

Key Technical Advantages

• Extended 6GHz Bandwidth: Precision-engineered for modern high-frequency applications where standard 3GHz protectors would cause unacceptable signal degradation or return loss.

• Bulkhead Feed-Through Utility: Enables secure through-wall installation, acting as both a mechanical anchor and a high-performance electrical safeguard for the entire internal signal path.

• Ultra-Fast Transient Response: The integrated GDT provides near-instantaneous protection against lightning-induced surges and localized electrical spikes.

• Weatherproof Construction: The N-Type interface is inherently rugged and includes integrated O-rings and gaskets for reliable performance in outdoor and maritime environments.

• Low Signal Distortion: Precision-machined internals ensure minimal insertion loss and excellent return loss, preserving the power and clarity of high-power RF signals.

Key Features

• Interface Type: N-Type Female (External) to N-Type Female (Internal) Bulkhead configuration.

• Technology: Replaceable or Fixed Gas Discharge Tube (GDT).

• Frequency Range: DC – 6.0 GHz.

• Impedance: 50 Ohm (Standard).

• Body Material: Nickel-Plated Brass for maximum durability and shielding.

• Common Application: 5G NR base stations, outdoor Wi-Fi 6 access points, GPS/GNSS receivers, and maritime communication systems.
