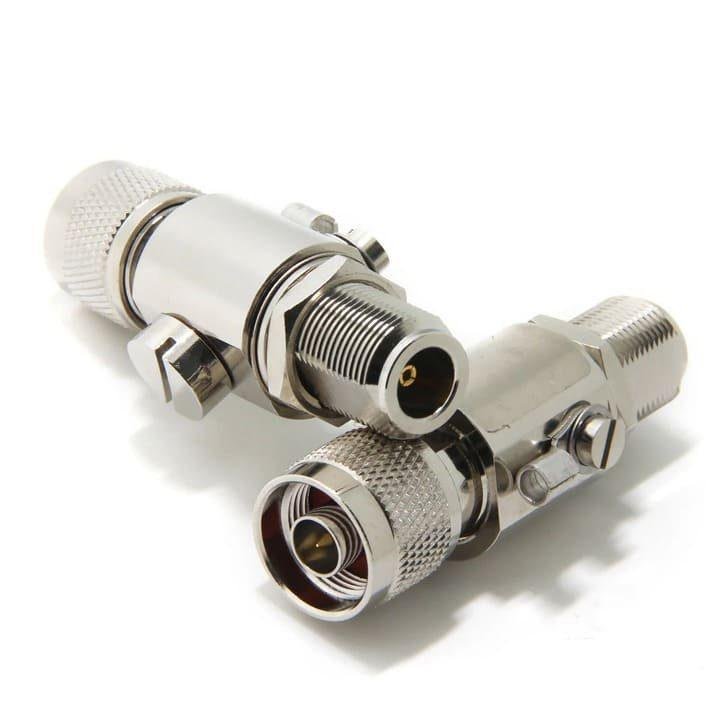

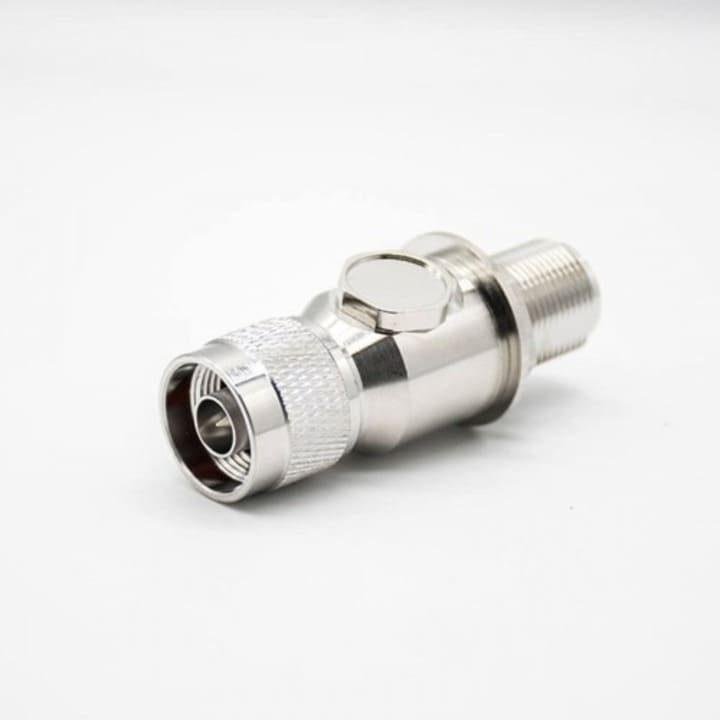

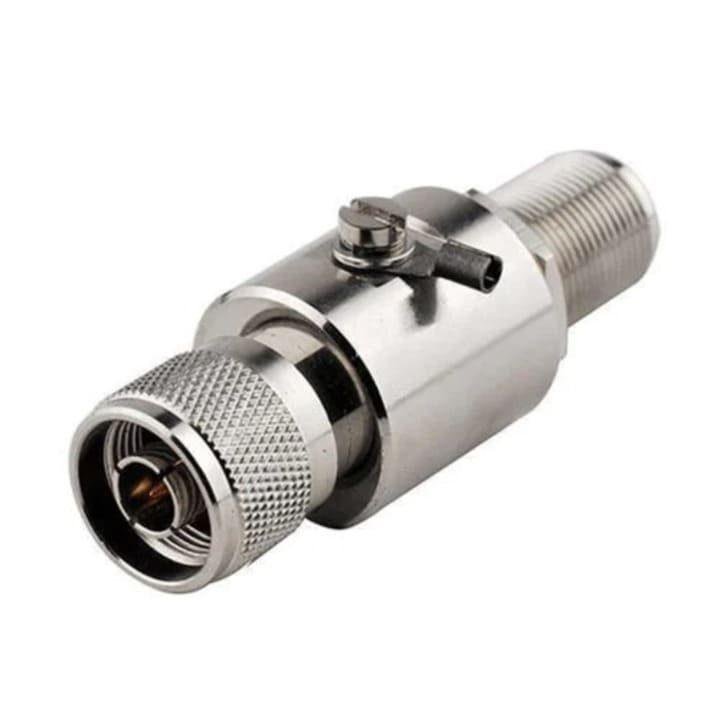

SURGE PROTECTOR DEVICE N M/F 3GHz

Description

The N-type surge protector is a heavy-duty safety component designed to shunt high-voltage transients to ground before they can reach and damage sensitive electronic equipment. This variant features an N-Type Male to N-Type Female (Plug to Jack) inline configuration, allowing it to be easily installed between an external antenna lead and the equipment port. Optimized for applications up to 3GHz, it provides a wideband solution for high-power signals, including 4G/LTE, GPS, and industrial Wi-Fi.

The device utilizes a Gas Discharge Tube (GDT) mechanism that triggers at a specified voltage threshold, redirecting the surge to a dedicated grounding terminal. Its robust construction ensures minimal insertion loss and excellent return loss, maintaining signal integrity while providing a sacrificial barrier against electrical surges. Manufactured with a ruggedized nickel-plated brass body and premium PTFE insulation, it is specifically built to withstand the harsh environmental conditions typical of outdoor tower and rooftop installations.

Key Technical Advantages

• High-Power Capacity: The N-Type interface is designed to handle significantly higher power levels than smaller RF connectors, making this protector ideal for transmission systems.

• High-Frequency Performance: Supports a wide frequency spectrum from DC to 3GHz, making it compatible with 4G/LTE, GPS timing systems, and 2.4GHz WLAN.

• Rapid Response Time: The integrated gas discharge tube reacts nearly instantaneously to voltage spikes, providing superior protection against lightning-induced transients.

• Inline “Pass-Through” Design: The M/F interface allows for simple integration into existing cable runs at the point of entry or directly at the equipment port.

• Weatherproof Design: Features a precision-machined body and internal gaskets to ensure reliable electrical performance in high-humidity and outdoor environments.

Key Features

• Interface Type: N-Type Male (Input/Cable Side) to N-Type Female (Output/Equipment Side).

• Technology: Gas Discharge Tube (GDT) Surge Arrestor.

• Frequency Range: DC – 3.0 GHz.

• Impedance: 50 Ohm (Standard).

• Body Material: Nickel-Plated Brass for maximum durability and shielding.

• Common Application: Telecommunications base stations, outdoor Wi-Fi access points, GPS receivers, and maritime RF installations.

🔹 Applications:

• RF surge protection for telecom systems
• Antenna feeder cable protection
• Base station RF systems
• Wireless communication networks
• DAS and IBS systems
• Outdoor RF installations
