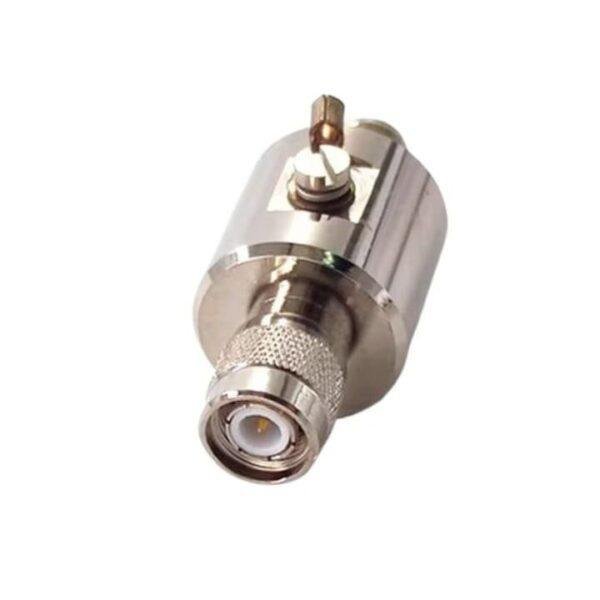

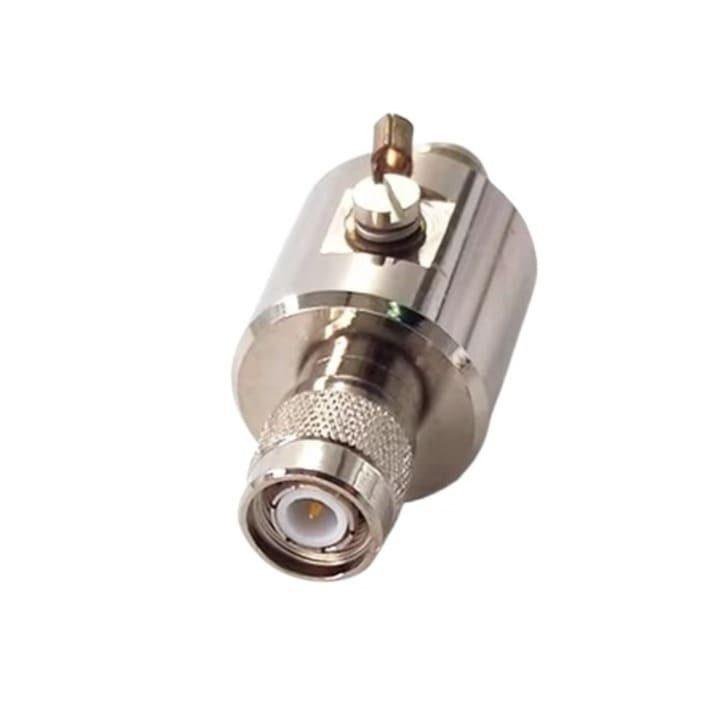

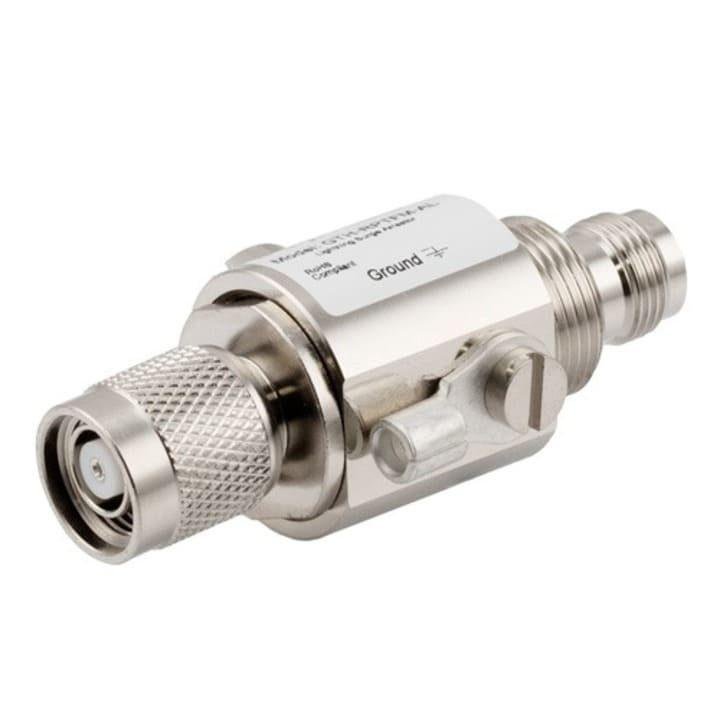

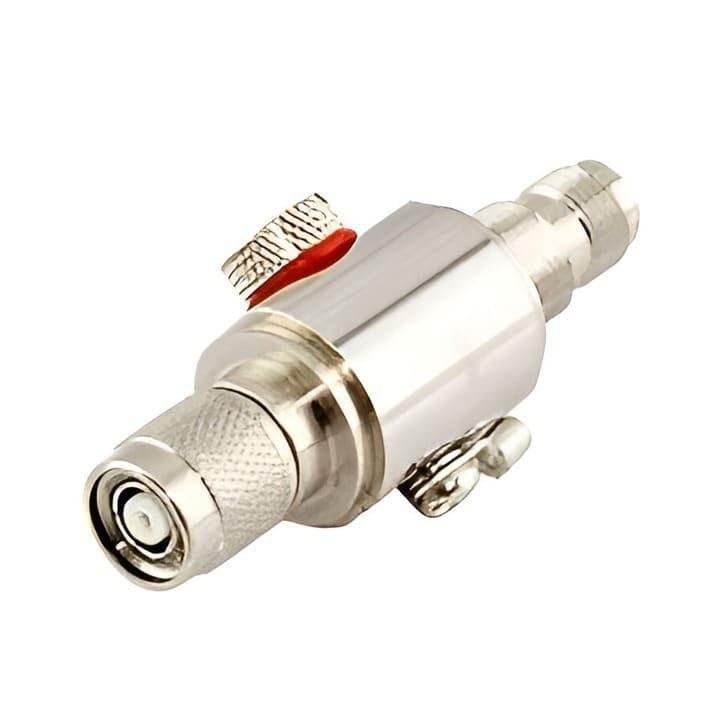

SURGE PROTECTOR DEVICE TNC M/F 6GHz

Description

The 6GHz TNC Surge Protector is an advanced RF safety component designed for high-bandwidth communication lines that require the mechanical security of a threaded interface. Unlike BNC variants, the TNC interface provides a vibration-proof coupling, making this protector ideal for cellular base stations and mobile platforms. This high-performance device is optimized for frequencies up to 6GHz, ensuring compatibility with sub-6GHz 5G NR, GPS/GNSS, and high-speed wireless data links.

The device acts as a sacrificial barrier, utilizing an internal Gas Discharge Tube (GDT) that remains transparent to RF signals during normal operation. Upon detecting a dangerous voltage spike, the GDT reacts in nanoseconds to shunt the surge energy to ground. This protector features a TNC Male to TNC Female interface, allowing for seamless inline installation between an outdoor antenna cable and sensitive indoor hardware. Constructed with a ruggedized nickel-plated brass body and premium PTFE insulation, it is designed for maximum shielding and long-term durability in demanding environments.

Key Technical Advantages

• Extended 6GHz Bandwidth: Precision-engineered for high-frequency applications where standard 3GHz protectors would cause unacceptable signal degradation or return loss.

• Threaded Mechanical Security: The TNC interface ensures a stable, vibration-resistant connection that is superior to bayonet-style connectors in high-movement environments.

• Ultra-Fast Transient Protection: The integrated GDT provides a near-instantaneous response to lightning-induced transients, effectively isolating downstream equipment from damage.

• Low Signal Distortion: Designed for minimal insertion loss and a superior VSWR, preserving the power and clarity of high-speed digital and analog signals.

• Robust Grounding Terminal: Includes a dedicated, low-impedance grounding screw to facilitate a direct path for diverting surge energy away from the protected signal path.

Key Features

• Interface Type: TNC Male (Plug) to TNC Female (Jack) inline configuration.

• Technology: Gas Discharge Tube (GDT) Surge Arrestor.

• Frequency Range: DC – 6.0 GHz.

• Impedance: 50 Ohm (Standard).

• Body Material: Nickel-Plated Brass for high durability and environmental resistance.

• Common Application: 5G small cell installations, Wi-Fi 6 routers, GPS/GNSS timing systems, and aerospace/defense communication links.
