UHF Tee-Type Adaptor (F-F-F), DC to 4 GHz

Description

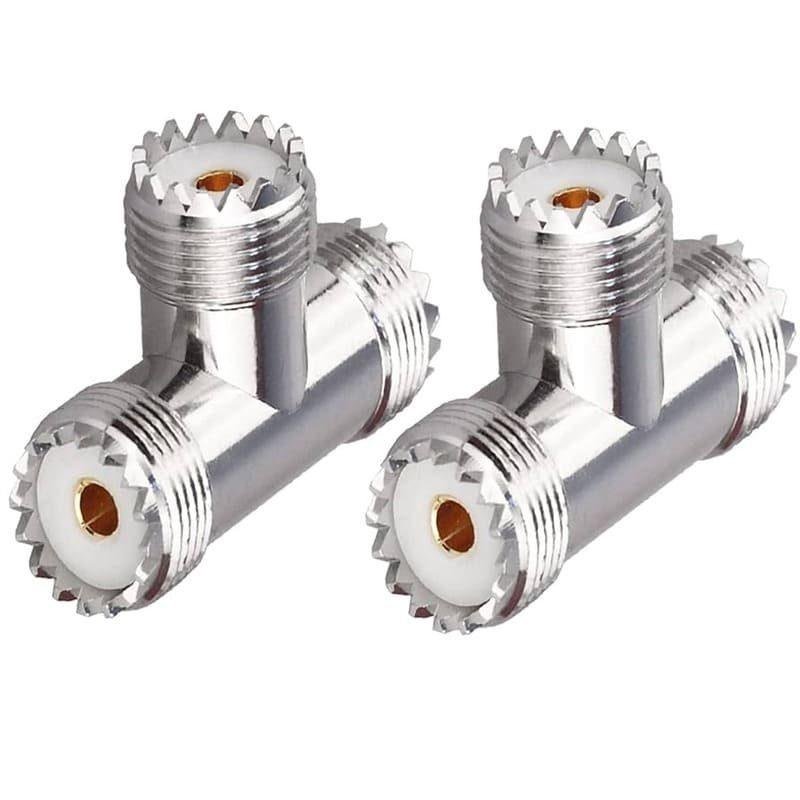

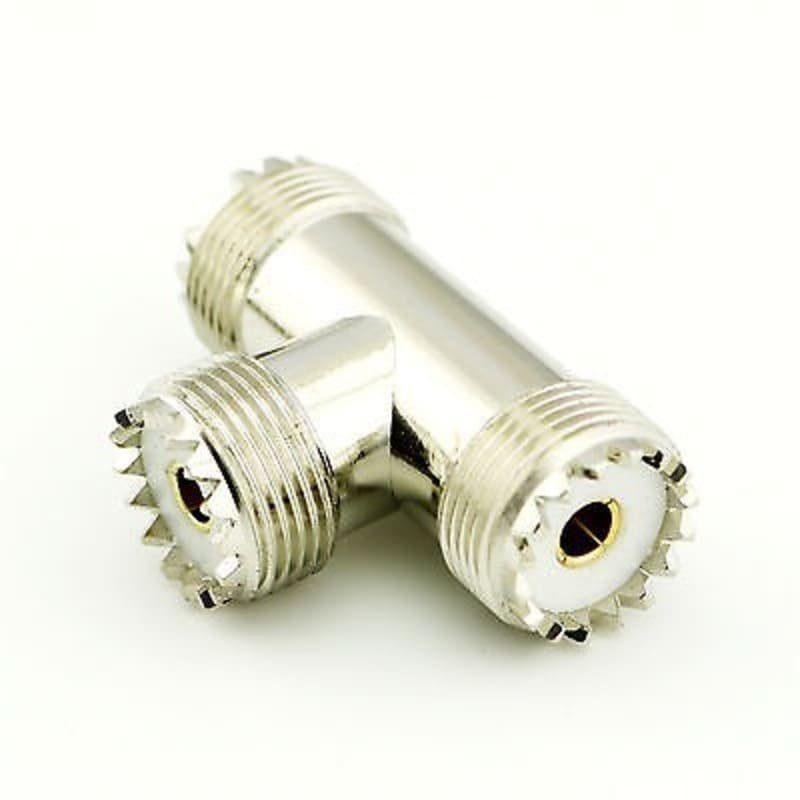

The UHF Tee-Type Adapter (Female-Female-Female) is a rugged RF component designed to branch a single signal path into two, or to combine two signals into one, using three standard UHF Female interfaces. Known in the industry as the SO-239 interface, the UHF connector is a staple in high-power HF, VHF, and UHF communications. This high-spec variant is precision-engineered with superior internal geometry and high-grade dielectrics to extend its usable range into the microwave spectrum, ensuring reliable signal routing for advanced RF laboratory manifolds and high-wattage antenna arrays.

The adapter features a Nickel-Plated Brass body for exceptional physical strength and resistance to environmental corrosion. To maintain signal fidelity, it utilizes Gold-Plated or Silver-Plated center contacts that ensure a low-resistance electrical path even after repeated mating cycles. The 5/8″-24 threaded interfaces provide a secure, high-retention connection with standard PL-259 male plugs. This specific F-F-F layout is most commonly used as a central hub to join three UHF male-terminated cables, providing a clean signal junction for high-power transmitter systems.

Key Technical Advantages

• Exceptional Power Handling: Designed to manage the high voltage and wattage levels typical of base station transmitters and high-power amateur radio amplifiers.

• Broad Spectrum Versatility: While standard SO-239 connectors are often restricted to lower frequencies, this precision-machined adapter maintains performance up to 4 GHz for specialized test applications.

• Triple-Female Layout: Acts as a reliable central junction for interconnecting multiple UHF male cables without the need for additional adapters or complex wiring.

• Ruggedized Construction: The heavy-walled brass body and threaded coupling provide a vibration-resistant connection that is ideal for mobile command centers and maritime environments.

• High-Grade Insulation: Features PTFE (Teflon) insulators to provide superior thermal stability and lower signal attenuation compared to standard commercial-grade plastics.

Key Features

• Adapter Type: Tee-Type (T-Shape).

• Interface: 3x UHF Female (SO-239 Style).

• Impedance: Non-constant (Optimized for 50 Ohm systems).

• Body Material: Brass (Nickel Plated).

• Contact Material: Phosphor Bronze or Beryllium Copper (Gold or Silver Plated).

• Insulator: PTFE (Teflon).

• Common Applications: High-power antenna signal branching, amateur radio (Ham) junctions, maritime and land-mobile communication, and ruggedized RF test manifolds.

🔹 Applications:

• RF signal distribution in radio systems
• Antenna feeder systems
• Broadcast setups
• Communication networks
• RF cable routing
• Wireless systems
