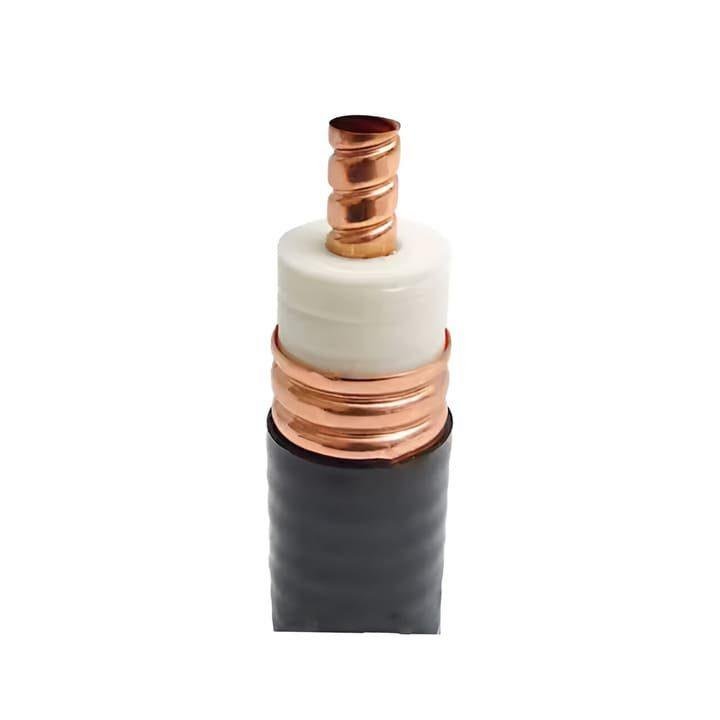

1-5/8” Feeder Cable

Description

The 1-5/8″ feeder is utilized when signal runs exceed several hundred feet or when transmitting extremely high power. Its massive physical size results in the lowest possible resistive loss, ensuring that almost every watt of power from the transmitter reaches the antenna. The solid corrugated copper shield provides shielding effectiveness of >120 dB, making it exceptionally resistant to interference even in the most congested RF environments.

Due to its significant diameter, this cable has a large bending radius and is quite heavy, requiring specialized hoisting grips, heavy-duty hangers, and professional installation teams. It is typically jacketed in UV-resistant Black PE for a 20+ year outdoor life or LSZH for safety in tunnels and indoor applications.

Key Technical Advantages

• Industry-Leading Low Loss: Offers the best attenuation performance in the standard feeder family, losing as little as ~1.5 – 1.8 dB per 100 meters at 900 MHz.

• Extreme Power Handling: Capable of managing peak power ratings up to ~250 – 310 kW, supporting the most powerful broadcast and military applications.

• Superior PIM Performance: The robust corrugated design ensures extremely low Passive Intermodulation (PIM), which is critical for maximizing data speeds in multi-carrier 5G environments.

• High Mechanical Reliability: Engineered to withstand severe environmental conditions, including heavy ice loading and extreme wind pressure on high-altitude towers.

• Precision Connectivity: Compatible with specialized high-power 7/16 DIN, 4.3-10, and EIA flange connectors designed for 1-5/8″ cable.

Key Features

• Impedance: 50 Ohm (±1 Ohm).

• Outer Diameter: ~49.5mm to 51.0mm.

• Frequency Range: DC to ~2.7 GHz (Standard) / 3.0 GHz (Premium).

• Outer Conductor: Corrugated Copper Tube.

• Bending Radius: ~300mm (Single) / ~500mm (Repeated).

• Applications: Main Feeders for Large Macro Sites, High-Power Broadcast, and SATCOM Earth Stations.

🔹 Applications:

• Ultra high-power RF transmission
• Telecom backbone and core networks
• Large antenna systems
• Broadcast and microwave communication
• Base station infrastructure
• Industrial RF systems
