Description

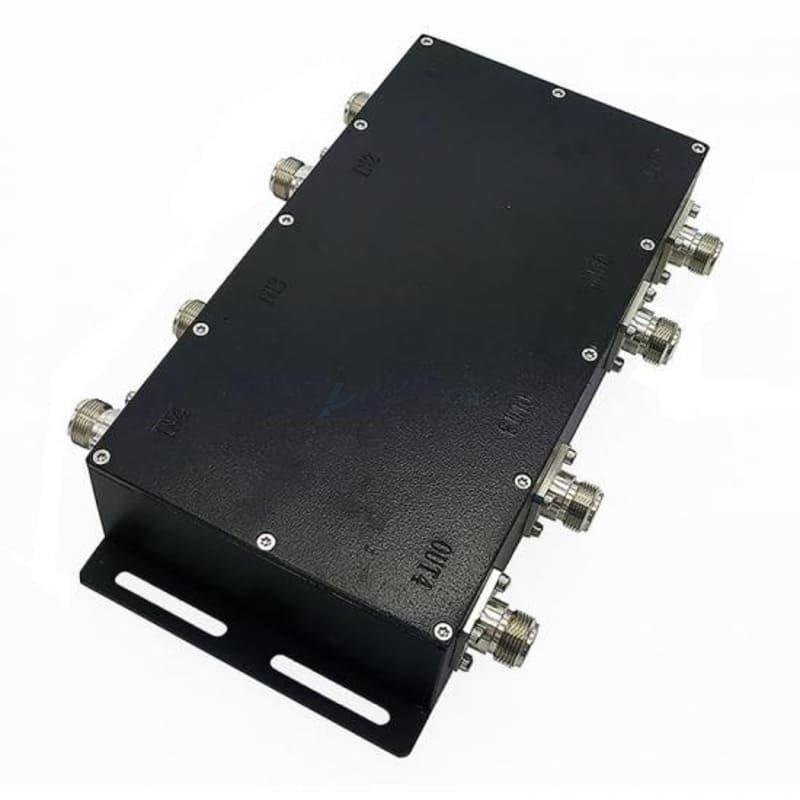

Precision-engineered for telecommunications infrastructure, this 4×4 hybrid matrix uses an internal network of 3dB hybrid couplers to ensure that every output port receives exactly one-fourth (approx. 6dB loss) of the combined input energy. This design offers superior port-to-port isolation (typically ≥20dB to 25dB), protecting radio equipment from cross-talk and mutual interference. The housing is typically constructed from tri-alloy plated brass or aluminum, ensuring high conductivity and a long operational life in challenging environments.
The device is optimized for low PIM (typically ≤-155dBc to -161dBc), which is essential for maintaining a clean noise floor and maximizing data throughput. With its high power rating, it can easily handle the outputs of multiple high-power base station amplifiers. Its compact and rugged design makes it suitable for integration into both indoor building solutions (IBS) and sheltered outdoor cabinets where high-capacity signal routing is required.
Key Technical Advantages
-
Advanced MIMO Support: Ideal for 4×4 MIMO or multiple 2×2 MIMO sectors, providing balanced, combined signal paths to four antenna branches.
-
Balanced Signal Distribution: Ensures all four output ports provide a uniform mix of all four input signals, simplifying network balancing.
-
Carrier-Grade Signal Purity: Engineered to achieve ultra-low PIM levels, protecting sensitive receiver hardware from interference.
-
High Port Isolation: Effectively isolates each input source from the others, preventing feedback and ensuring transmitter stability.
-
Infrastructure Efficiency: Consolidates up to four signal sources into four outputs, drastically reducing the complexity of the RF front-end in large-scale DAS.
Key Features
-

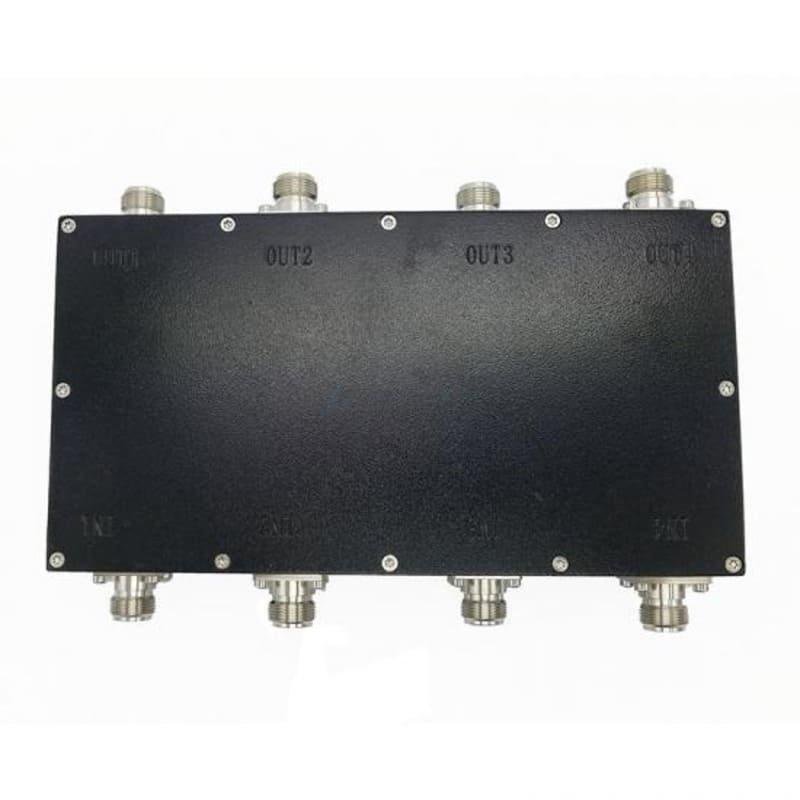

Configuration: 4 Input Ports, 4 Output Ports.
-
Frequency Range: 698-2700 MHz (covers legacy LTE and early 5G).
-
Impedance: 50 Ohm.
-
VSWR: ≤ 1.3:1.
-
PIM (3rd Order): Typically ≤ -155 to -161 dBc.
-
Power Handling: 100W – 300W per port (Avg).
🔹 Applications:
- Multi-channel RF signal combining and distribution
- Telecom and DAS systems
- Antenna signal integration networks
- RF signal routing infrastructure
- Wireless communication systems
- Base station RF management
