60dB 1W RF Fixed Attenuator N M/F 3GHz

Description

The 60dB 1W RF Fixed Attenuator is a high-performance passive component designed to reduce the power of an RF signal by exactly 60dB, providing a massive 1,000,000:1 power reduction. With a 1-Watt power handling capacity, it is specialized for low-power signal conditioning where extreme isolation or reduction is required to prevent the saturation of sensitive measurement equipment. This model is optimized for a frequency spectrum from DC to 3GHz, making it a vital tool for VHF, UHF, GPS, and legacy cellular band testing.

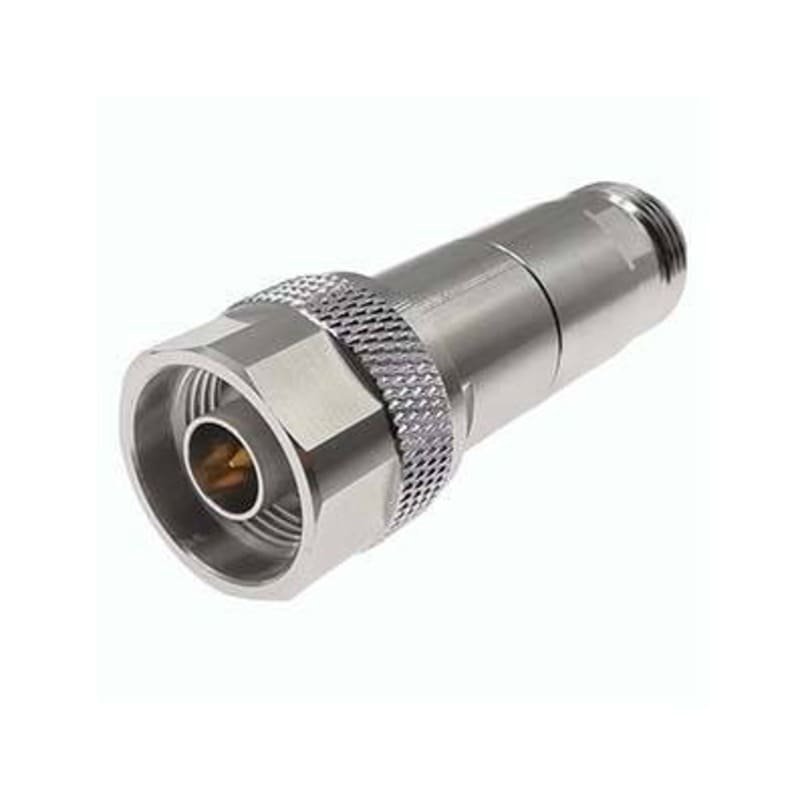

The attenuator features an N-Type Male to N-Type Female inline configuration, utilizing a threaded coupling mechanism that ensures superior shielding and high mechanical stability. Because 60dB represents such a high degree of attenuation, the internal resistive network is precision-tuned to maintain exceptional frequency flatness and prevent signal leakage. Constructed with nickel-plated brass or stainless steel and premium PTFE insulation, it is built to deliver stable, repeatable performance in both laboratory and industrial field environments.

Key Technical Advantages

• Extreme 60dB Reduction: Provides a massive power reduction ratio, essential for converting high-level signals down to the micro-power range for sensitive analysis.

• Superior Shielding Effectiveness: The rugged N-Type construction and precision internals are designed to maintain the 60dB depth without external signal ingress or leakage.

• Broad 3GHz Bandwidth: Delivers a versatile solution for a wide range of wireless technologies, maintaining high accuracy across the DC through 3GHz spectrum.

• Low VSWR: Precision-engineered internals minimize signal reflections, protecting upstream sources and ensuring measurement accuracy even at high attenuation levels.

• Durable Mechanical Interface: The N-Type threaded connectors provide a vibration-resistant, high-reliability connection suitable for thousands of mating cycles.

Key Features

• Interface Type: N-Type Male (Plug) to N-Type Female (Jack).

• Attenuation Value: 60dB (Fixed).

• Power Rating: 1 Watt (Continuous).

• Frequency Range: DC – 3.0 GHz.

• Impedance: 50 Ohm (Standard).

• Construction: Nickel-Plated Brass or Stainless Steel with PTFE dielectric.

• Common Application: EMI/EMC testing, protection of ultra-sensitive receiver front-ends, signal simulation, and laboratory power calibration.

Technical Summary
