Description

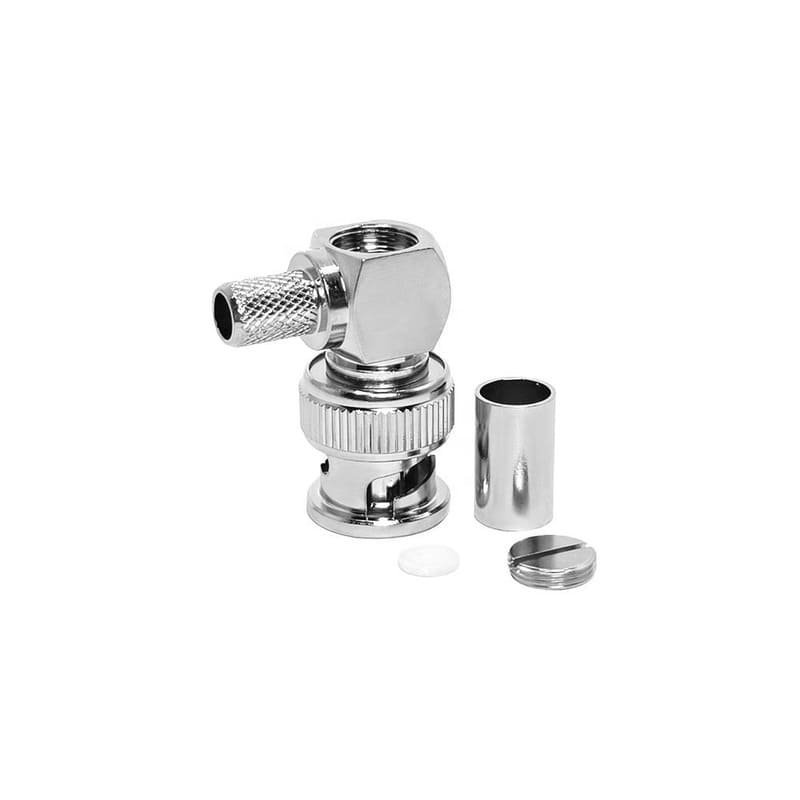

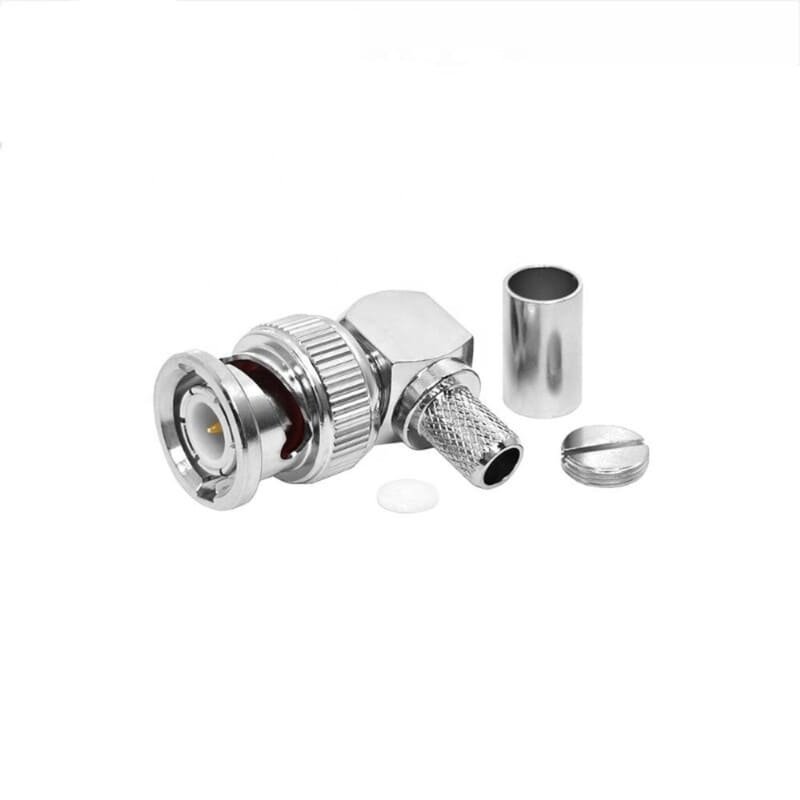

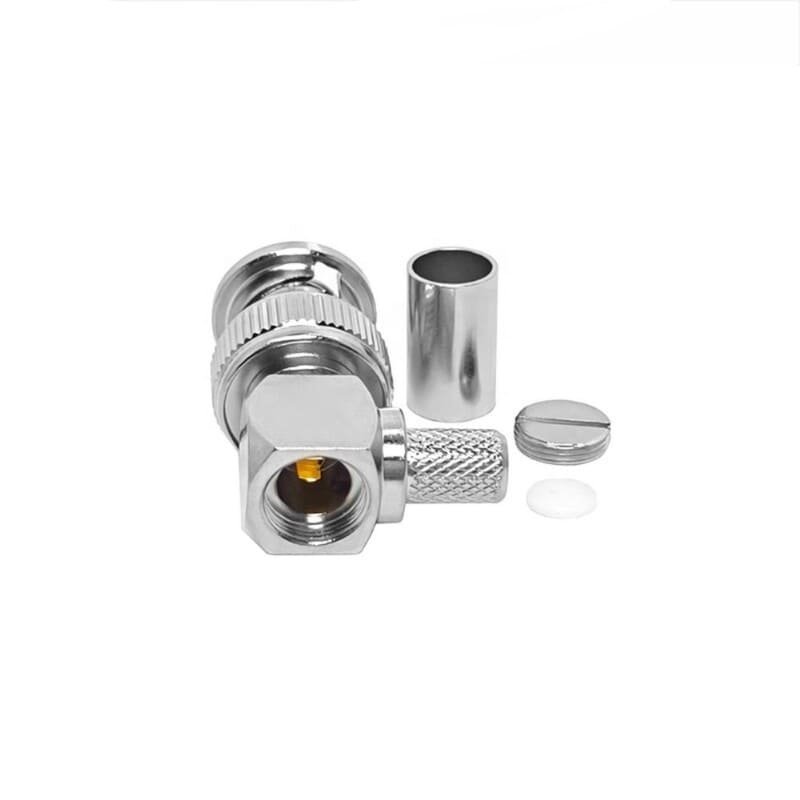

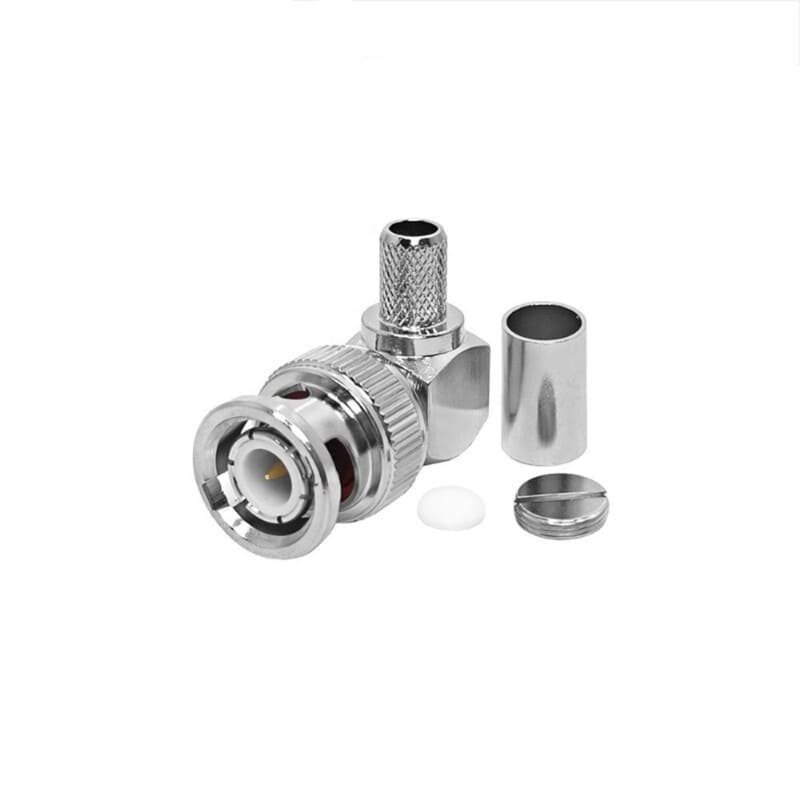

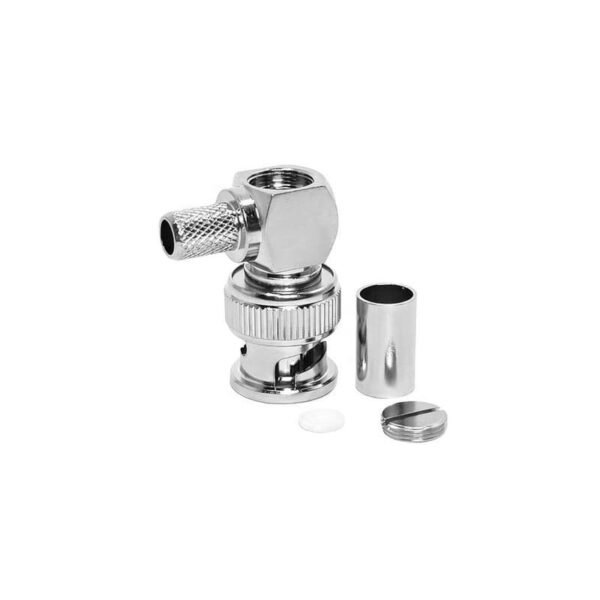

The BNC male right-angle crimp connector is a high-performance RF component valued for its space-saving design and robust mechanical interface. This variant features a 90-degree (Right Angle) body, allowing the cable to exit perpendicular to the mating axis. This configuration is specialized for the 5mm cable class, specifically optimized for standard RG58, high-performance LMR195/LMR200, and high-temperature RG142. The right-angle orientation significantly reduces the depth required for connections, making it essential for shallow enclosures and high-density rack systems.
As a male interface (plug), it features the classic two-stud bayonet locking system for rapid, vibration-resistant mating with BNC jacks. This connector utilizes a hex-crimp termination system for the outer conductor, providing a high-strength 360-degree mechanical bond and superior strain relief. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and reliable signal integrity up to 4 GHz, ensuring optimal performance in tight signal routing environments.
Key Technical Advantages
-
Space-Saving 90-Degree Profile: The right-angle design allows for parallel cable routing against panels or boards, drastically reducing the mechanical stress on the cable and the depth of the assembly.
-
Efficient Crimp Termination: The hex-crimp design allows for rapid, repeatable assembly, making it ideal for high-volume production, cabling workshops, and field repairs.
-
Medium-Gauge Cable Match: Specifically calibrated for the 0.195″ to 0.200″ OD cable family, ensuring a precise mechanical fit and optimized electrical transition for RG58 and LMR-series lines.
-
Secure Bayonet Coupling: Features the industry-standard bayonet locking mechanism for tool-less mating that remains mechanically stable under vibration.
-
Superior Corrosion Resistance: Features a precision-machined nickel-plated body and gold-plated center contact to ensure low contact resistance and long-term protection against oxidation.
Key Features
-
Interface Type: BNC Male (Plug) with standard bayonet coupling.
-
Orientation: Right Angle (90 Degree).
-
Termination Method: Crimp (Outer Braid) / Solder (Center Pin).
-
Cable Compatibility: Optimized for RG58, RG142, RG223, LMR195, LMR200, and equivalent 50-Ohm medium coaxial cables.
-
Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.
-
Common Application: Rack-mounted servers, avionics panels, compact wireless instrumentation, and professional video routing in tight spaces.
🔹 Applications:
- Right-angle RF cable connections
- Compact RF installations
- Antenna systems
- Communication devices
- RF signal routing
- Test setups
