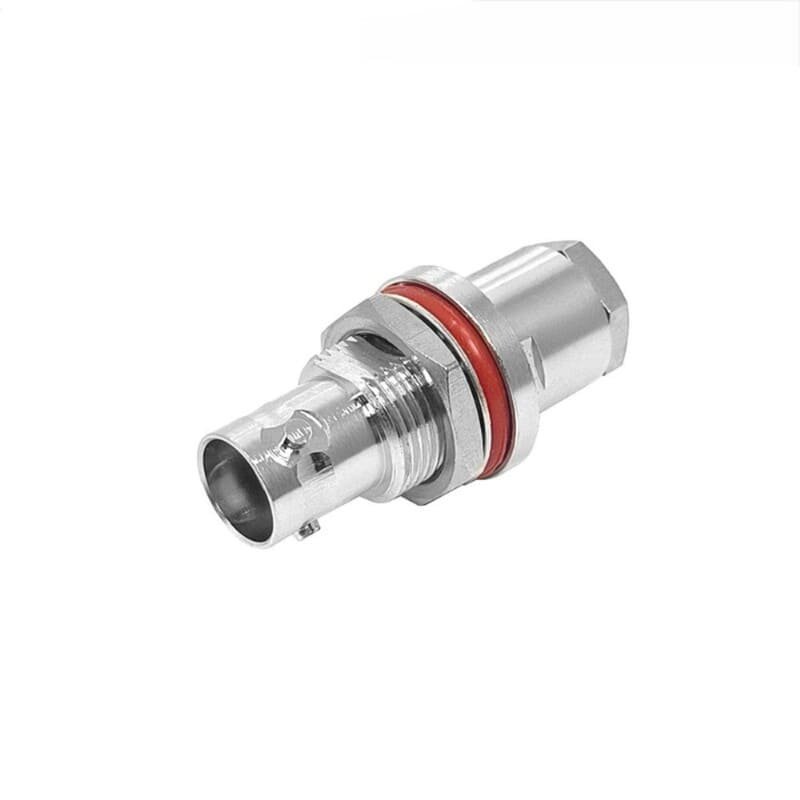

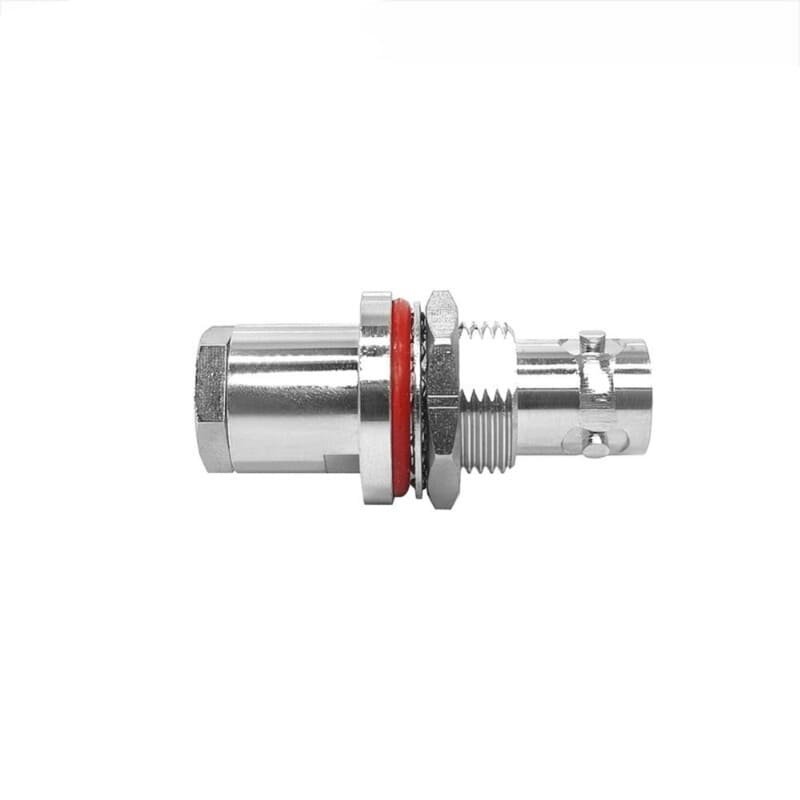

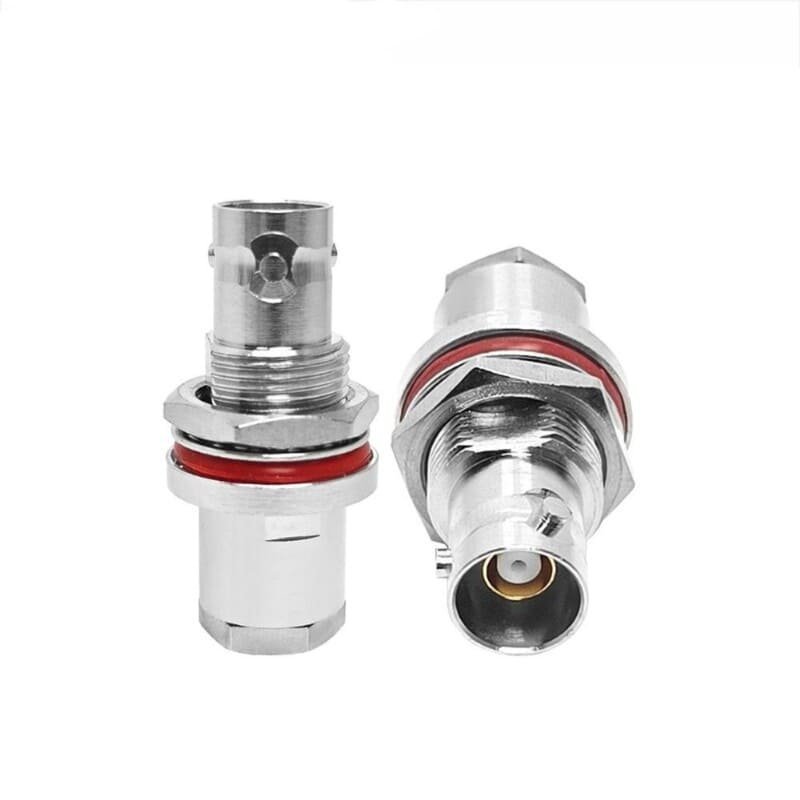

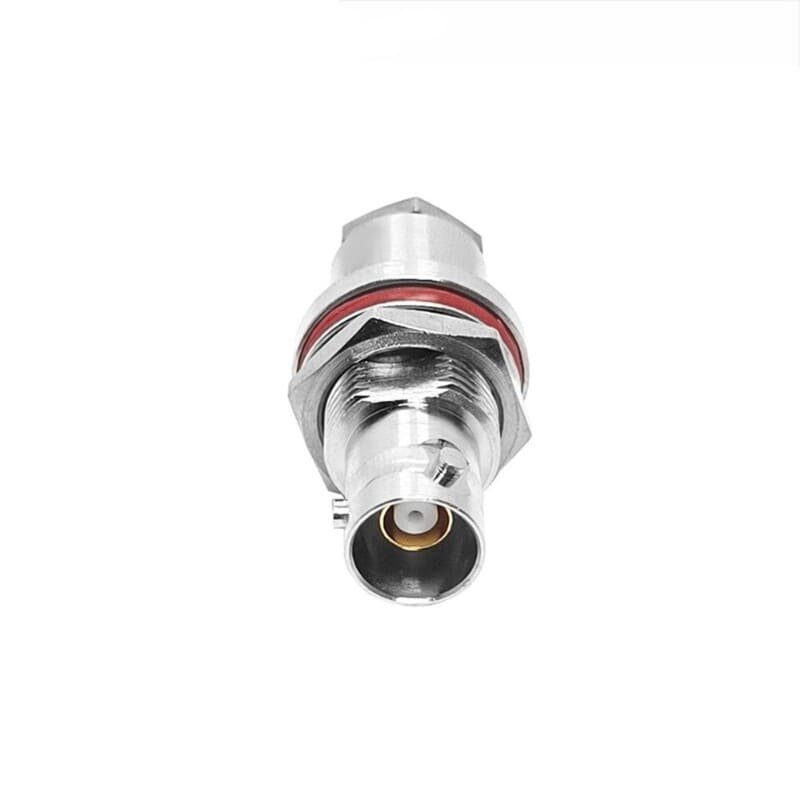

BNC F BH CLAMP for RG58/RG142/LMR195/LMR200 Cable

Description

The BNC female bulkhead clamp connector is a specialized RF component designed to provide a fixed, high-integrity connection point through a panel or chassis wall. This variant is optimized for the 5mm cable class, specifically for standard RG58, high-performance LMR195/LMR200, and double-shielded RG142. The bulkhead design includes a threaded outer body, mounting nut, and lock washer, allowing it to be securely fastened into a D-hole or circular cutout, creating a permanent external interface for any BNC male plug.

This connector features a clamp termination system, utilizing a threaded rear nut and internal gasket to compress the cable braid against the connector body. This method provides a high-pressure mechanical bond and an excellent environmental seal without the need for specialized crimping tools. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and superior shielding effectiveness, making it ideal for transitioning RF signals into shielded enclosures or outdoor-rated junction boxes.

Key Technical Advantages

• Secure Bulkhead Mounting: The threaded body and included hardware ensure a rigid, vibration-resistant mount on panels or chassis, providing a reliable external connection point.

• Tool-Less Field Termination: The mechanical clamp design allows for secure cable installation using standard wrenches, ideal for on-site repairs and custom installations where crimp dies are unavailable.

• Reusable Design: The clamp assembly can be easily disassembled and re-terminated, offering flexibility for prototyping or cable maintenance without replacing the entire connector.

• Medium-Gauge Cable Match: Specifically calibrated for the 0.195″ to 0.200″ OD cable family, ensuring a precise mechanical fit and optimized electrical transition for RG58 and LMR-series lines.

• Superior Environmental Protection: The clamp and bulkhead design inherently provides better sealing against moisture and dust compared to standard crimp connectors.

Key Features

• Interface Type: BNC Female (Jack) with standard bayonet coupling.

• Mounting Style: Bulkhead (Rear Mount/Front Mount) with nut and washer.

• Termination Method: Clamp (Outer Braid) / Solder (Center Socket).

• Cable Compatibility: Optimized for RG58, RG142, RG223, LMR195, LMR200, and equivalent 50-Ohm medium coaxial cables.

• Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.

• Common Application: Panel-mount antenna ports, industrial control boxes, RF test chambers, and laboratory equipment interfaces.

Technical Summary
