Description

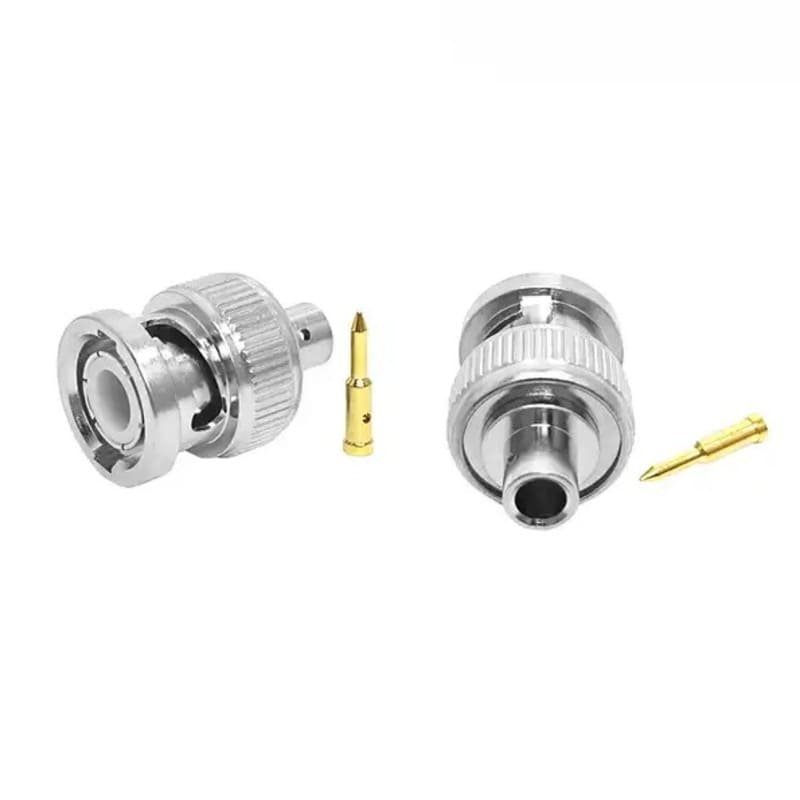

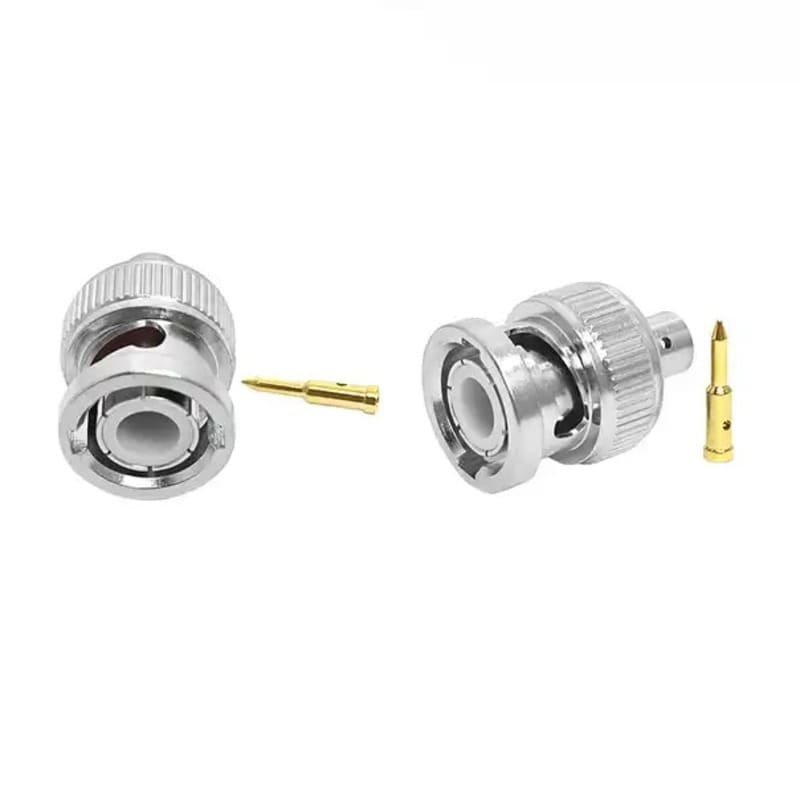

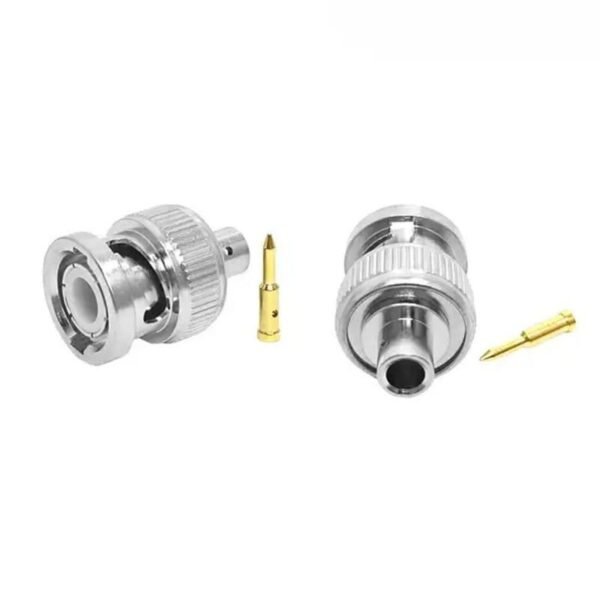

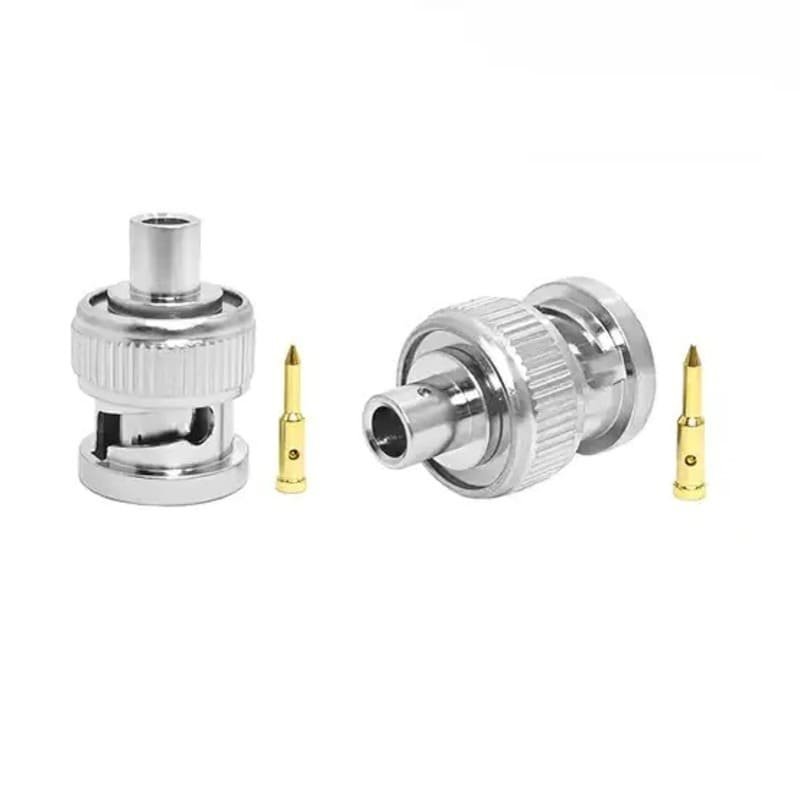

The BNC male solder connector is an industry-standard RF component, valued for its rapid bayonet coupling and reliable mechanical locking. This variant is specialized for the .086-inch cable class, specifically optimized for solid-jacket Semi-Rigid and hand-formable RG405 cables. This connector is designed for high-precision environments where maximum shielding and signal phase stability are critical in a compact form factor.
This connector utilizes a direct-solder termination for both the center conductor and the outer jacket. By soldering the cable’s copper jacket directly into the precision-machined rear bore of the connector body, the assembly achieves an airtight, 360-degree electrical bond. This method is superior for maintaining the lowest possible VSWR and ensuring a continuous grounding path at microwave frequencies. Manufactured with a durable nickel or tri-metal plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and exceptional shielding effectiveness.
Key Technical Advantages
-
Direct-Solder Body Interface: The solder-on design creates a continuous metallic shield with the cable jacket, providing maximum EMI/RFI protection essential for sensitive signal paths.
-
Precision .086/RG405 Match: Specifically calibrated for the 0.086-inch OD jacket, ensuring an optimized electrical transition and high mechanical rigidity for specialized cable assemblies.
-
Secure Bayonet Coupling: Features the classic two-stud bayonet locking system for rapid, tool-less mating that remains secure under vibration and movement.
-
Phase-Stable Performance: The permanent solder bond minimizes signal fluctuations and non-linearities, making it ideal for precision jumpers and internal equipment routing.
-
Heavy-Duty Construction: Features a precision-machined brass body and high-performance PTFE dielectric to withstand repeated mating cycles and maintain electrical integrity.
Key Features
-
Interface Type: BNC Male (Plug) with standard bayonet coupling mechanism.
-
Termination Method: Solder (Outer Jacket) / Solder (Center Pin).
-
Cable Compatibility: Optimized for .086 Semi-Rigid, RG405, and hand-formable 0.086″ 50-Ohm coaxial cables.
-
Premium Construction: Features a precision-machined brass body and high-performance PTFE dielectric.
-
Common Application: RF test equipment, microwave instrumentation, high-performance jumpers, and precision signal distribution.
🔹 Applications:
- High-frequency RF cable connections
- Microwave systems
- Precision RF assemblies
- Lab testing setups
- Communication systems
- Signal routing
