N Female to SMA Female 4H Flange Adapter

Description

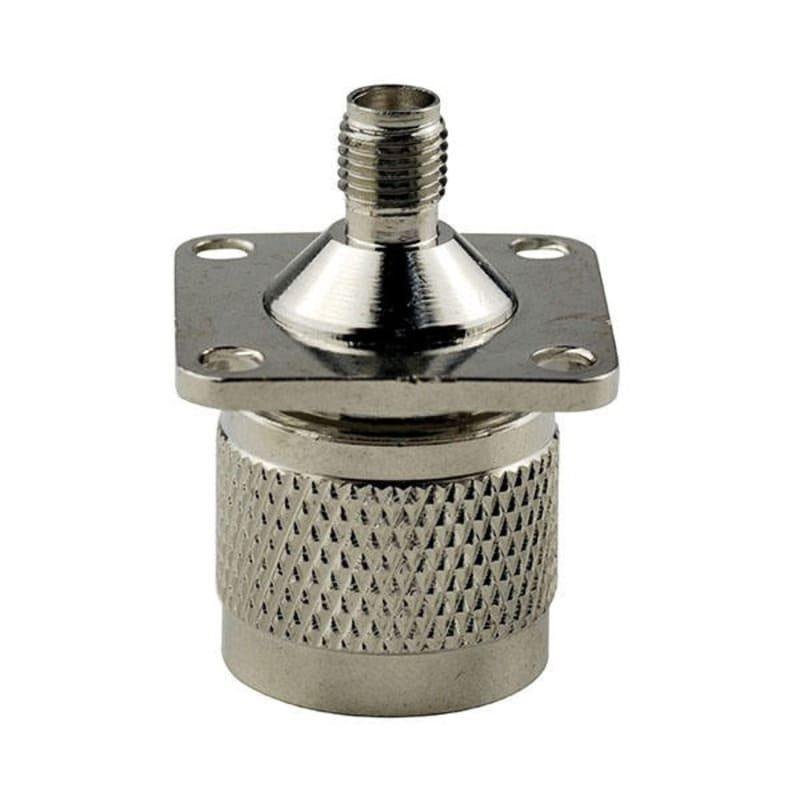

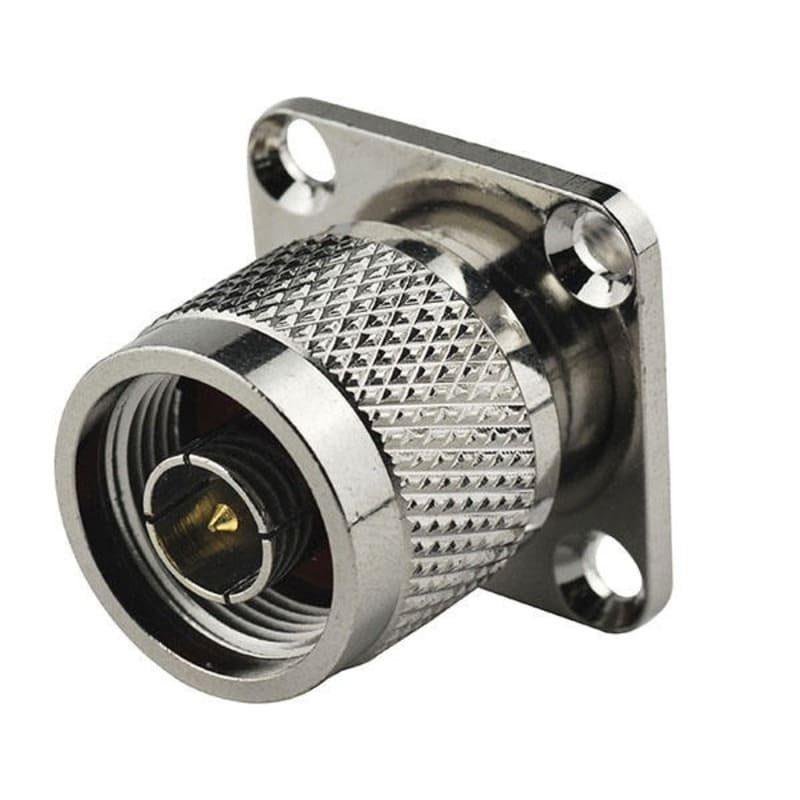

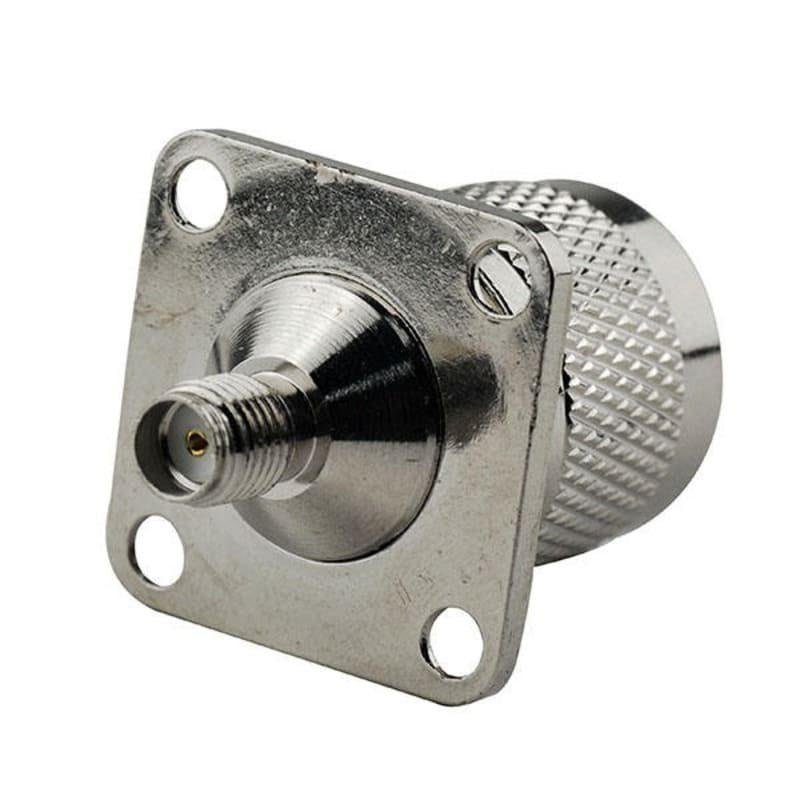

The N Female to SMA Female 4-Hole Flange Adapter is a specialized “between-series” RF component designed for flush-mounting onto chassis, cabinets, or bulkhead plates. It features an N-Type Jack (Female) on one side and an SMA Jack (Female) on the other, both precision-mounted into a robust, square metal flange. The flange includes four pre-drilled mounting holes located at each corner, allowing the adapter to be bolted or screwed directly to a flat surface.

This adapter is indispensable for engineers who require maximum mechanical stability for their RF interfaces. Unlike threaded bulkhead adapters, the 4-hole flange design prevents the connector from rotating or loosening under the high torque typical of heavy N-Type cable assemblies. It is widely used to provide an external N-Type interface for internal SMA-terminated microwave modules, amplifiers, and filters. Constructed with a nickel-plated brass body and PTFE (Teflon) insulation, it maintains exceptional signal integrity and low VSWR up to 6 GHz.

Key Technical Advantages

• Maximum Rotational Stability: The 4-hole square flange design ensures the connector cannot spin or shift, even when subjected to extreme cable torque or high-vibration environments.

• Flush-Mount Integration: Provides a clean, professional interface that sits flush against the equipment panel, ideal for rack-mounted systems and industrial enclosures.

• Superior RF Shielding: The broad contact area of the flange against the chassis provides an exceptional ground path, significantly reducing EMI and signal leakage.

• High-Power Durability: The rugged brass construction is designed to handle the mechanical load of large-diameter outdoor coaxial cables without stressing internal circuitry.

• Precision Conductivity: High-purity gold or silver plating on the internal center contact sockets ensures ultra-low contact resistance and protection against oxidation.

Key Features

• N Female to SMA Female Interface: Consists of an N-Type Jack (with socket) and an SMA Jack (with socket) in a single flanged housing.

• Square 4-Hole Flange: Features four mounting holes for secure attachment using standard machine screws or bolts.

• Nickel-Plated Brass Construction: Offers superior corrosion resistance and professional-grade durability for industrial and laboratory use.

• Premium PTFE Dielectric: Offers high thermal stability and maintains consistent electrical performance across its frequency range.

• Standard 50 Ohm Impedance: Specifically engineered to match standard high-performance wireless communication and microwave test instrumentation.

🔹 Product Applications

• RF signal interface between N female and SMA female 4-hole flange connectors
• Panel-mounted RF connections in telecom and communication systems
• Secure antenna and RF cable integration in base stations and enclosures
• RF coaxial cable assemblies with flange mounting for stability
• RF test and measurement equipment setups
• Signal routing through panels and chassis in communication devices
• Industrial RF and control panel installations
• Outdoor RF enclosures and cabinet connectivity
• Wireless communication and networking systems
• High-frequency RF applications requiring secure mounting
