N M 4H Panel Mount Solder

Description

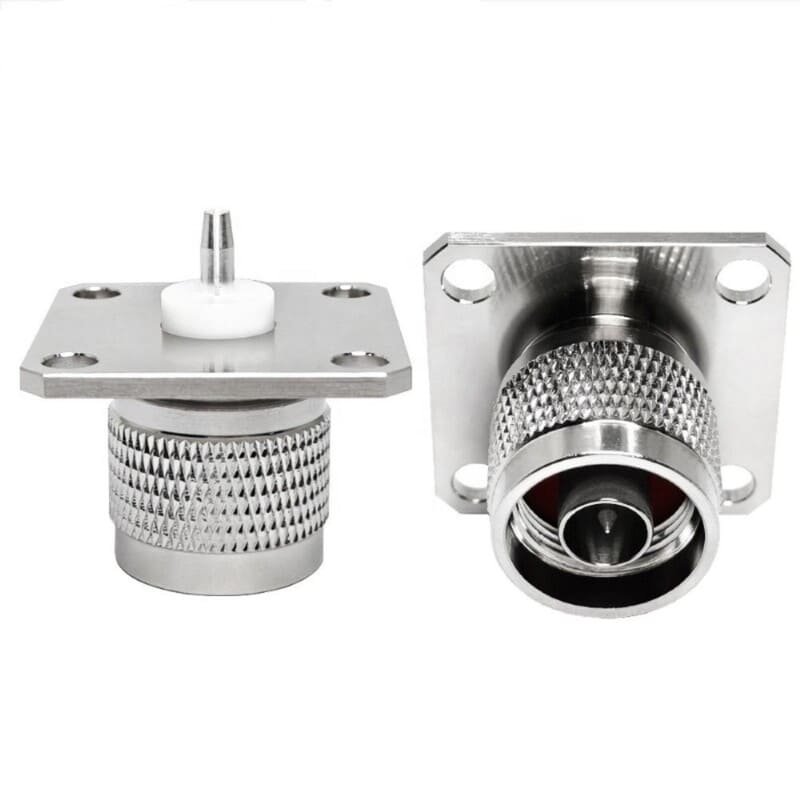

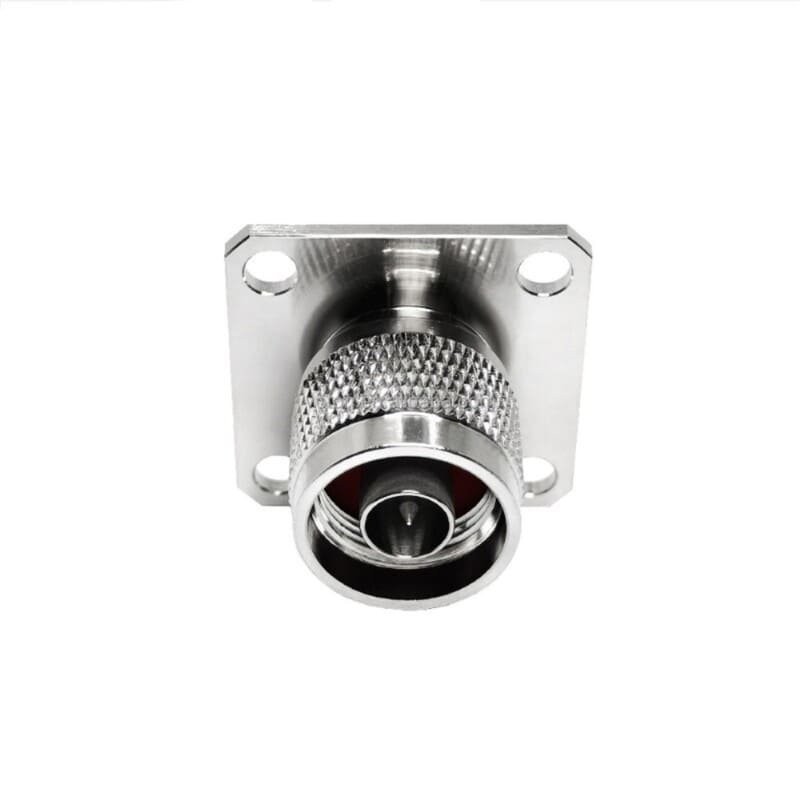

The N-Type connector is prized for its exceptional mechanical strength and stable performance across the microwave spectrum. This Panel Mount variant features a square 4-hole flange, designed for secure mounting to equipment chassis, cabinets, or internal bulkheads. The 4-hole configuration provides superior mechanical stability and ground contact compared to single-hole bulkhead mounts, ensuring the connector remains rigid even under the stress of heavy coaxial cable connections and high-torque mating.

This connector utilizes a direct-solder rear termination. The center conductor features a solder cup or post, allowing for a permanent, high-integrity electrical bond with internal wiring or PCB-to-chassis jumpers. Manufactured with a durable nickel or tri-metal plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and exceptionally low VSWR up to 11 GHz. Its robust design and threaded interface make it indispensable for precision RF instrumentation, broadcast equipment, and ruggedized communication modules.

Key Technical Advantages

• High-Stability 4-Hole Flange: The square flange with four mounting holes ensures maximum mechanical retention and a low-resistance grounding path to the equipment chassis.

• Direct-Solder Rear Post: Features a precision solder cup for reliable, permanent internal connections, minimizing signal loss and contact resistance at the interface.

• Rugged Chassis Interface: Engineered for high-durability applications where the connector must withstand repeated mating cycles and the weight of primary feeder cables.

• Superior Microwave Performance: Maintains high-grade signal integrity up to 11 GHz, suitable for broadband data links and high-power transmitter outputs.

• High-Conductivity Build: Features a plated brass body and a gold-plated center contact for maximum corrosion resistance and stable signal clarity over the life of the hardware.

Key Features

• Interface Type: N-Type Male (Plug) with standard 5/8-24 threaded coupling.

• Mounting Type: 4-Hole Square Flange Panel Mount.

• Termination Method: Solder Cup / Post (Internal).

• Premium Construction: Features a plated brass body and high-performance PTFE dielectric.

• Common Application: RF amplifier housings, base station cabinets, test equipment panels, and high-power transmitter interfaces.

Technical Summary
