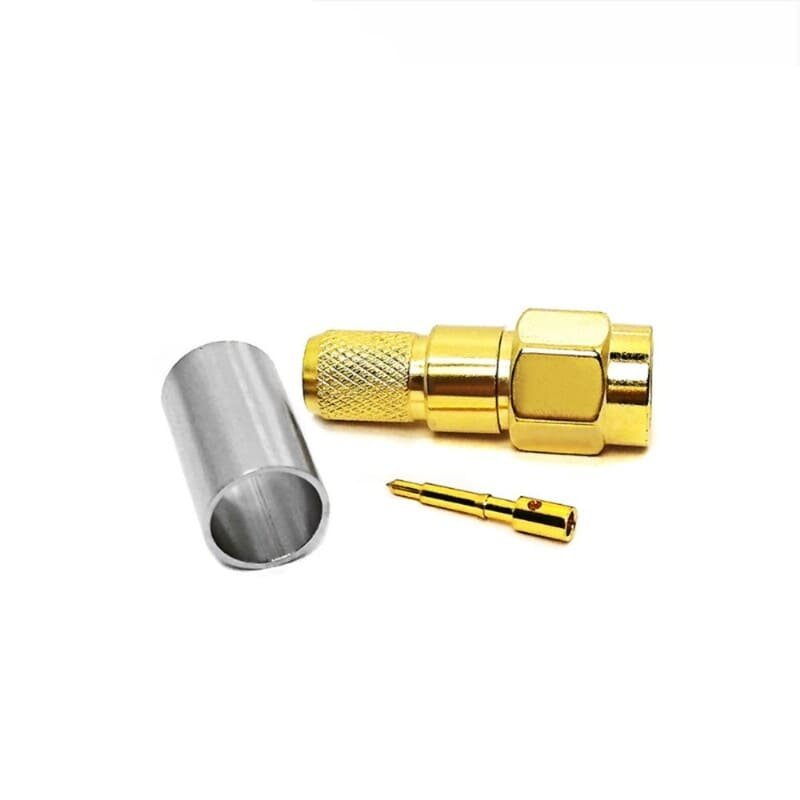

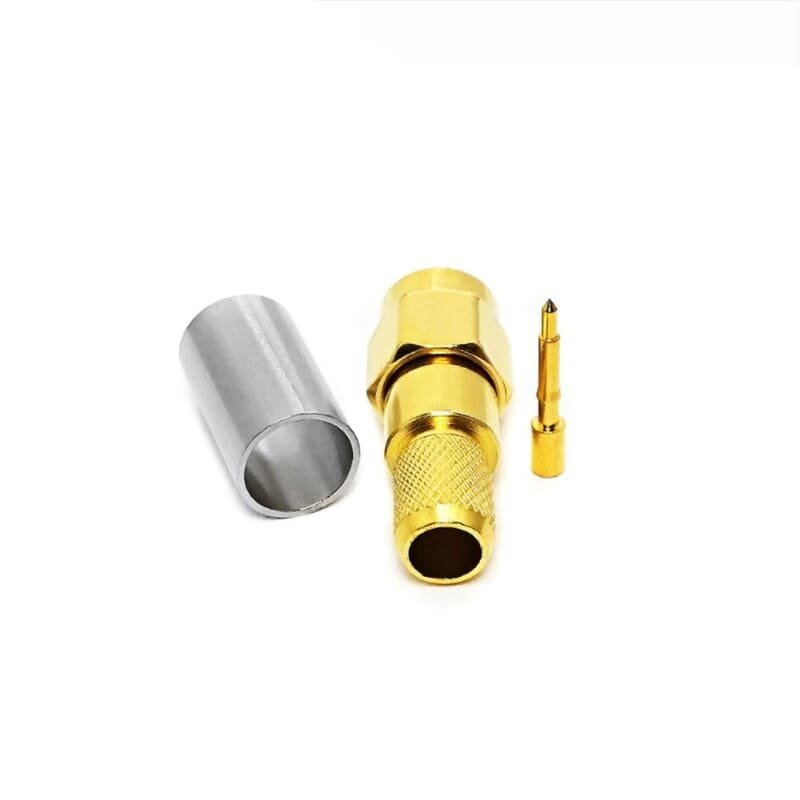

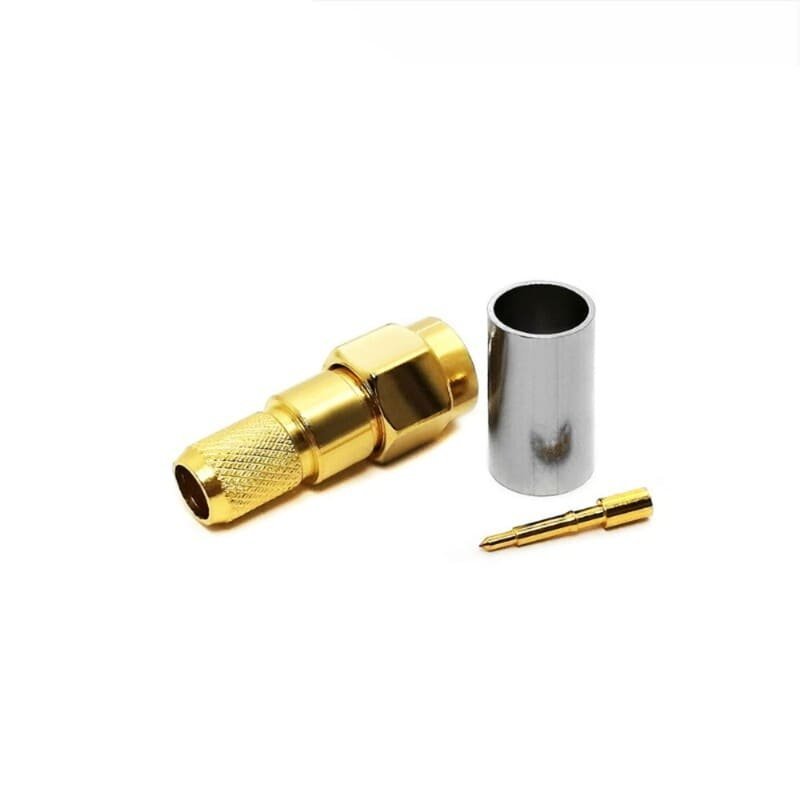

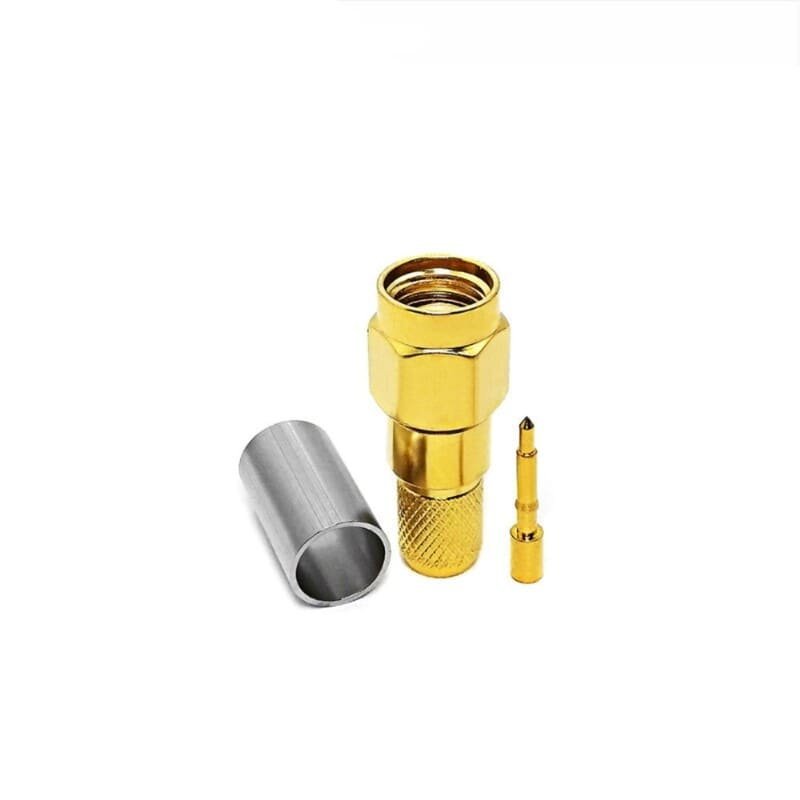

SMA M CRIMP for RG 59 Cable

Description

The SMA Male Crimp Connector for RG59 is a precision RF interface engineered for fast and secure field terminations. Unlike solder-only connectors, this crimp-style version uses a metal ferrule to create a 360-degree mechanical bond between the connector body and the cable’s outer shield. This design is preferred for high-vibration environments where a traditional solder joint might fatigue over time.

Precision Fit for RG59 Coaxial Systems

While RG59 is commonly associated with 75 Ohm video applications, these SMA connectors are precision-machined to provide a 50 Ohm impedance matching path for specialized RF equipment. The connector features a high-grade Teflon (PTFE) insulator to maintain dielectric stability and a gold-plated brass body to ensure low contact resistance and maximum corrosion protection.

Key Technical Advantages:

• Rugged Crimp Termination: Provides superior cable retention and pull-strength, ensuring the connector stays attached even under mechanical stress.

• Teflon (PTFE) Insulation: High-purity insulation prevents signal leakage and remains stable during temperature fluctuations.

• Optimized for 50 Ohm RF: Engineered to minimize VSWR and insertion loss in frequencies typically ranging from DC to 3 GHz (up to 12.4 GHz for premium variants).

• Secure Threaded Coupling: Features a standard 1/4-36 threaded coupling nut that prevents accidental decoupling in mobile or high-movement applications.

• Corrosion-Resistant Plating: The gold-over-brass finish ensures a long operational life and maintains a “clean” signal path for sensitive wireless receivers.

Recommended SMA Male Crimp Connectors

For professional-grade installations, consider these high-quality options compatible with RG59 cabling:

The MX SMA Male Connector Crimp Type is a premium choice featuring Teflon insulation for enhanced thermal and electrical stability. It includes a protective boot for added strain relief and is widely used in Wi-Fi and networking hardware due to its high-frequency performance and secure threaded coupling nut.For a more cost-effective solution, the Teleten SMA M RG 59 CRIMP offers a standard brass construction with a focus on ease of assembly. It is designed for standard RF and video applications where a reliable, semi-permanent crimped connection is required without the need for specialized high-end plating.

Technical Summary
