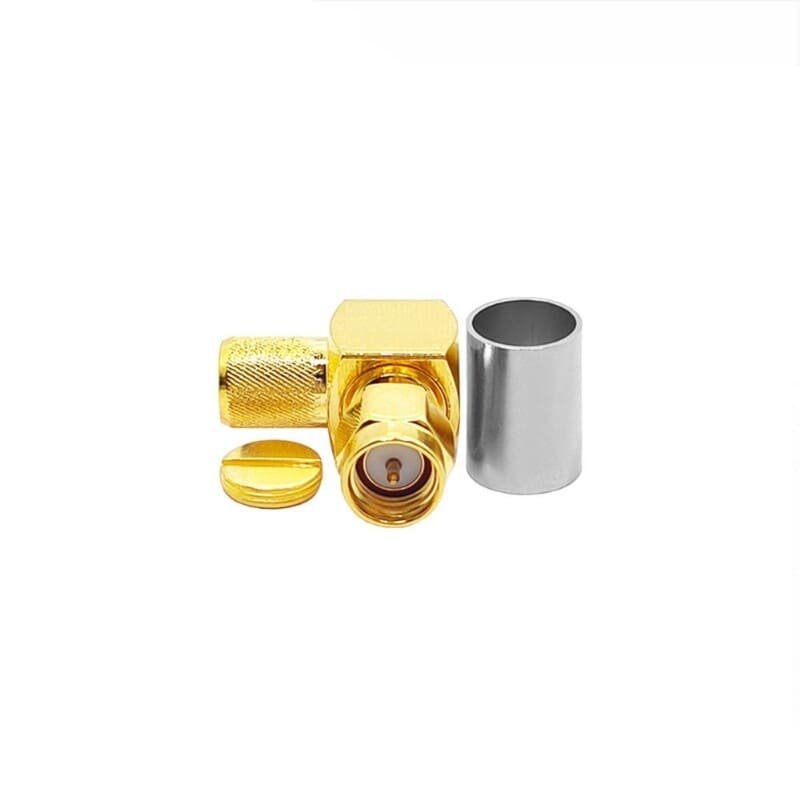

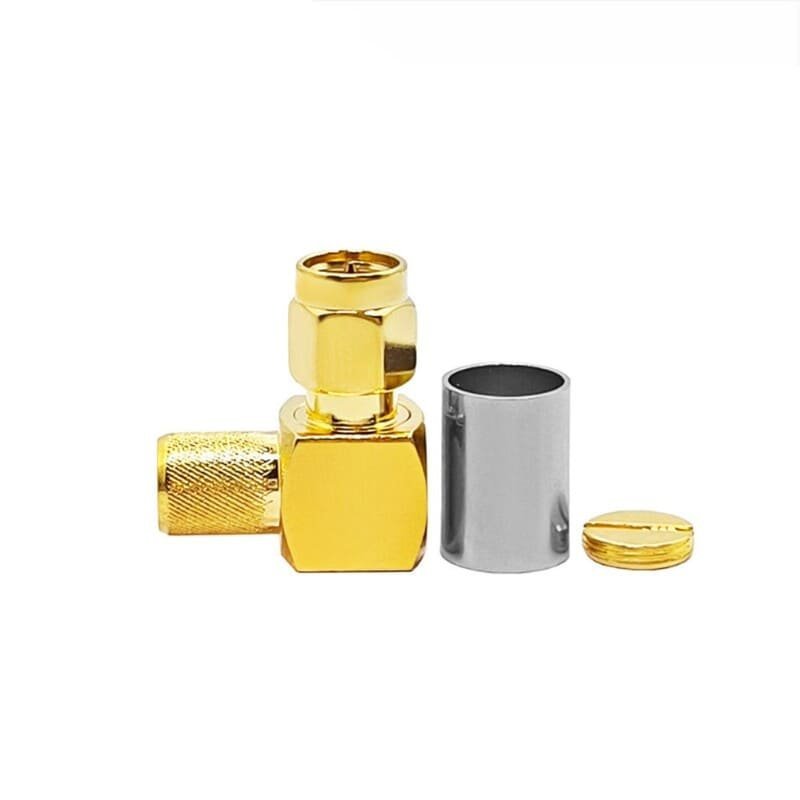

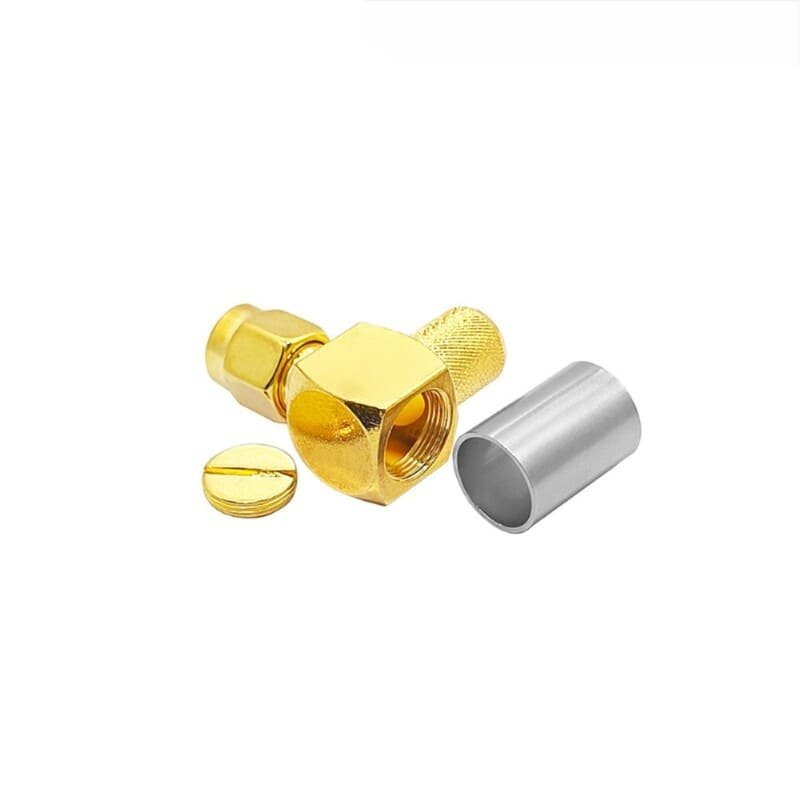

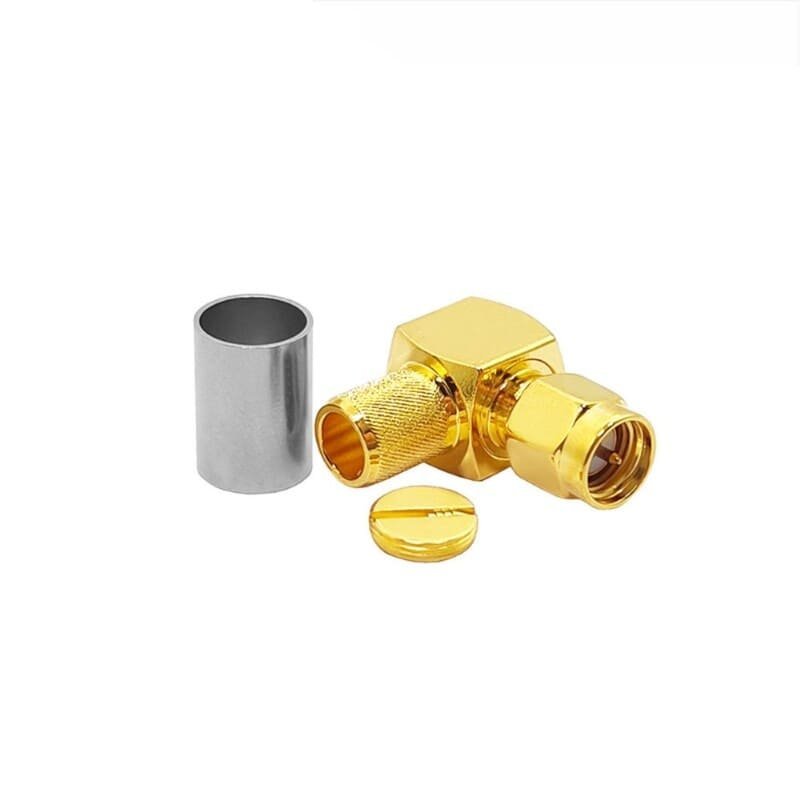

SMA M RA CRIMP for RG 59 Cable

Description

The SMA Male Right-Angle Crimp Connector for RG59 is a high-performance RF interface designed for efficient field termination. By utilizing a hex-crimp ferrule, this connector creates a permanent, 360-degree mechanical bond with the cable?s shield, offering superior pull-strength compared to twist-on alternatives.

The Right-Angle (90?) body is a critical design feature for compact enclosures, allowing the cable to exit parallel to the equipment panel. This significantly reduces the depth required for installation and prevents sharp bends in the coaxial cable that could otherwise lead to signal degradation or physical cable fatigue.

Key Technical Advantages

• Superior EMI/RFI Shielding: The 360? crimp ferrule ensures a continuous ground path, minimizing signal leakage and external interference.

• Low VSWR Performance: Precision-machined internal geometry maintains a consistent 50 Ohm impedance, ensuring high signal integrity up to 12.4 GHz.

• Enhanced Durability: Constructed from heavy-duty brass with gold plating, providing excellent corrosion resistance and over 500 mating cycles.

• Anti-Vibration Design: The threaded coupling nut and internal lock-washers ensure the connection remains stable even in high-vibration industrial settings.



Key Features

• 90? Right-Angle Orientation: Maximizes space efficiency in tight enclosures and prevents cable strain.

• Hex-Crimp Termination: Provides a fast, reliable, and high-strength attachment for RG59 coaxial cables.

• Teflon (PTFE) Insulator: Offers high-purity dielectric properties and exceptional thermal stability.



• Standard 1/4-36 Thread: Guaranteed compatibility with all standard SMA female (jack) interfaces.

• Gold-Plated Center Pin: Ensures maximum conductivity and low contact resistance for sensitive RF signals.



Technical Summary
