UHF Male to BNC Female Adapter

Description

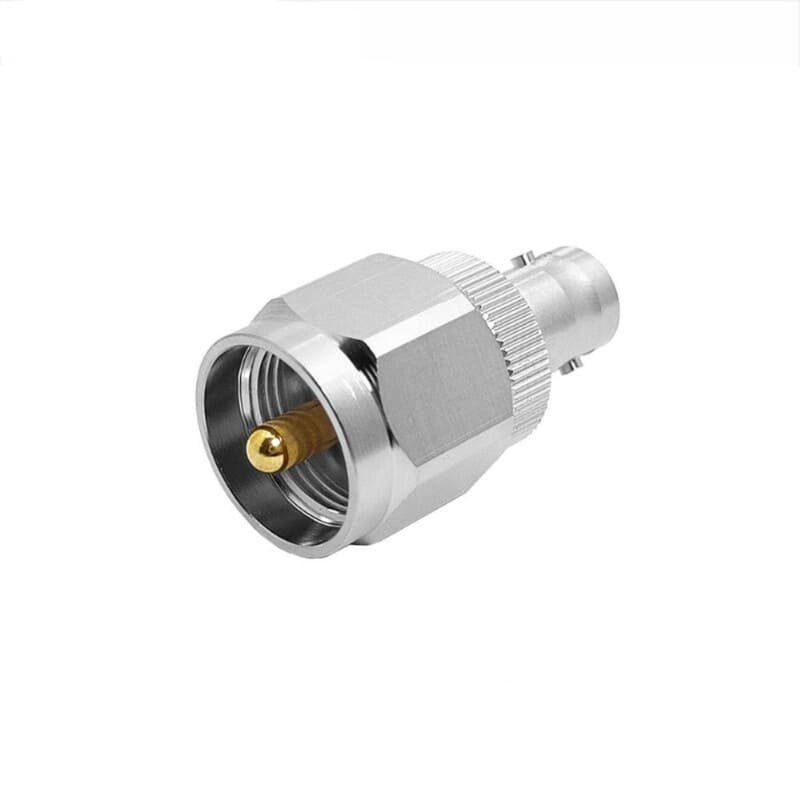

The UHF Male to BNC Female Adapter is a specialized “between-series” RF component designed to provide a high-reliability transition between the rugged, threaded UHF standard and the rapid-connect BNC interface. It features a UHF Plug (Male/PL-259) on one side, utilizing the classic large-format threaded coupling nut and center pin, and a BNC Jack (Female) on the other, featuring the dual-lug bayonet locking mechanism.

This adapter is indispensable for operators and technicians who need to connect BNC male cable assemblies-common on oscilloscopes, signal generators, and portable scanners-to UHF female ports (SO-239) found on high-power base stations, amplifiers, and mobile transceivers. While the UHF interface is a traditional choice for high-power HF/VHF applications, the BNC side provides a convenient, tool-less connection for modular test setups. Constructed with a heavy-duty nickel-plated brass body and PTFE (Teflon) insulation, it maintains reliable mechanical and electrical contact in both mobile and stationary environments.

Key Technical Advantages

• Cross-Series Integration: Enables the direct connection of modern BNC-terminated test leads and antennas to traditional UHF-based communication hardware.

• Rapid-Connect Versatility: The BNC female interface allows for high-speed, secure bayonet mating, perfect for environments where equipment is frequently swapped or reconfigured.

• Rugged Mechanical Stability: The solid brass construction and threaded UHF coupling nut are designed to handle the mechanical load of standard mobile and base station connections.

• Superior RF Shielding: The solid metal housing provides a continuous ground path, ensuring stable performance and protecting against signal leakage in high-power environments.

• Maximum Conductivity: High-purity gold or silver plating on the internal center contact pin and socket ensures ultra-low contact resistance and long-term protection against oxidation.

Key Features

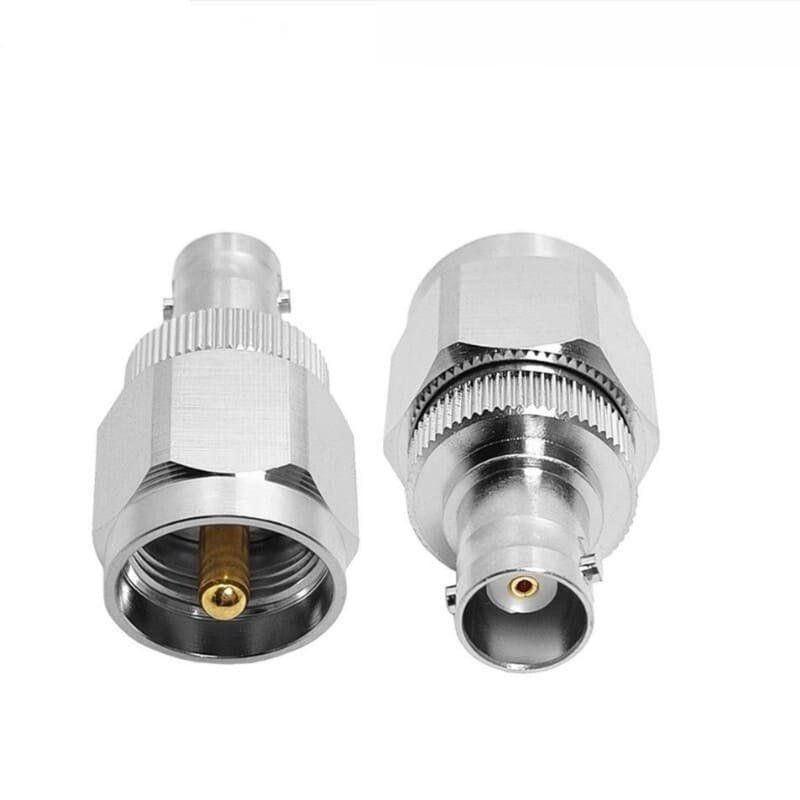

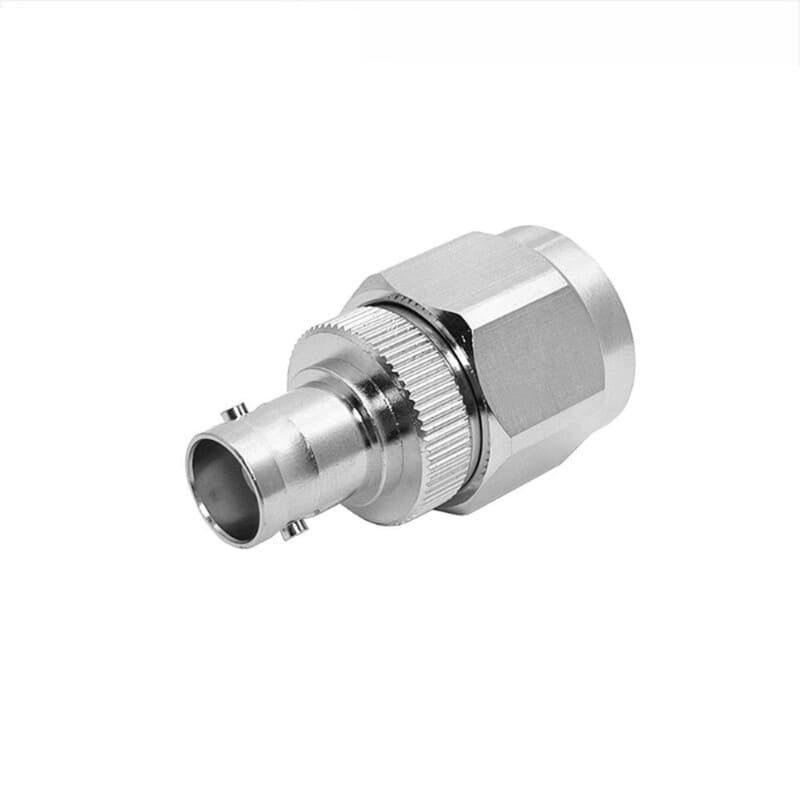

• UHF Male to BNC Female Interface: Consists of a UHF Plug (PL-259 with center pin and threaded nut) and a BNC Jack (female socket with bayonet lugs).

• Nickel-Plated Brass Body: Offers superior corrosion resistance and professional-grade durability for indoor and outdoor RF applications.

• Premium PTFE Dielectric: Provides high thermal stability and maintains consistent electrical performance across its operating range.

• Industrial Durability: Rated for at least 500 mating cycles, ensuring long-term reliability in laboratory, mobile, and field settings.

• Standard Compatibility: Fully compatible with all standard SO-239 (UHF Female) ports and BNC Male connectors.

🔹 Applications:

• RF connector conversion
• Video and CCTV systems
• Antenna connections
• Signal routing
• Communication setups
• RF testing
