Description

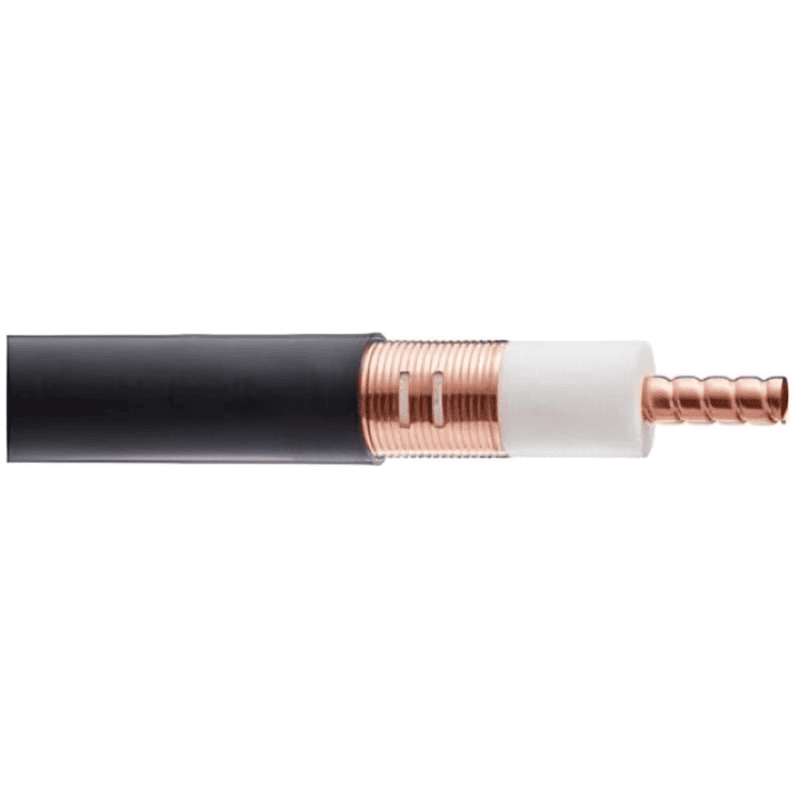

The 3/8″ radiating cable is a versatile “middle-ground” solution, providing significantly higher flexibility than larger 7/8″ or 1-1/4″ cables while offering better power handling and lower attenuation than 1/4″ variants. This cable uses a physically foamed Polyethylene (PE) dielectric and a slotted copper foil or corrugated copper outer conductor to create a consistent radiation pattern.
In environments like underground railways or mines, these cables eliminate the “dead zones” typical of point-source antennas. They are almost always jacketed in Low Smoke Zero Halogen (LSZH) or fire-retardant materials to meet safety standards for public and underground infrastructure. The slots are engineered to provide a specific coupling loss (the ratio between power inside the cable and power received by a mobile unit nearby), ensuring stable communication for emergency services and private networks alike.
Key Technical Advantages
-
Compact and Flexible: With a minimum single-bend radius of ~40mm, it is easily routed through tight curves and complex architectural layouts.
-
Wideband Capability: Efficiently supports a vast range of frequencies, from 150 MHz to over 6 GHz, covering public safety, cellular, and Wi-Fi bands.
-
Uniform Field Strength: Prevents signal spikes and drops, providing a steady “cylindrical” coverage zone that follows the cable path.
-
Passive Reliability: As a passive component, it requires no power supply along its length, making it highly durable and low-maintenance in harsh industrial or underground conditions.
-
Low Passive Intermodulation (PIM): High-quality construction ensures clean voice and data communication even in multi-channel systems.
Key Features
-
Impedance: 50 Ohm (±2 Ohm).
-
Outer Diameter (Jacket): ~11.2mm.
-
Outer Conductor: Slotted Copper Foil or Corrugated Copper.
-
Center Conductor: Copper-Clad Aluminum (CCA) or Solid Copper.
-
Fire Safety: LSZH / Flame-Retardant Jacket (Standard).
-
Applications: Mining, Subway Tunnels, Stairwells, and Aircraft Fuselages.
🔹 Applications:
- Compact tunnel communication systems
- Indoor signal distribution
- DAS and IBS systems
- RF signal coverage in confined spaces
- Industrial communication networks
- Wireless signal enhancement
