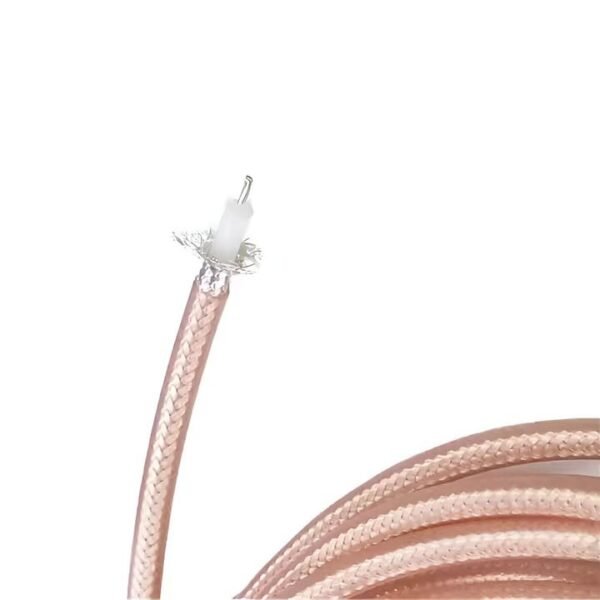

RG-179 DS Cable

Description

RG-179 DS is an enhanced version of the standard RG-179, specifically designed to provide superior shielding effectiveness. The “DS” designation indicates a Double Shielded construction, which typically consists of two layers of silver-plated copper braid. This dual-shielding system provides significantly higher RF isolation and lower signal leakage than single-shielded versions, making it indispensable for high-density equipment racks where signal cross-talk must be eliminated.

The cable is built around a silver-plated copper-clad steel (SPCCS) center conductor and a high-stability PTFE (Teflon) dielectric. This internal architecture ensures low attenuation and exceptional signal clarity for digital video and high-frequency data. Encased in a rugged FEP (Fluorinated Ethylene Propylene) jacket, the RG-179 DS maintains its electrical and mechanical integrity across a wide temperature range of -55°C to +200°C. It is the standard for high-performance internal video routing and is most commonly terminated with 75 Ohm BNC, DIN 1.0/2.3, or SMA connectors.

Key Technical Advantages

• Superior Double Shielding: Two layers of silver-plated braid offer exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI).

• Enhanced Signal Isolation: The double-shielded design minimizes signal egress (leakage), ensuring that high-speed digital signals do not interfere with adjacent cables in tight bundles.

• Exceptional Thermal Stability: The PTFE/FEP construction allows for reliable operation in high-heat environments where standard PVC-jacketed cables would fail.

• Silver-Plated Performance: The use of silver-plating on both shields and the center conductor maximizes conductivity and ensures long-term resistance to oxidation and corrosion.

• Sub-Miniature Precision: Maintains a small footprint for space-constrained applications while providing the performance characteristics of much larger professional video cables.

Key Features

• Cable Type: RG-179 DS (Double Shielded) Coaxial.

• Impedance: 75 Ohm.

• Center Conductor: 30 AWG (Stranded Silver-Plated Copper-Clad Steel).

• Shielding: Double Silver-Plated Copper Braid (Typically 90% coverage per layer).

• Dielectric: PTFE (Teflon).

• Common Applications: Professional HD-SDI video, medical imaging systems, high-interference telecommunications, and aerospace video displays.
