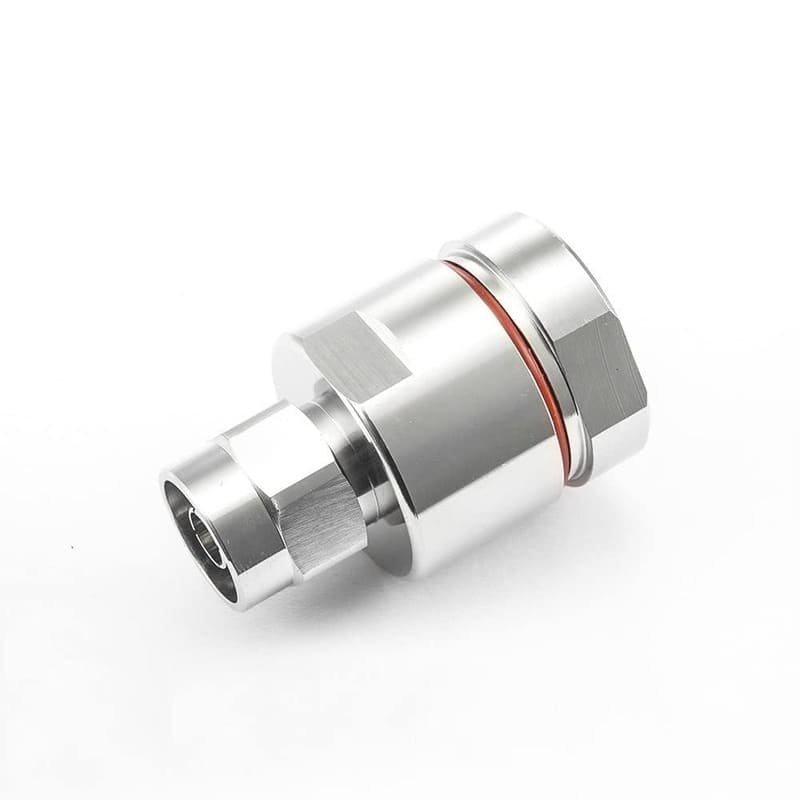

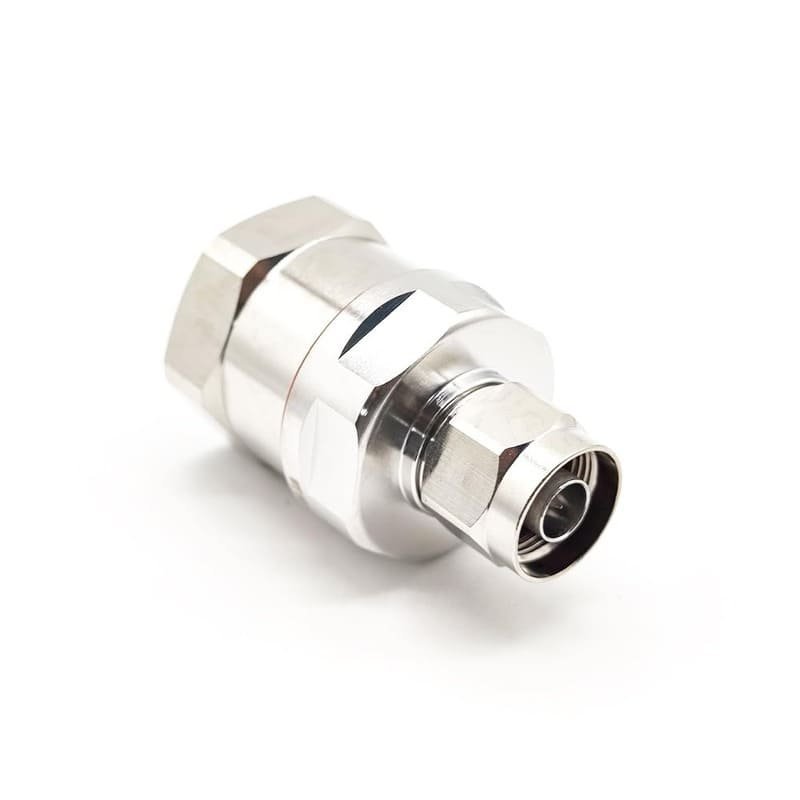

N M CLAMP for 7/8″ Al Feeder Cable

Description

The N-Type connector is the premier choice for infrastructure-grade RF applications, valued for its high power handling and environmental durability. This male (plug) variant is specialized for the 7/8″ Aluminum (Al) corrugated cable class. Aluminum feeder cables require specific connector engineering to manage the material’s unique properties, including its oxidation characteristics and thermal expansion rates. Unlike connectors for copper-only cables, this variant utilizes a mechanical compression clamp termination specifically optimized to maintain a gas-tight, low-resistance electrical bond with the corrugated aluminum outer conductor.

The clamp design is essential for field-serviceability on large-diameter cables, allowing for precision, high-strength terminations without the need for specialized hydraulic crimping tools. It provides a permanent mechanical seal that prevents the heavy cable from twisting or pulling out under extreme environmental stress or tower vibration. Manufactured with a reinforced tri-metal (Albaloy) plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 5 GHz. The integrated O-ring gaskets provide an IP68-rated moisture barrier, preventing galvanic corrosion at the aluminum interface and ensuring total reliability in exposed outdoor environments.

Key Technical Advantages

• Aluminum Feeder Optimization: Specifically engineered to provide a stable electrical and mechanical interface with 7/8″ corrugated aluminum, managing the surface oxide layer for superior conductivity.

• Low-PIM Performance: The precision-machined clamp interface minimizes non-linearities, a critical requirement for modern 5G, LTE, and multi-carrier cellular infrastructure to prevent signal interference.

• Field-Installable Design: The mechanical compression system allows for high-integrity assembly using standard wrenches, facilitating efficient on-site primary feeder termination and tower repairs.

• Rugged Environmental Sealing: Features multiple integrated gaskets and O-rings to provide a complete weather-proof seal, protecting the aluminum-to-brass junction from moisture ingress and corrosion.

• Vibration-Proof Threaded Interface: The 5/8-24 threaded coupling provides a secure mechanical lock with high torque capability, ensuring stable performance in high-wind and high-vibration outdoor environments.

Key Features

• Interface Type: N-Type Male (Plug) with standard 5/8-24 threaded coupling.

• Termination Method: Compression Clamp (Outer Conductor) / Solder or Captive (Center Pin).

• Cable Compatibility: Optimized for 7/8″ Annular Corrugated Aluminum Feeder Cables (AL5-50, AVA5-50AL, etc.).

• Premium Construction: Features a tri-metal plated brass body and high-performance PTFE dielectric.

• Common Application: Macro cell sites, aluminum-based cellular feeder lines, broadcast tower infrastructure, and long-range radar systems.

🔹 Applications:

• Lightweight feeder cable systems
• Telecom infrastructure
• Antenna connections
• RF transmission
• Outdoor installations
• Wireless networks
