SMA F SOLDER for RG .86 Cable

Description

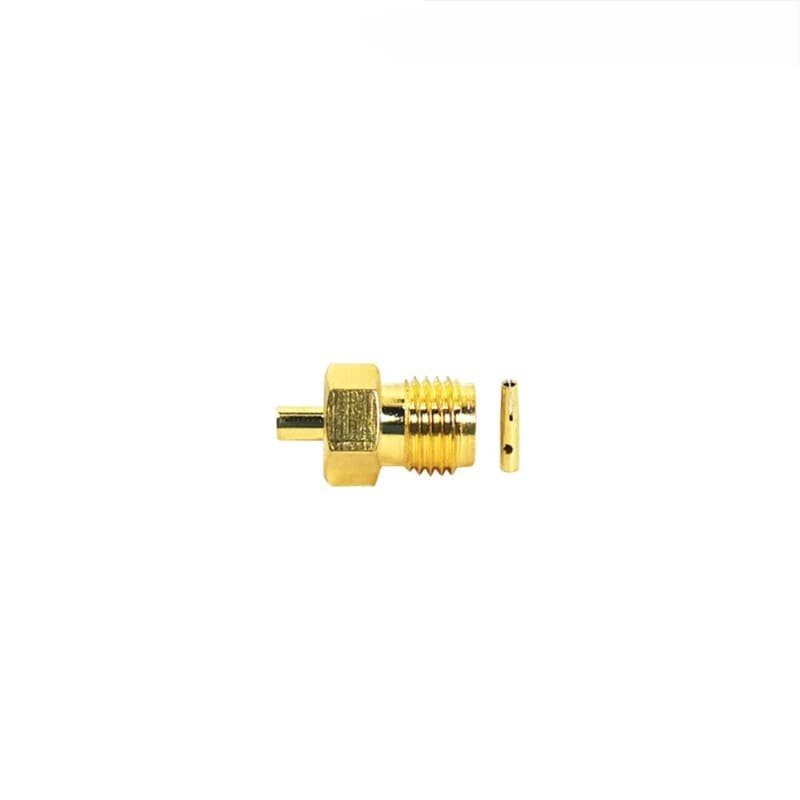

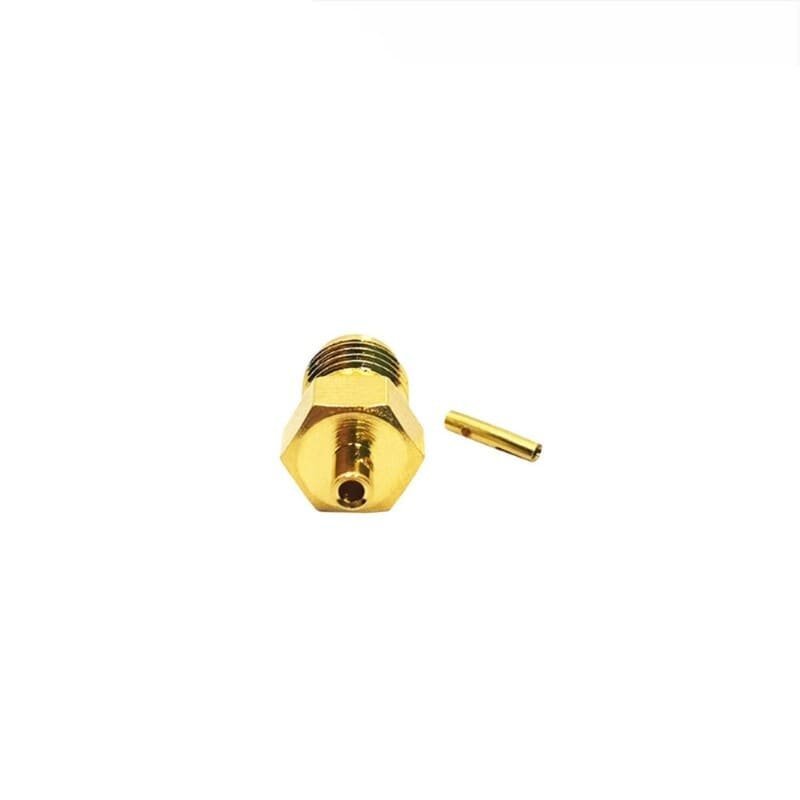

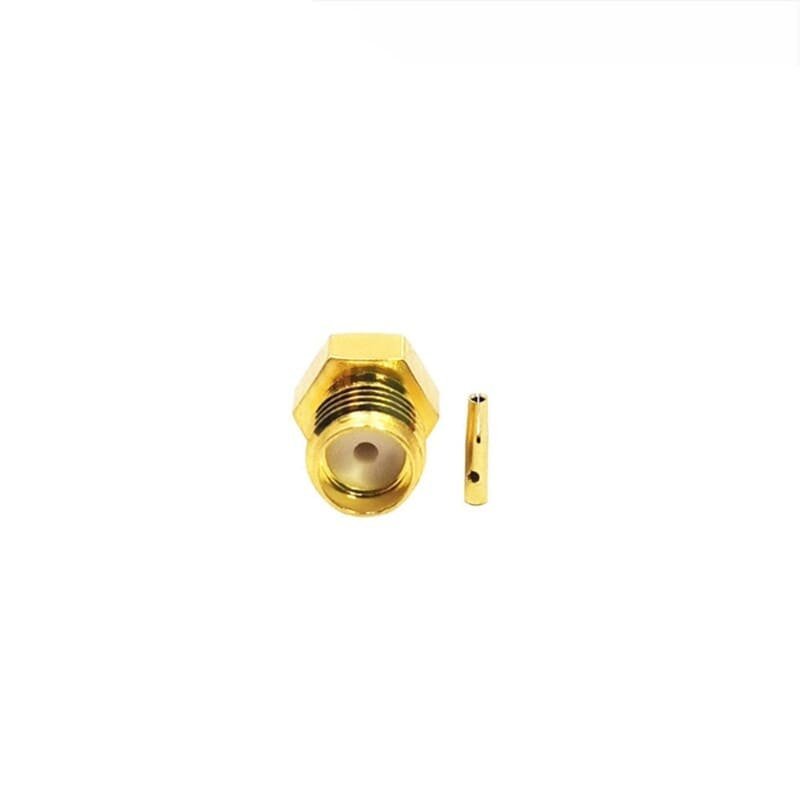

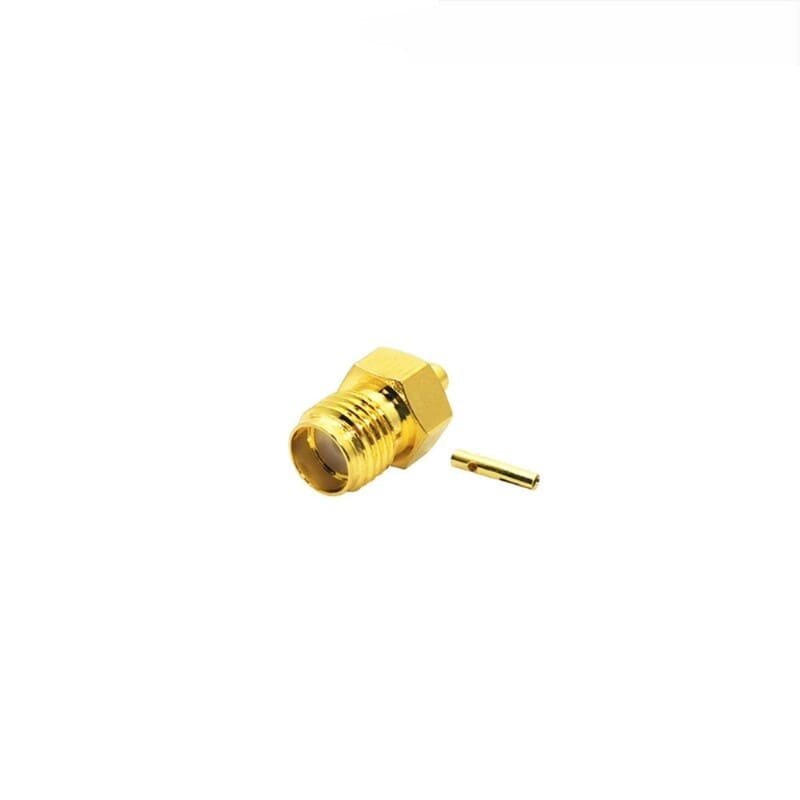

The SMA Female Solder Connector for RG.086 is a professional-grade RF component optimized for high-performance signal transmission. Because RG.086 (also known as RG405) features a solid silver-plated copper outer conductor, this connector utilizes a direct-solder body attachment.

The cable’s outer conductor is soldered 360 degrees directly to the connector body, creating a seamless, gas-tight mechanical and electrical bond. This method eliminates signal leakage and passive intermodulation (PIM) common in crimp-style alternatives. It is the industry standard for internal chassis wiring, RF modules, and laboratory test fixtures operating in the DC to 18 GHz range, where maintaining an ultra-low VSWR is critical.

Key Technical Advantages

• Superior RF Shielding: The 360? direct-solder transition provides essentially 100% EMI/RFI protection for sensitive signal paths.

• Ultra-Low VSWR: Precision-machined internal geometry maintains a strict 50 Ohm impedance, minimizing signal reflection even at microwave frequencies.

• Maximum Mechanical Integrity: The soldered joint ensures the connector remains stable under extreme thermal expansion and high-vibration conditions.

• Thermal Stability: Equipped with high-purity Teflon (PTFE) insulation to maintain electrical properties during the high-heat soldering process.

Key Features

• Direct-Solder Termination: Optimized specifically for the .086″ diameter of semi-rigid and hand-formable cables.

• Premium Materials: Constructed from gold-plated brass or stainless steel for maximum conductivity and corrosion resistance.

• Standard SMA Female Interface: Features internal threads and a gold-plated beryllium copper socket for universal compatibility.

• Broad Frequency Support: Reliably handles high-speed data and microwave signals from DC up to 18 GHz.

• Compact Form Factor: Ideal for high-density packaging within RF enclosures and modules.

Technical Summary
