3 WAY FEEDER CLAMP FOR 1/4″ FEEDER CABLE

Description

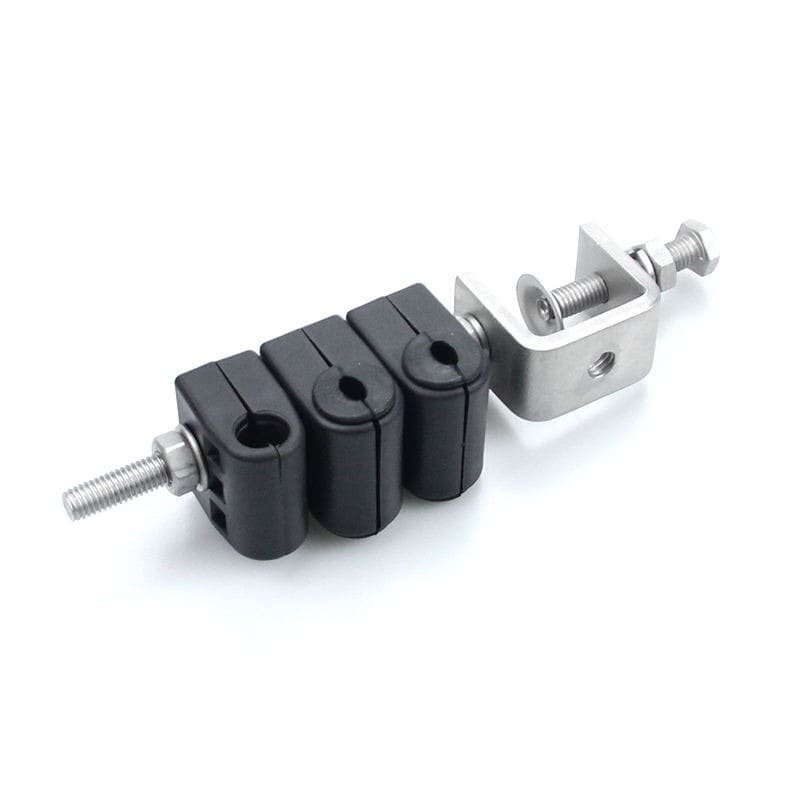

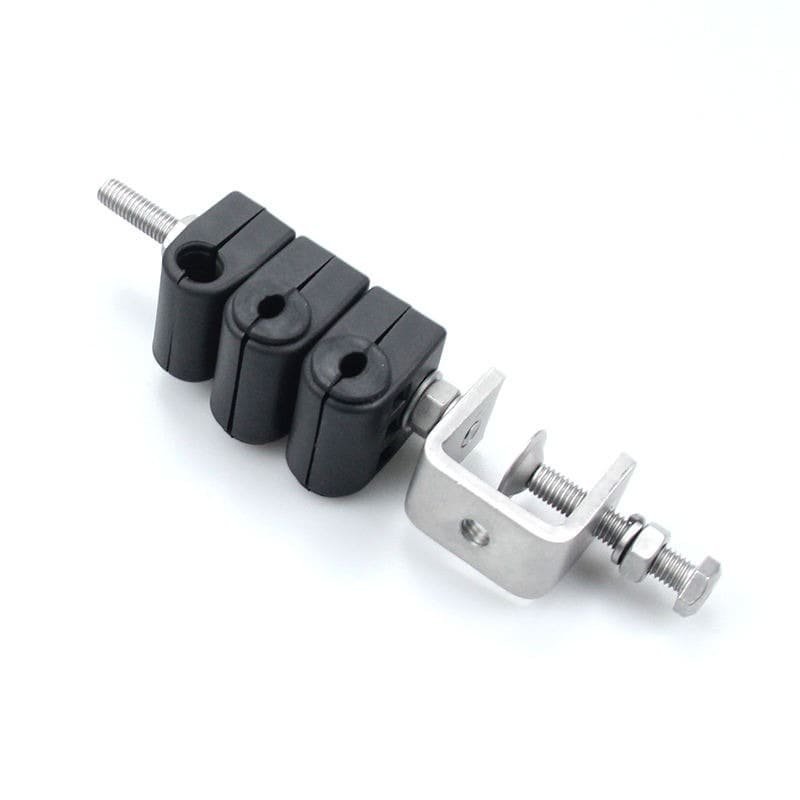

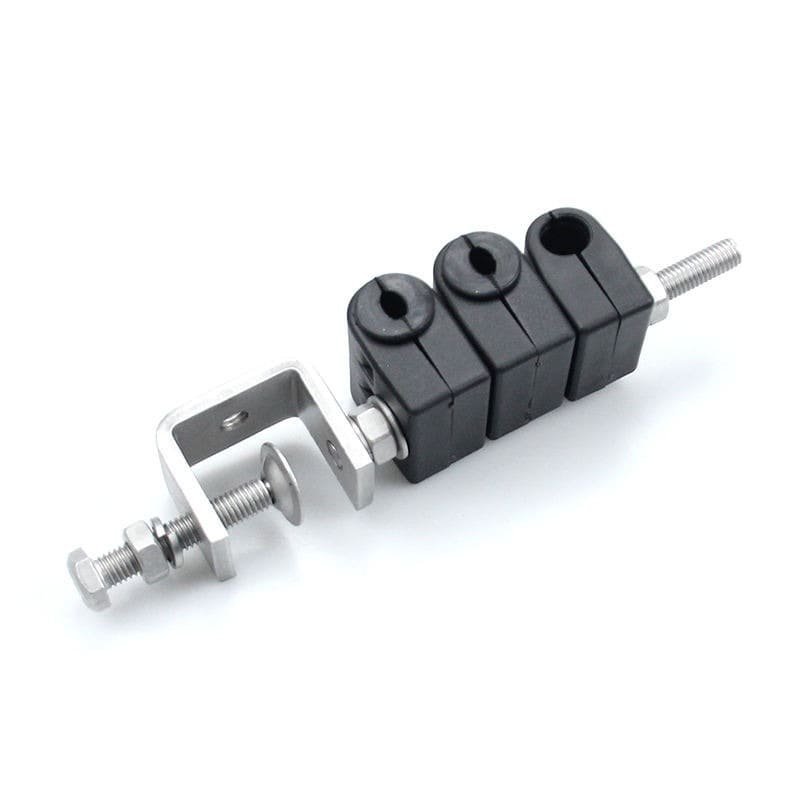

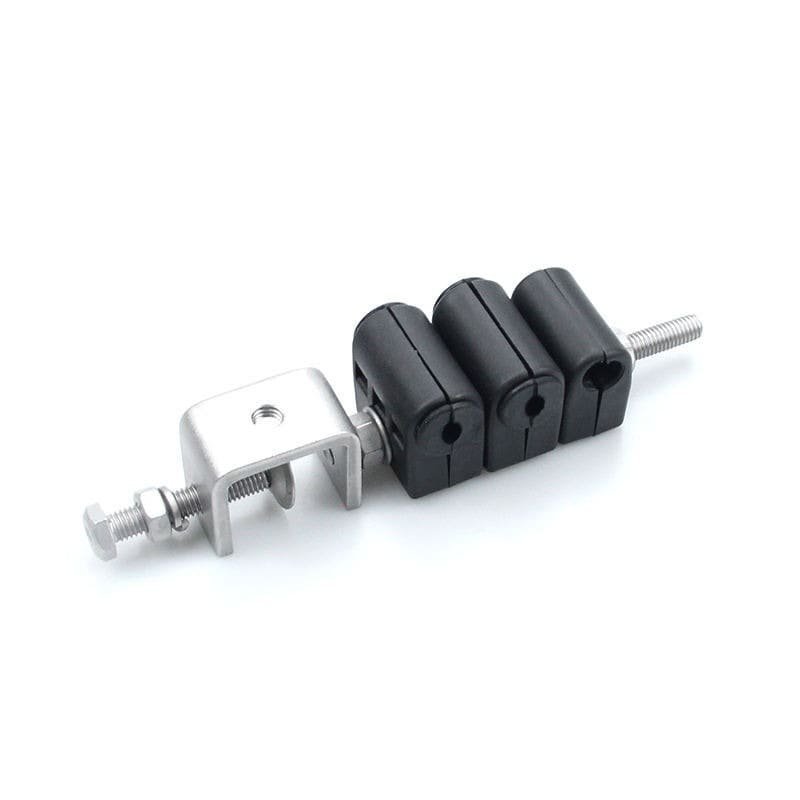

The 3-Way Feeder Clamp for 1/4″ Feeder Cable is a specialized hardware solution designed to provide maximum cable density and organization in space-constrained environments. It is specifically sized to accommodate the outer diameter of standard 1/4″ corrugated (annular) coaxial cables, such as FSJ1-50A or equivalent jumper cables. The assembly consists of three high-strength, UV-resistant polypropylene (PP) saddles secured within a rugged SUS304 stainless steel C-bracket.

This clamp is essential for modern wireless infrastructure, such as 3-sector small cell deployments and high-density indoor DAS, where triple-run signal paths must follow the same route. By providing a secure attachment point for three cables simultaneously, it prevents signal degradation caused by cable-on-cable friction and vibration-induced wear. The compact, triple-run design allows for clean, organized cable routing in tight spaces, such as inside monopoles or high-traffic rooftop sites. The high-grade stainless steel construction ensures long-term reliability and zero corrosion in both indoor and harsh outdoor settings.

Key Technical Advantages

• Triple-Run Efficiency: Secures three 1/4″ cables within a single footprint, significantly optimizing space on tower members, ladder rungs, and mounting brackets.

• Precision Small-Diameter Fit: The plastic hangers are molded to the specific geometry of 1/4″ corrugated cable, providing a firm grip that prevents slippage without deforming the outer conductor or dielectric.

• Superior Corrosion Resistance: All metallic hardware is manufactured from premium SUS304 stainless steel, offering maximum protection against oxidation, salt air, and chemical exposure.

• UV and Environmental Stability: The hanger inserts are formulated with advanced UV stabilizers to prevent embrittlement, ensuring the clamp remains flexible and strong under constant solar exposure.

• High-Density Organization: Simplifies the management of complex cable looms, reducing installation time and improving the overall mechanical safety of the cable run.

Key Features

• 3-Way Configuration: Engineered to support three independent 1/4″ feeder or jumper cable runs per clamp assembly.

• 1/4″ Feeder Compatibility: Optimized for standard 1/4″ corrugated cables (approx. 7.5mm – 9.0mm outside diameter), including super-flexible and fire-retardant versions.

• Heavy-Duty C-Bracket: A robust stainless steel frame that maintains constant tension and provides high resistance to wind and ice loading across all three positions.

• Comprehensive Hardware Kit: Includes three UV-resistant plastic saddles, a stainless C-bracket, a threaded bolt/rod, and all necessary lock washers and hex nuts.

• Modular Stackability: Features a stackable hanger design that supports vertical expansion, allowing for even more cable runs to be added to the same mounting hardware.

🔹 Applications:

• Small cable routing systems
• RF cable management
• Antenna setups
• Communication systems
• Signal routing
• Wireless infrastructure
