Description

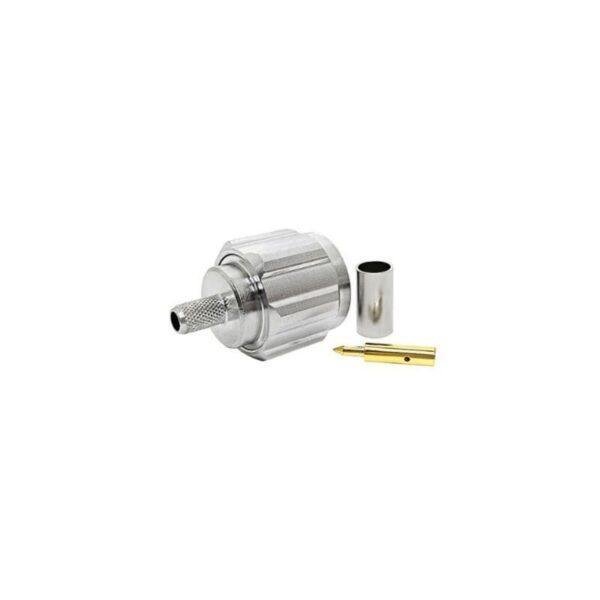

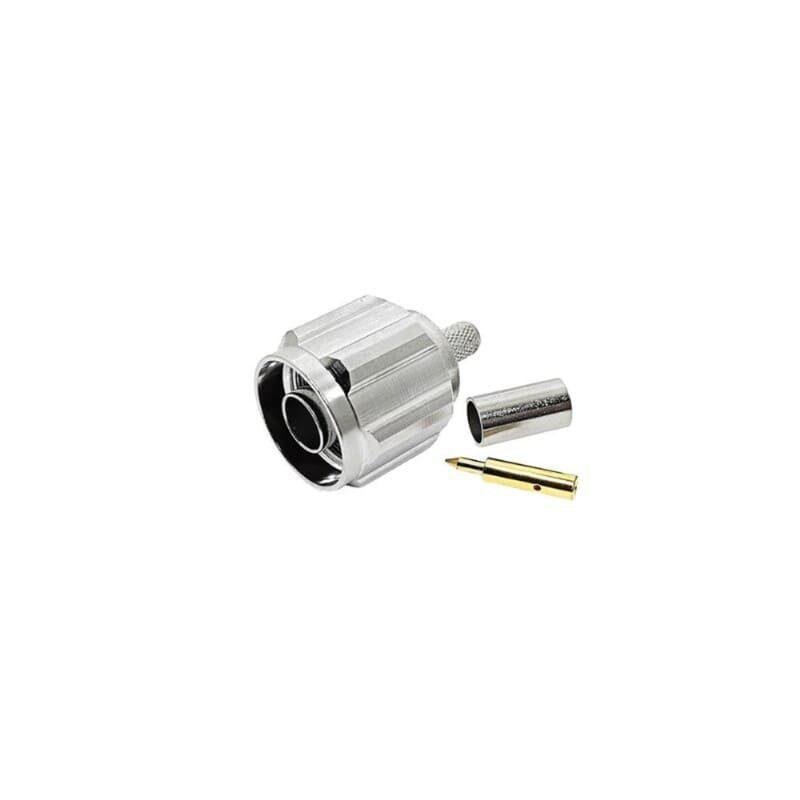

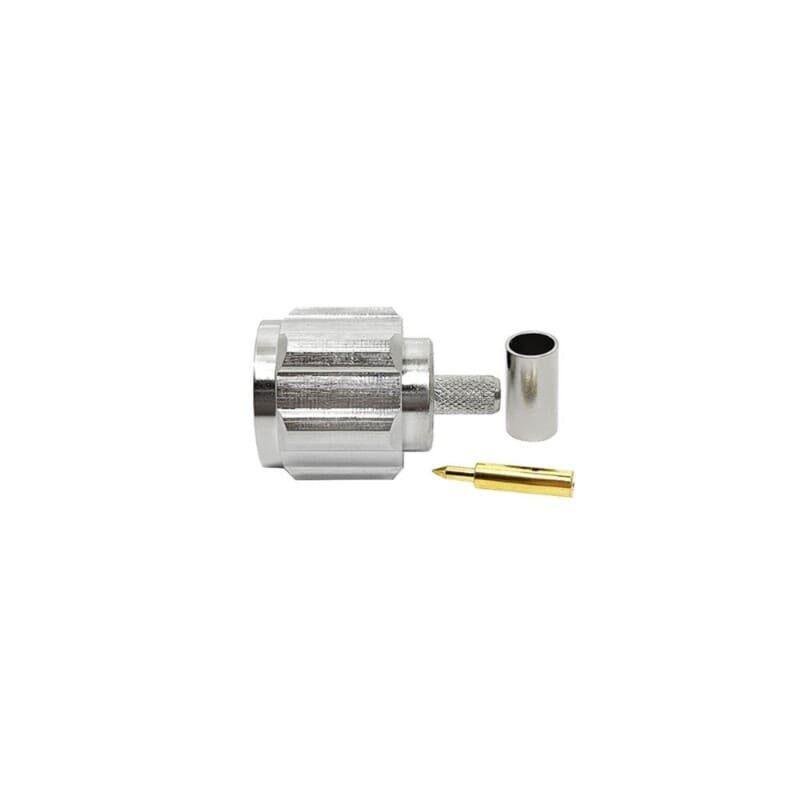

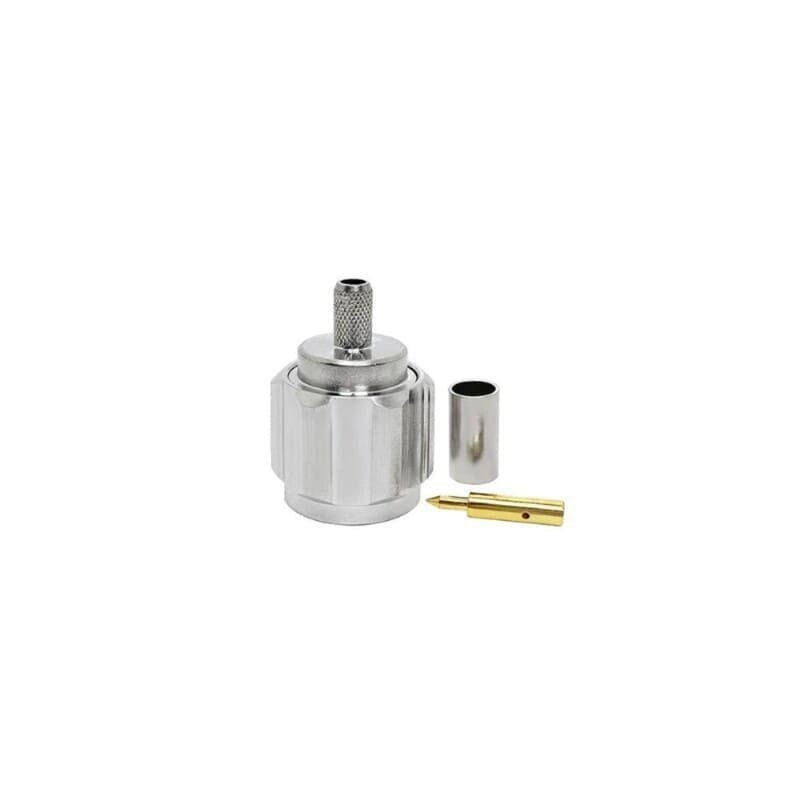

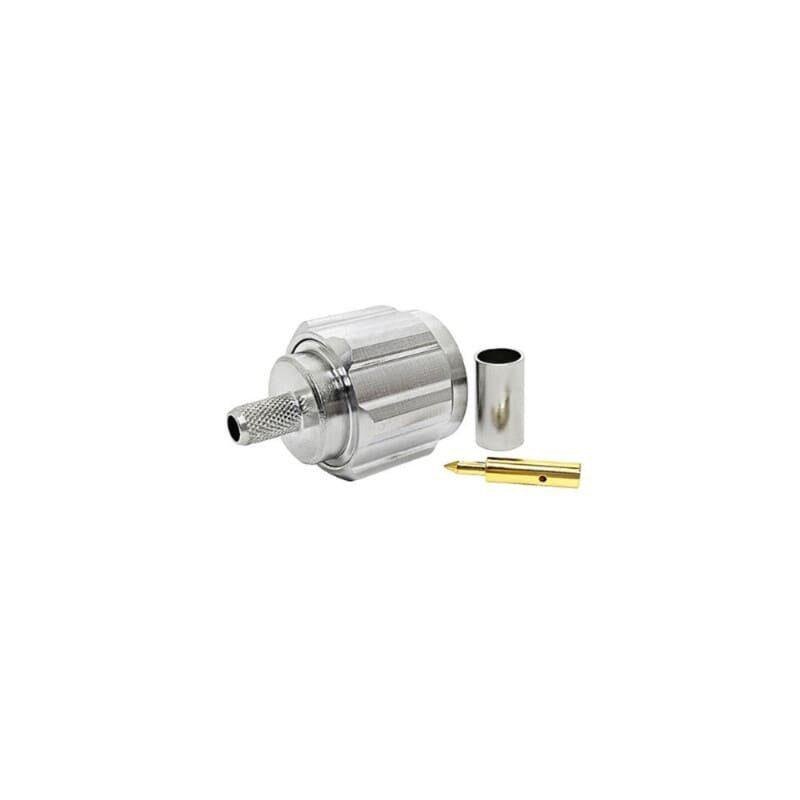

The N-Type connector is one of the most popular interfaces for microwave applications, known for its rugged design and excellent power-handling capabilities. This male (plug) variant is specialized for the 2.5mm to 2.8mm (0.100″ – 0.110″) micro-cable class, providing a precision fit for versatile cables such as standard RG174, high-temperature RG316, and low-loss LMR100. It provides a high-strength transition between small-diameter internal wiring and standard N-Type female equipment ports.
This connector utilizes a professional crimp termination system. The precision-machined outer ferrule provides a 360-degree mechanical bond with the cable’s shielding, while the internal center pin is typically soldered to the center conductor to ensure maximum signal integrity on small-gauge wires. Manufactured with a heavy-duty nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 6 GHz. The 5/8-24 threaded interface ensures a reliable, vibration-proof connection, making it a staple for telecommunications, medical electronics, and industrial telemetry.
Key Technical Advantages
-
Micro-Cable Precision Match: Specifically calibrated for the 0.100 to 0.110-inch OD cable family, ensuring an optimized electrical transition and high-strength pull-off resistance for thin coaxial lines.
-
Vibration-Proof Threaded Interface: The 5/8-24 threaded coupling provides a secure mechanical lock, preventing signal intermittent issues common in mobile, automotive, or high-shock industrial applications.
-
Stable Signal Integrity: Engineered to maintain consistent impedance and low insertion loss, supporting GPS, Wi-Fi, and various RF sensing applications.
-
Rugged 360° Crimp Termination: The precision ferrule provides a permanent, airtight grip on the cable jacket, protecting the delicate internal dielectric from moisture and mechanical stress.
-
Superior Material Build: Features a nickel-plated brass body for corrosion resistance and high-grade PTFE dielectric for excellent thermal stability and signal clarity.
Key Features
-
Interface Type: N-Type Male (Plug) with standard 5/8-24 threaded coupling.
-
Termination Method: Crimp (Outer Ferrule) / Solder (Center Pin).
-
Cable Compatibility: Optimized for LMR100, RG174, and RG316 coaxial cables.
-
Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.
-
Common Application: GPS antennas, internal wireless module wiring, medical telemetry, and RF test jumpers.
🔹 Applications:
- RF cable assemblies for flexible cables
- Wireless communication devices
- IoT and embedded systems
- Antenna connections
- Signal routing
- RF transmission
