Description

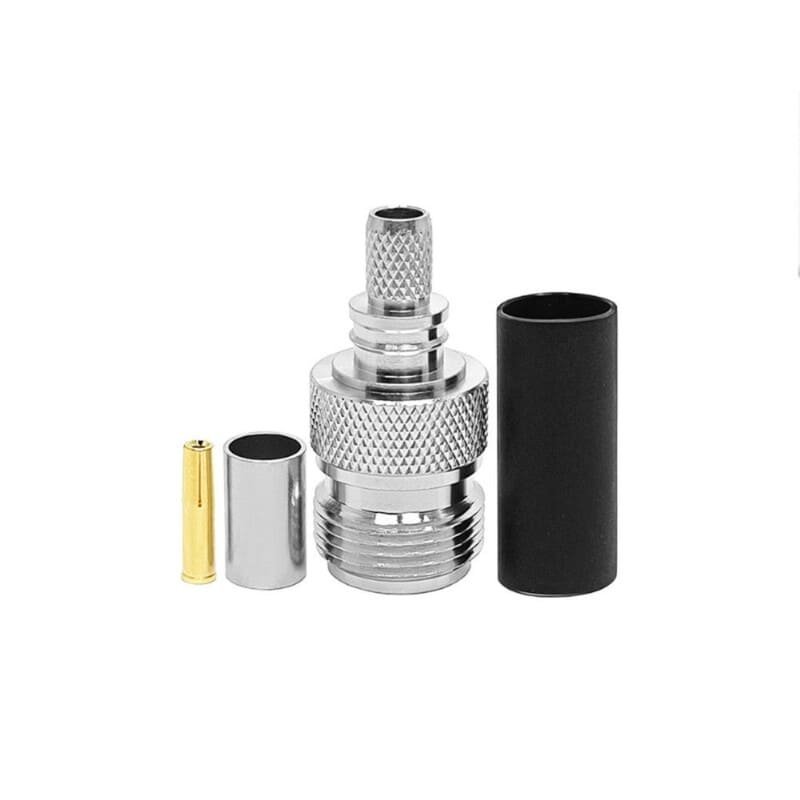

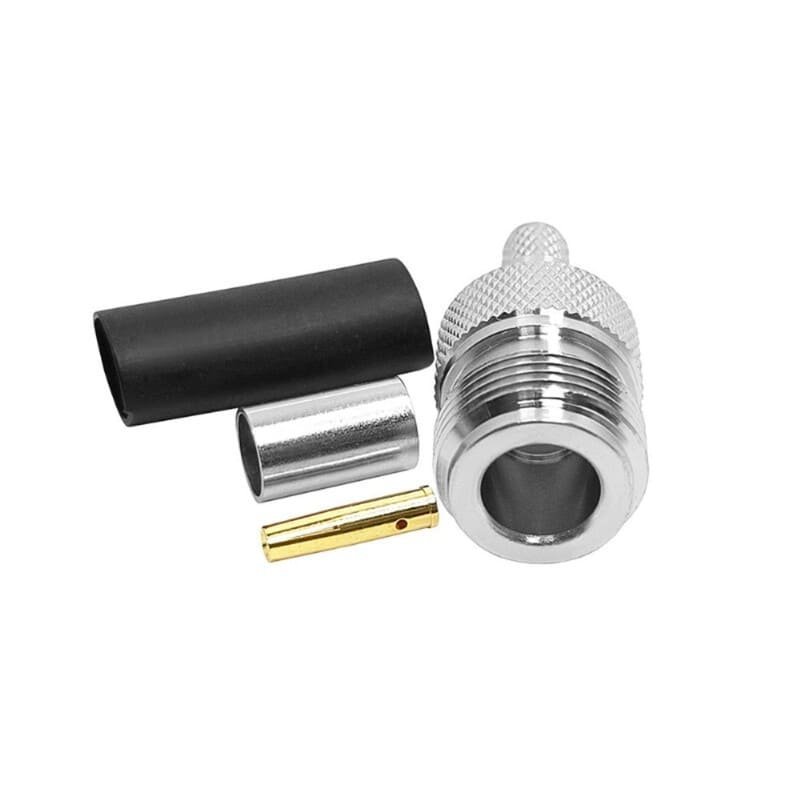

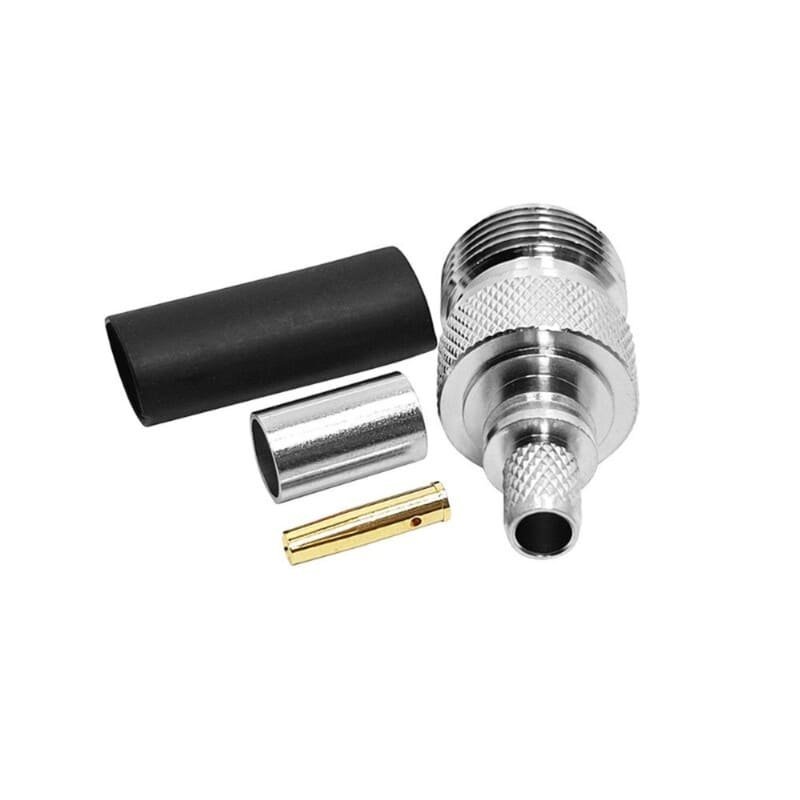

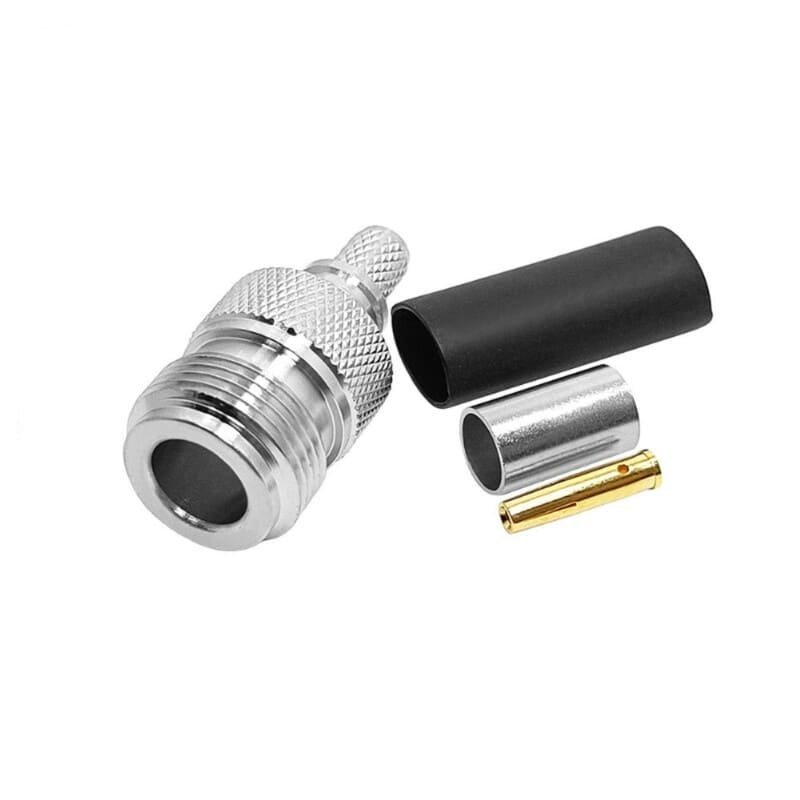

The N-Type female connector is a fundamental component for high-reliability RF systems, prized for its mechanical strength and stable electrical performance. This variant is specialized for the 6.1mm (0.240″) cable class, specifically optimized for high-performance LMR240. As a female interface (jack), it provides a rugged threaded mounting point for enclosures or acts as the receptacle side of high-efficiency jumper assemblies used in cellular and WLAN deployments.
This connector utilizes a standard hex-crimp termination system for the outer conductor. This provides a high-strength, 360-degree mechanical bond that is highly resistant to pull-off and vibration, making it ideal for both mobile and fixed outdoor environments. Manufactured with a durable nickel-plated brass body and premium PTFE (Teflon) insulation, it delivers consistent 50-Ohm performance and low VSWR up to 11 GHz. The internal center contact is precision-machined to ensure a secure, low-resistance mating cycle with N-Type male plugs, maintaining signal integrity over the life of the installation.
Key Technical Advantages
-
LMR240 Precision Match: Specifically calibrated for the 0.240-inch OD cable family, ensuring a seamless mechanical fit and optimized electrical transition for high-performance, mid-sized coaxial lines.
-
Panel-Mount Versatility: Ideal for bulkhead or enclosure configurations, providing a professional external interface for sensitive internal RF components.
-
Secure Crimp Termination: The hex-crimp sleeve provides a robust mechanical grip on the cable braid, offering excellent strain relief and maximum EMI/RFI shielding.
-
Vibration-Proof Threaded Interface: The 5/8-24 threaded outer shell ensures a secure, locked mating with male connectors that resists loosening in high-vibration or outdoor environments.
-
High-Grade Materials: Features a nickel-plated brass body and a gold-plated center contact for maximum corrosion resistance and stable signal clarity.
Key Features
-
Interface Type: N-Type Female (Jack) with standard 5/8-24 threaded outer shell.
-
Termination Method: Crimp (Outer Braid) / Solder (Center Pin).
-
Cable Compatibility: Optimized for LMR240 and equivalent 0.240″ 50-Ohm coaxial cables.
-
Premium Construction: Features a nickel-plated brass body and high-performance PTFE dielectric.
-
Common Application: WLAN antenna arrays, cellular boosters, GPS systems, and industrial RF equipment panels.
🔹 Applications:
- Medium power RF systems
- Telecom and antenna connections
- RF signal routing
- Wireless communication
- Test setups
- Communication systems
